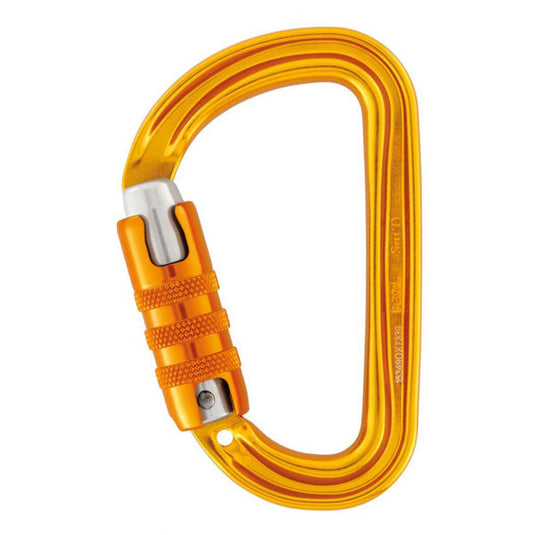

The compact SmD asymmetrical aluminum carabiner is recommended for workers at height looking to reduce weight to a minimum. D shape makes it especially suitable for attaching devices. It is available in two locking systems (automatic TRIACT-LOCK system or manual SCREW-LOCK system), or without a locking system.
Features
- D shape is especially suitable for attaching devices
- Compact aluminum carabiner, for workers at height looking to reduce weight to a minimum
Easier handling:
- Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
- Keylock system to avoid any involuntary snagging of the carabiner
H cross-section:
- Ensures an optimal strength/weight ratio
- Protects markings from abrasion
- Hole for connecting TIBLOC or MICRO TRAXION type devices, limiting the risk of losing them
Two locking systems available:
- TRIACT-LOCK: automatic locking with triple-action gate opening
- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
- Available without locking system, for easy clipping during progression using climbing techniques
Product Specifications
| Product # | M39A TL |
| Product Name | SmD |
| Width | 3.15 in |
| Length | 5.08 in |
| Height | 0.79 in |
| Weight | 0.17 lb |
| Material | Aluminum |
| Locking System | TRIACT |
| Minor Axis Strength | 8 Kn |
| Major Axis Strength | 23 Kn |
| Gate Opening | 18 mm |
| Open Gate Strength | 7 Kn |
| Certifications | CE EN 362, CE EN 12275 type B, EAC / CE EN 362, CE EN 12275 type B, EAC / CE EN 12275 type B |
