Orders for this product usually ship in 7-14 business days.

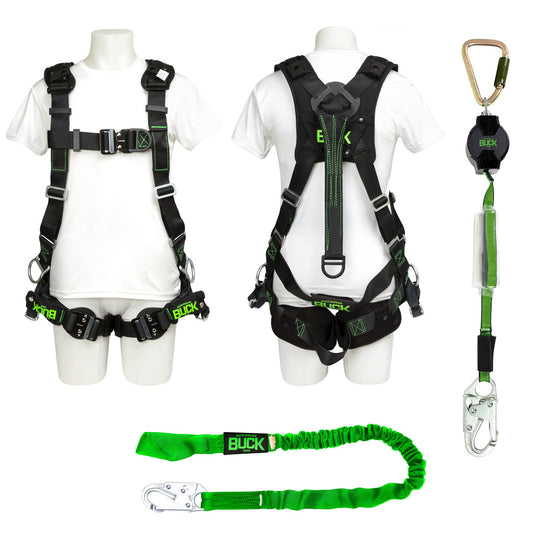

A kit designed to ensure the safety of all climbers. You now have the unique value of Buckingham’s new TrueFit™ Harness paired with two of popular fall protection devices.
Features all your fall protection needs:
- Truefit Harness w/ standard hardware(U68E7FQ1)
- This universal TrueFit™ harness is equipped with all original hardware and features quick connect buckles for easier donning, padded shoulder and leg pads, a pigtail(18" in length) for attachment purposes and dual BUCKSTEP™ for trauma suspension relief.
- 6 ft Mini BUCKLIMITER™(6009-64DV)
- Buckingham’s popular BuckLimiter™ has a new look and size! This new 6’ Mini BuckLimiter™ gives you all the convenience of the original BuckLimiter™ in a smaller, compact, and lightweight design.
- 4 ft BUCKYARD™ w/ 1 snap(84V114S1)
- Features a locking snaphook on one end and a web loop on the other end
Maximum deployment of 48”
Product Specifications:
| Product Number: | 6009-64DV |
| Product Name: | Mini BuckLimiter™ |
| Housing Type: | Aluminum |
| Housing Height: | 5" |
| Housing Width: | 3" |
| Material: | 3/4" Dyneema |
| Retractable Length: | 6 |
| Connector / Housing: | Steel Triple Action Carabiner - 50051 |
| Connector / Webbing: | Steel Locking Snaphook - 1706 |
| Product Type: | Fall Arrest |
| User Weight Capacity: | 350 lbs; Class A&B rating |
| Weight: | 2 lbs. |
| Standards: | ANSI Z359.1 |
| Product Number: | 84V116S1/84V1D16S1 |
| Product Name: | BuckYard™ |
| Overall Length: | 4/4.5/6 |
| Number of Legs: | 1 |
| Connector Type: | Locking Snaphook & Web Loop |
| Connector Material: | Steel /Nylon Loop |
| Material Type: | Nylon Web |
| Adjustable?: | No |
| Adjustment Type: | N/A |
| Maximum Elongation: | 48" |
| Maximum Free Fall: | 6 |
| Average Arresting Force: | 900 lbs. |
| Red Wear Center?: | No |
| Weight: | 1.3 lbs. |
| User Weight Capacity: | 350 lbs. |
| Product Type: | Fall Arrest / Fall Restriction |
| Standards: | ANSI Z359.13, ASTM F887, CSA Z259.11 |
| Model Number | U68E7FQ1 |
| Product Name | Truefit Harness w/ Standard Hardware |
| Material | Nylon |
| Chest Strap | Interlocking Buckle |
| Leg Strap | Interlocking Buckle |
| Thread Stitching | Nylon |
| Torso Adjustment | Yes |
| Dorsal Attachment | Pigtail |
| Shoulder/Leg Pads | Yes |
| Shoulder/Leg Pad Type | FR |
| Harness Type | H |
| Frontal Attachments | Yes - Sternal D-ring |
| Retrieval Attachments | No |
| Other Attachments | Dual BuckStep Trauma Straps |
| Size | Universal |
| Positioning D-rings | Yes |
| Body Belt attachment | No |
| Product Type | Fall Arrest / Fall Restraint |
| User Weight Capacity | *Rated to 420 lbs. when used with equivalently rated accessories. |
| Weight | 5.5 lbs |
| Standards | ASTM F887, ANSI Z359, OSHA 1926.954(b)(1)(ii) |
Instructions & Warnings:
Buckyard™ Instructions & Warnings
BuckLimiter Instructions & Warnings
Suspension Trauma Rescue System Instructions
Locking Snaphook Inspection Procedure
Harness Retrofit Pad Attachment Instructions & Warnings
