FAST Rope
FAST Rope

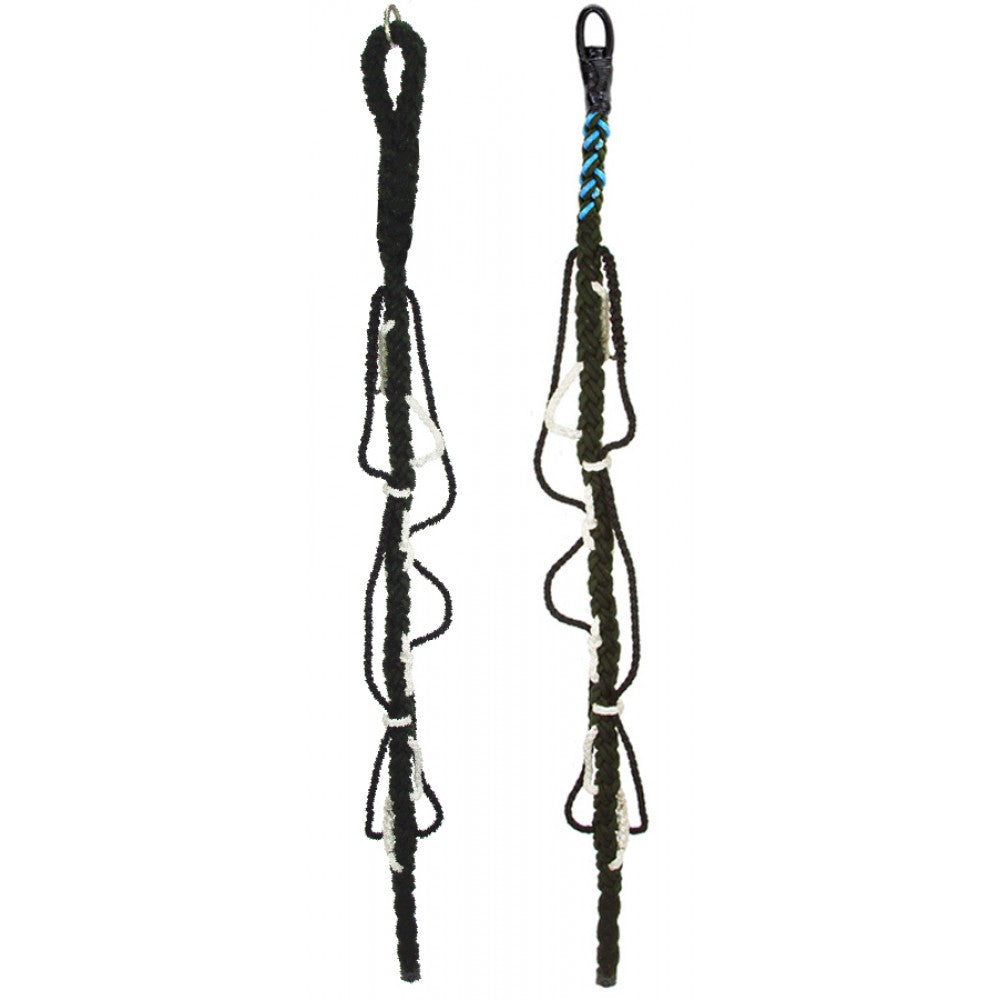

Fast Rope Insertion & Extraction Systems provide efficient and safe methods for inserting and evacuating personnel to and from specific targets. Fast Ropes are available in several stock variations and can be finished with or without the FRIES (Fast Rope Insertion/ Extraction System) loops. Our ropes offer two distinct termination ends ABLE Termination and Soft Eye splice termination with Steel Ring added. FAST ropes are whipped and heat-sealed on the bottom. Soft Eye top Termination comes with a steel ring in the line so that the line may be hooked to the davits that are found on certain helicopters. The eye splice is the strongest and safest method of terminating this line. It develops approximately 85% of the break strength of the line. Fast Rope strength 30,000 lbf. FRIES attachment strength 10,000 lbf. Rated strength of ABLE Termination 15,000 lbf.
Construction: 1.75 inch (44mm) diameter made from Low stretch nylon fibers with an 8 braid construction to reduce rope kinking and afford fast, fully controlled, and safe descents.
All Fast Ropes are made in accordance with military specification fiber rope assembly, insertion/extraction number Mil-F-44422.

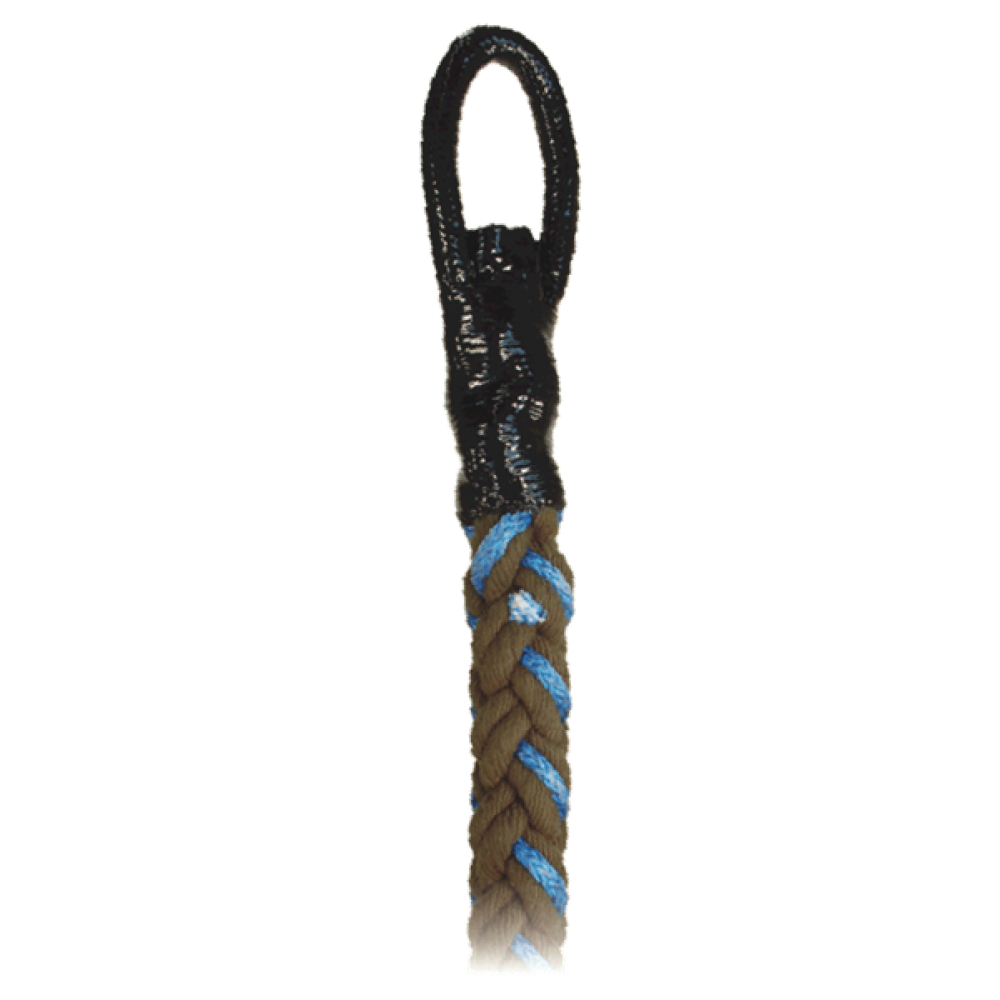

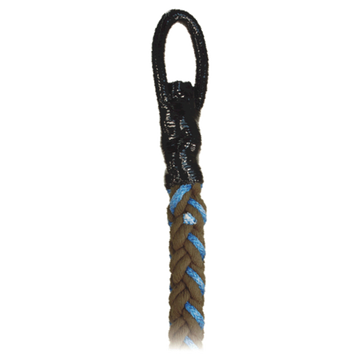

ABLE Termination - Am-Steel Blue Loop Eye Fast Rope Termination is very short in profile and is designed to be compatible with Fast Rope rappel devices. Designed to be used on Black Hawk FAST rope Hookup/Release Bar with out need of an additional steel ring. Rated strength of ABLE Termination 15,000 lbf. ABLE TERMINATION is not standard on FAST Ropes as a Termination and must be specified when ordering.
| SKU | VSG Description | NSN |
|---|---|---|
| 1710-ABLE | 10' Fast rope with ABLE termination | |
| 1710-FRIES | 10' Fast rope with FRIES Termination | |
| 1710-FRIESABLE | 10' Fast rope with FRIES and Able Termination | |
| 1710-SS | 10' Fast rope with Soft eye and steel ring termination | |
| 1720-ABLE | 20' Fast rope with ABLE termination | |
| 1720-FRIES | 20' Fast rope with Soft Eye and Alloy Ring and FRIES LOOPS | |
| 1720-FRIESABLE | 20' Fast rope with ABLE termination and FRIES LOOPS | |
| 1720-SS | 20' Fast rope with Soft eye and alloy ring | |
| 1730-ABLE | 30ft Fast rope with ABLE termination | 4020016273674 |
| 1730-FRIES | 30ft Fast rope with FRIES END, Soft Eye and Steel Ring | |
| 1730-FRIESABLE | 30ft Fast rope with FRIES END, ABLE Termination | |
| 1730-SS | 30ft Fast Rope with Soft Eye and Steel ring | |
| 1740-FRIESABLE | 40' Fast rope with ABLE termination and FRIES LOOPS | |
| 1740-FRIES | 40' Fast rope with Soft Eye and Alloy Ring and FRIES LOOPS | |
| 1750-ABLE | 50' Fast rope with ABLE termination | |
| 1750-FRIESABLE | 50' Fast rope with ABLE termination and FRIES LOOPS | |
| 1750-FRIES | 50' Fast rope with Soft Eye and Alloy Ring and FRIES LOOPS | |
| 1750-SS | 50' Fast rope with Soft eye and alloy ring | |
| 1760-ABLE | 60ft Fast rope with ABLE termination | |
| 1760-FRIES | 60ft Fast rope with FRIES END, Soft Eye and Steel Ring | 4020016175935 |
| 1760-FRIESABLE | 60ft Fast rope with FRIES END, ABLE Termination | |
| 1760-SS | 60ft Fast rope with Soft Eye and Steel ring | |
| 1790-ABLE | 90ft Fast rope with ABLE termination | |
| 1790-FRIES | 90' Fast Rope with FRIES End, soft eye and steel ring | 4020016175832 |
| 1790-FRIESABLE | 90ft Fast rope with FRIES END, ABLE Termination | |
| 1790-SS | 90ft Fast rope with Soft Eye and Steel ring | |
| 17100-ABLE | 100' Fast rope with ABLE termination | |
| 17100-FRIES | 100' Fast rope with Soft Eye and Alloy Ring and FRIES LOOPS | |
| 17100-FRIESABLE | 100' Fast rope with ABLE termination and FRIES LOOPS | |
| 17100-SS | 100' Fast rope with Soft eye and alloy ring | |
| 17120-ABLE | 120ft Fast rope with ABLE termination | |
| 17120-FRIES | 120ft Fast rope with FRIES END, Soft Eye and Steel Ring | 4020013383309 |
| 17120-FRIESABLE | 120ft Fast rope with FRIES END, ABLE Termination | |
| 17120-SS | 120ft Fast rope with Soft Eye and Steel ring | |
| 17150-ABLE | 150ft Fast rope with ABLE termination | |
| 17150-FRIES | 150ft Fast rope with FRIES END, Soft Eye and Steel Ring | |
| 17150-FRIESABLE | 150ft Fast rope with FRIES END, ABLE Termination | |
| 17150-SS | 150ft Fast rope with Soft Eye and Steel ring |
Technical specifications
- Origin: Made in the USA
