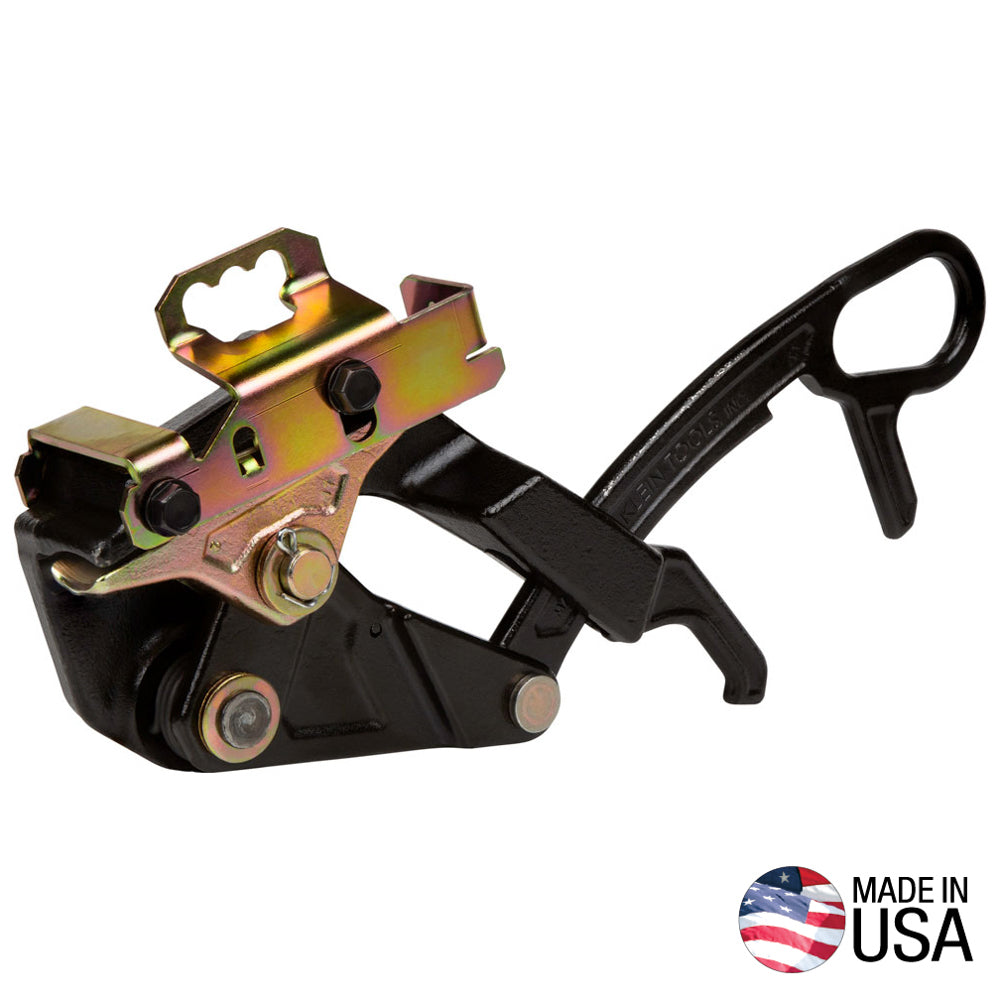

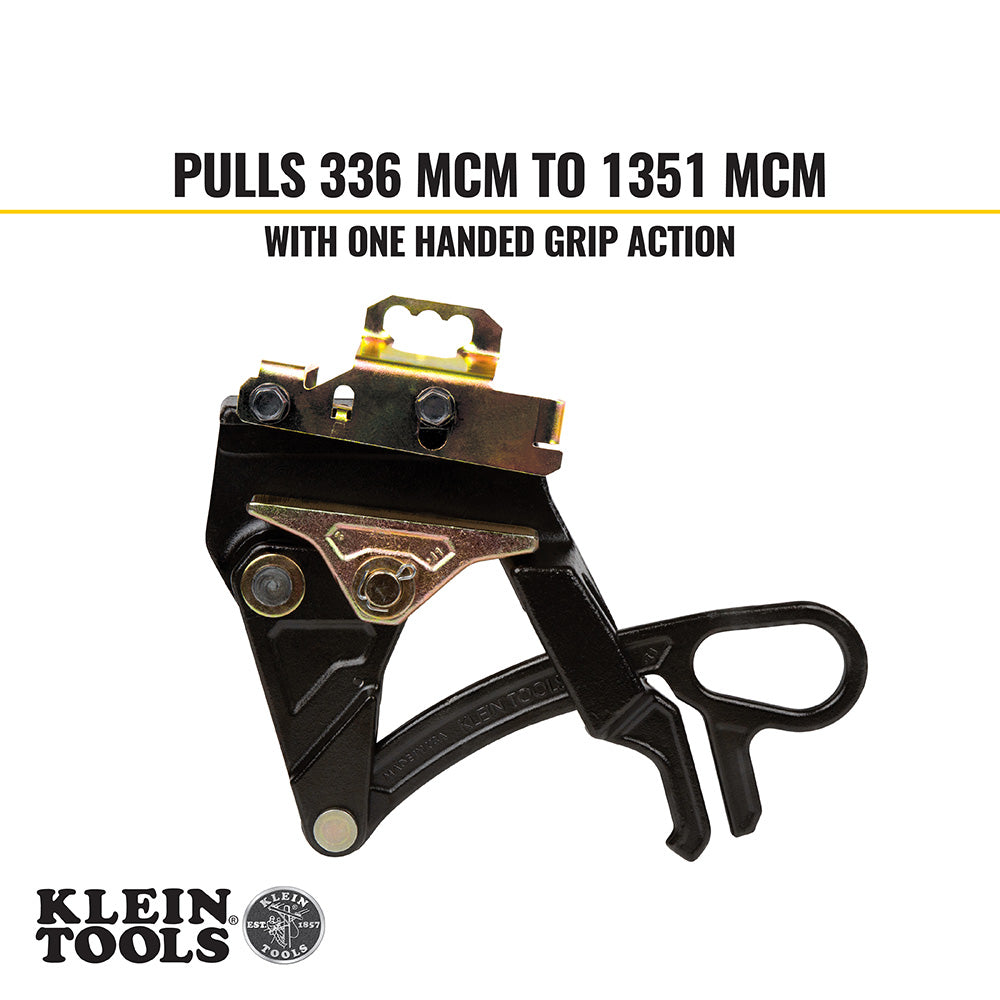

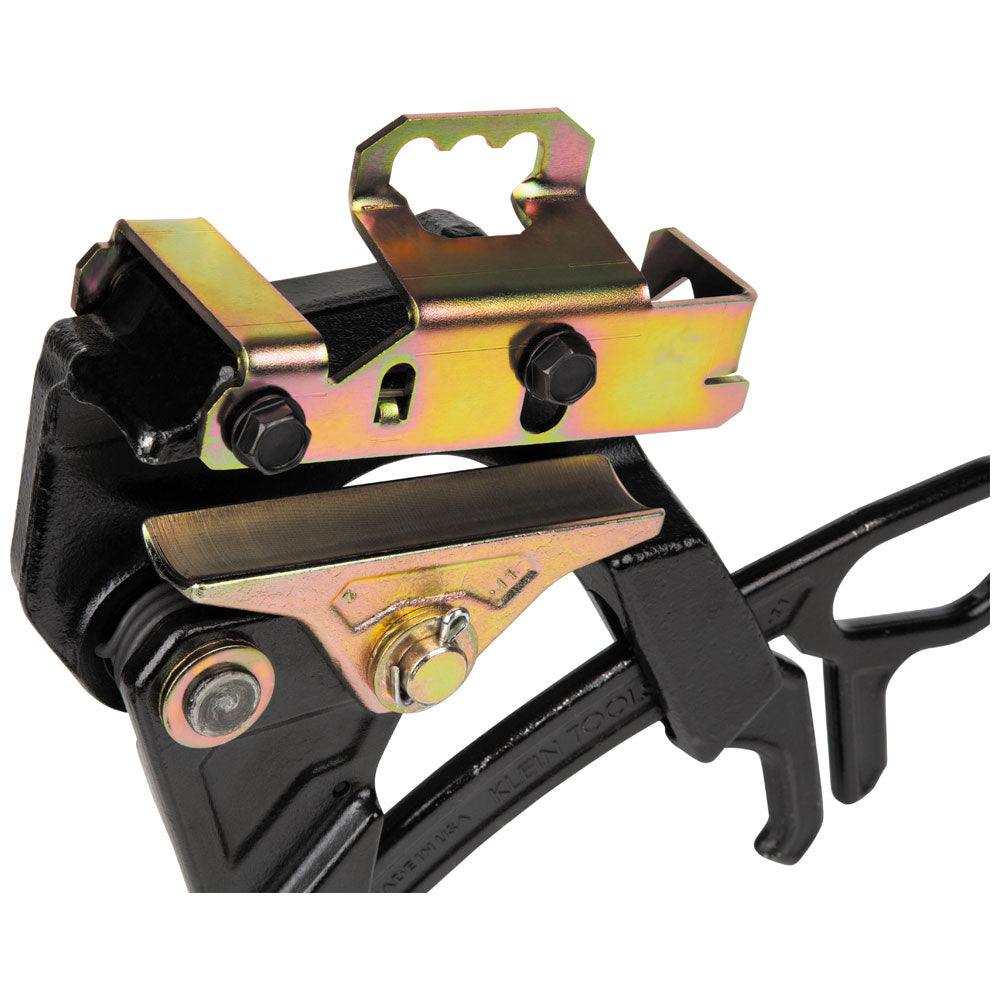

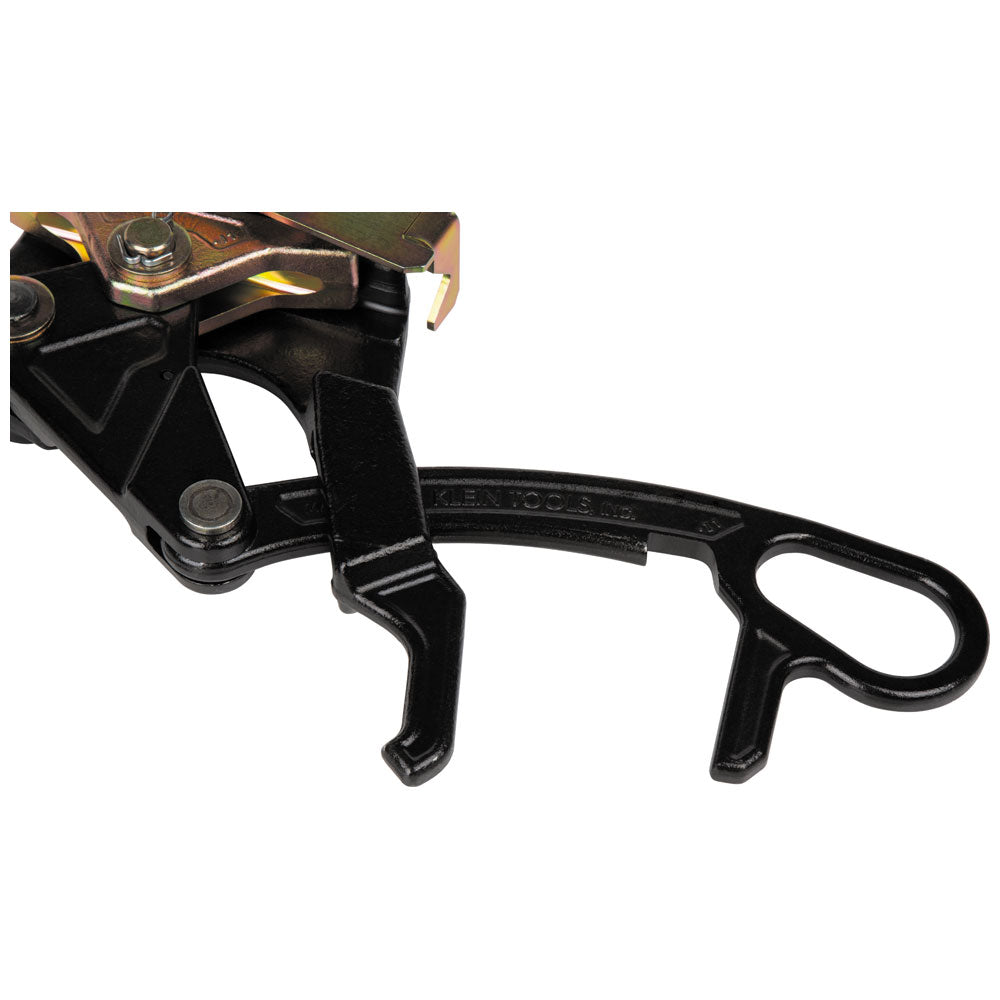

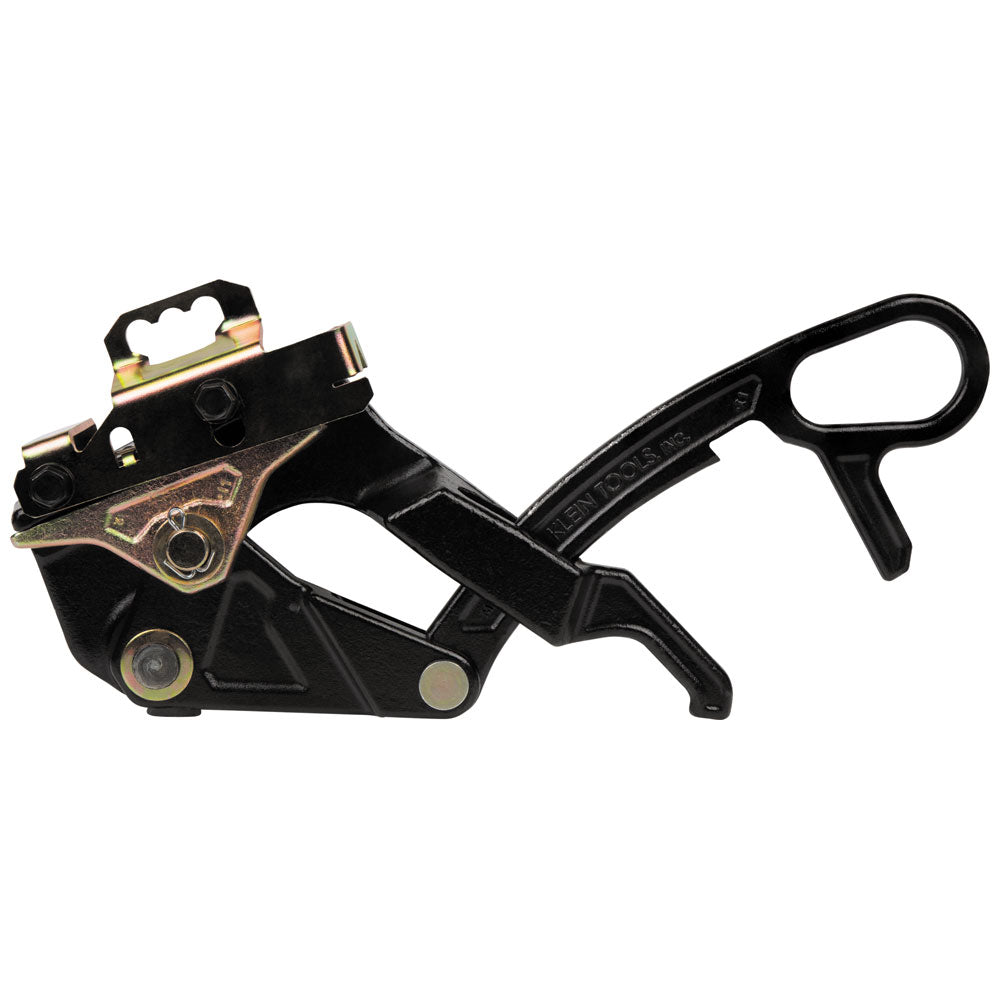

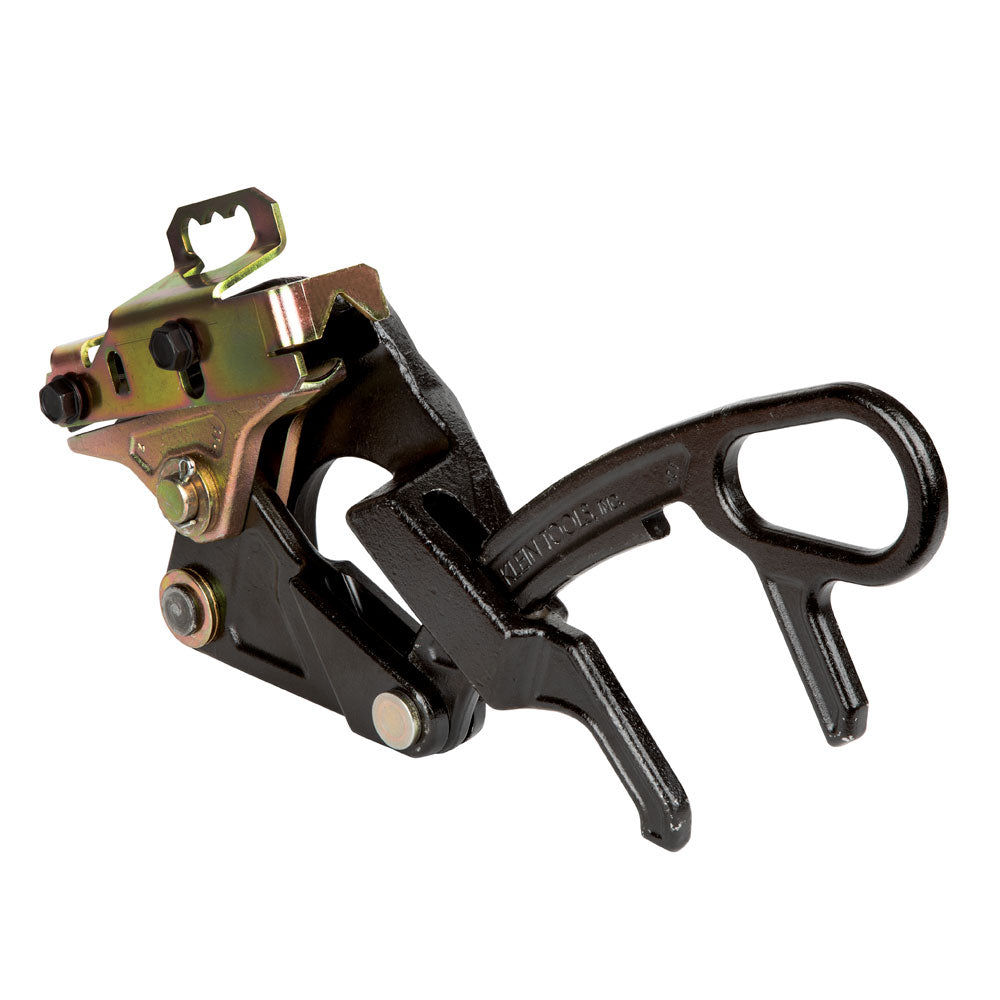

This product securely pulls ACSR, AAC, and bare copper cables. It can hold cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm). The Fine Sawtooth jaw geometry offers increased grip strength. The grip automatically closes on the cable to maintain its initial position. Made in the USA, it features a large handle opening that can accommodate various hooks on hoists, winches, and tackle blocks. Its maximum safe load is 12,000-Pound (5443 kg). This product also boasts a patent pending design.
Specifications:
Β
Attribute
Details
Type
Parallel Jaw Grip
Application
Wire Pulling
Special Features
Hot Latch, One-Handed Grip
Overall Length
13.1" (33.3 cm)
Overall Height
9.3" (23.6 cm)
Overall Width
3.06" (7.8 cm)
Material
Steel
Cable Type
ACSR, AAC, Copper
Cable Diameter Range
0.68" to 1.42" (17.3 to 36.1 mm)
Hot Latch
Yes
Swing Latch
No
Spring Mechanism
Yes
Locking Handle
Yes
Jaw Type
Round
Teeth Type
Fine
Jaw Length
4.85" (12.3 cm)
Maximum Safe Load
12,000 lb (5443 kg)
Weight
8.3 lb (3.8 kg)
UPC
092644470776
Β
Description
Description:
This product securely pulls ACSR, AAC, and bare copper cables. It can hold cable sizes from 0.68-Inch to 1.42-Inch (17.3 mm to 36.1 mm). The Fine Sawtooth jaw geometry offers increased grip strength. The grip automatically closes on the cable to maintain its initial position. Made in the USA, it features a large handle opening that can accommodate various hooks on hoists, winches, and tackle blocks. Its maximum safe load is 12,000-Pound (5443 kg). This product also boasts a patent pending design.
