Description:

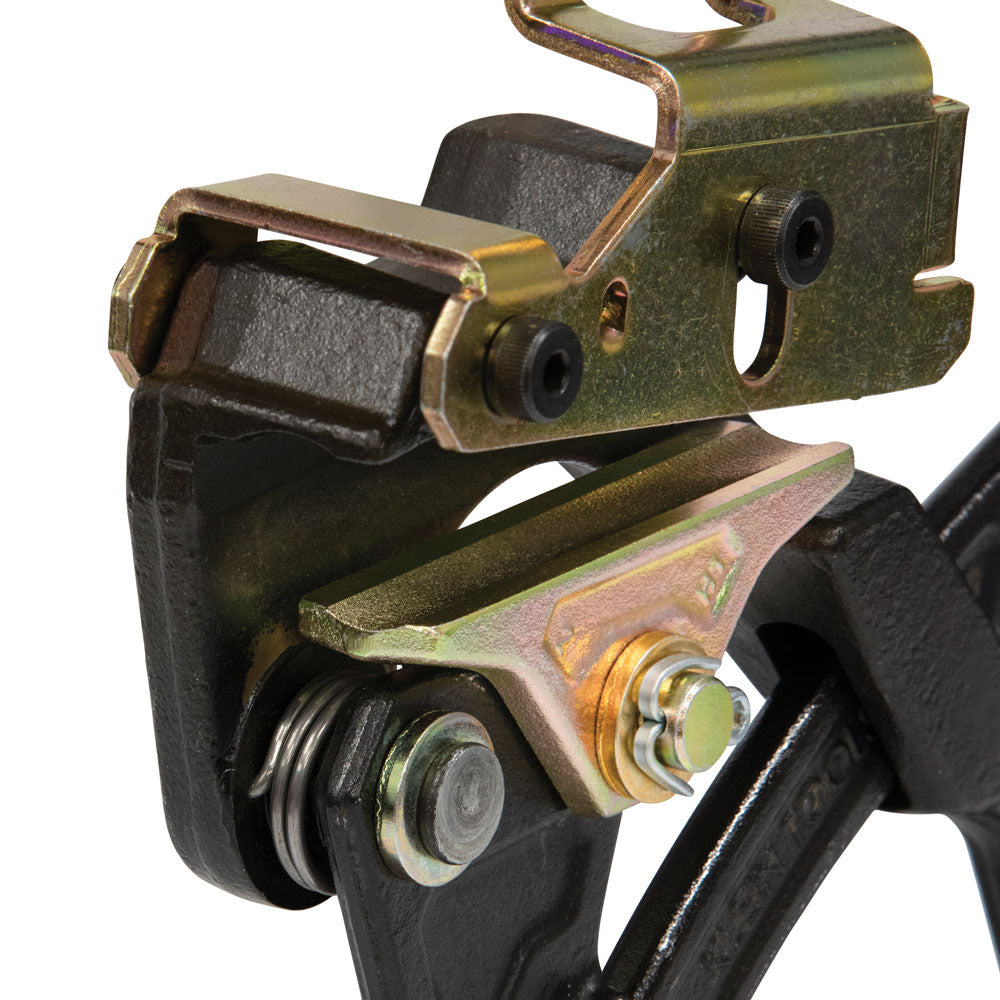

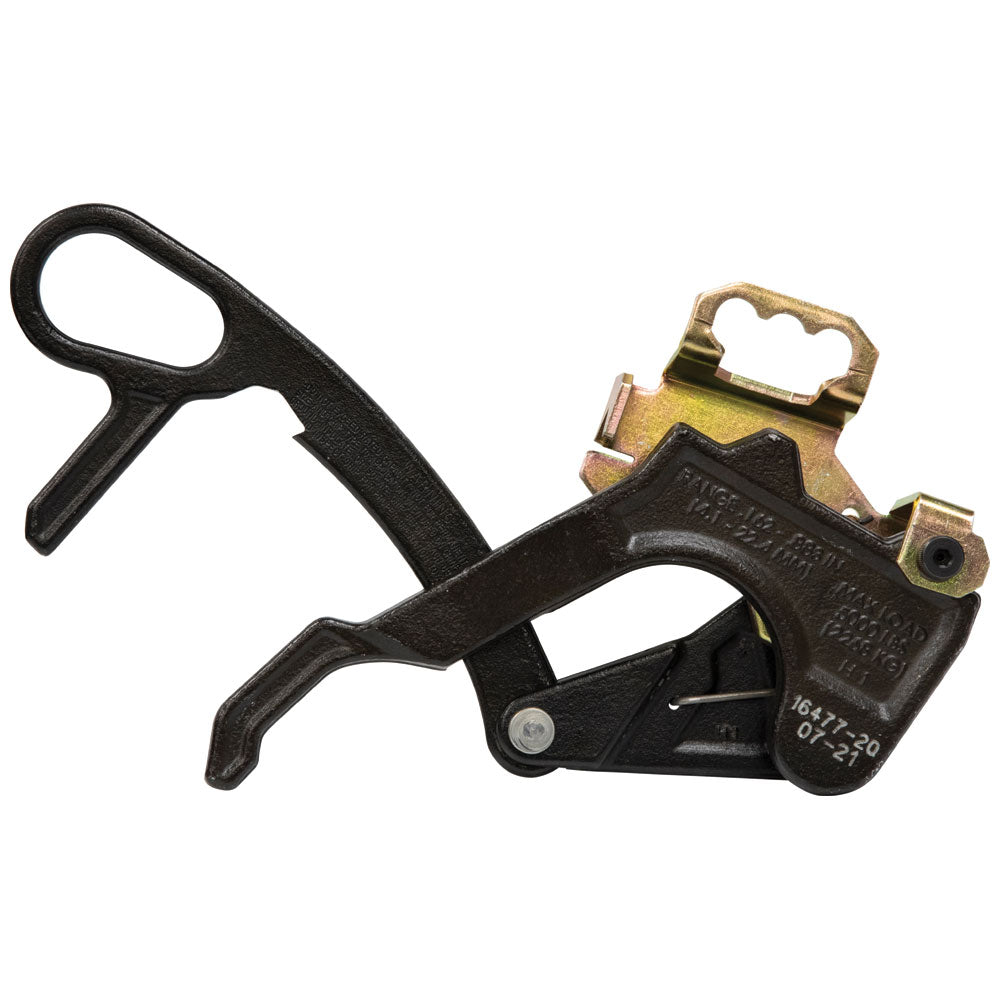

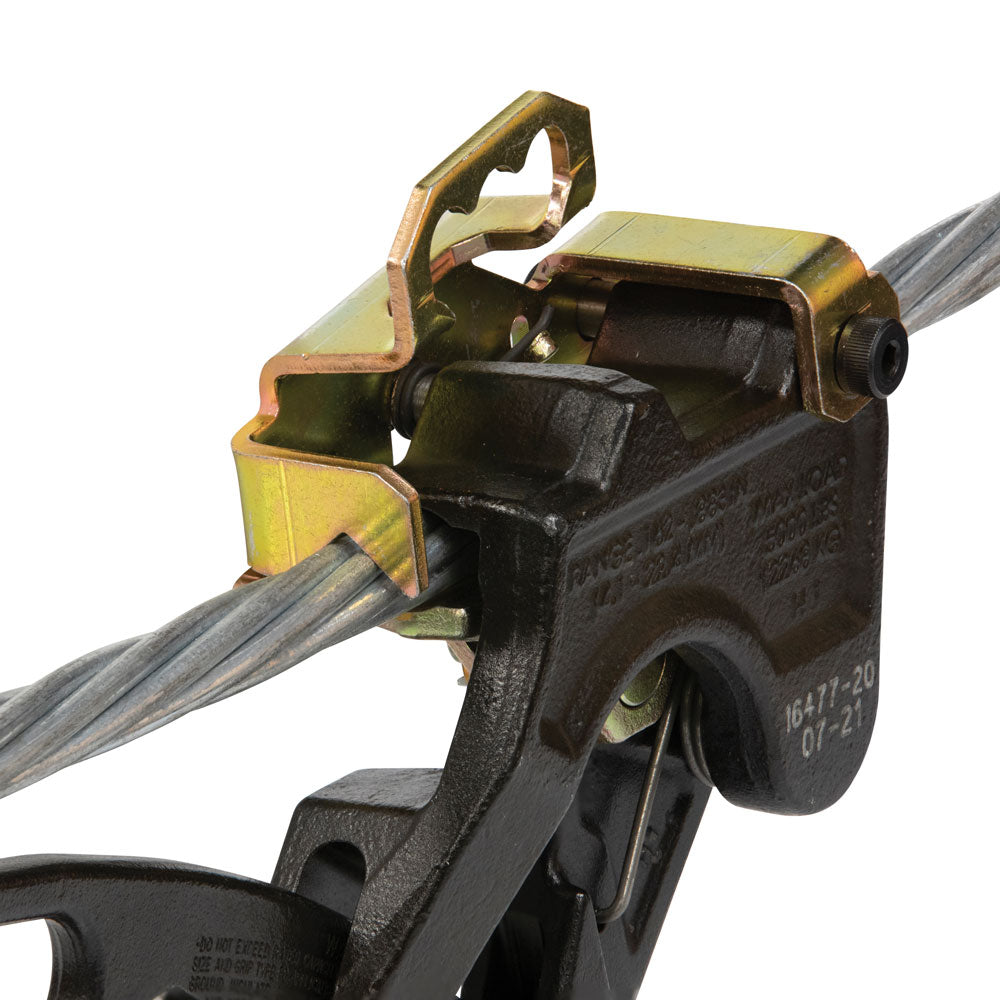

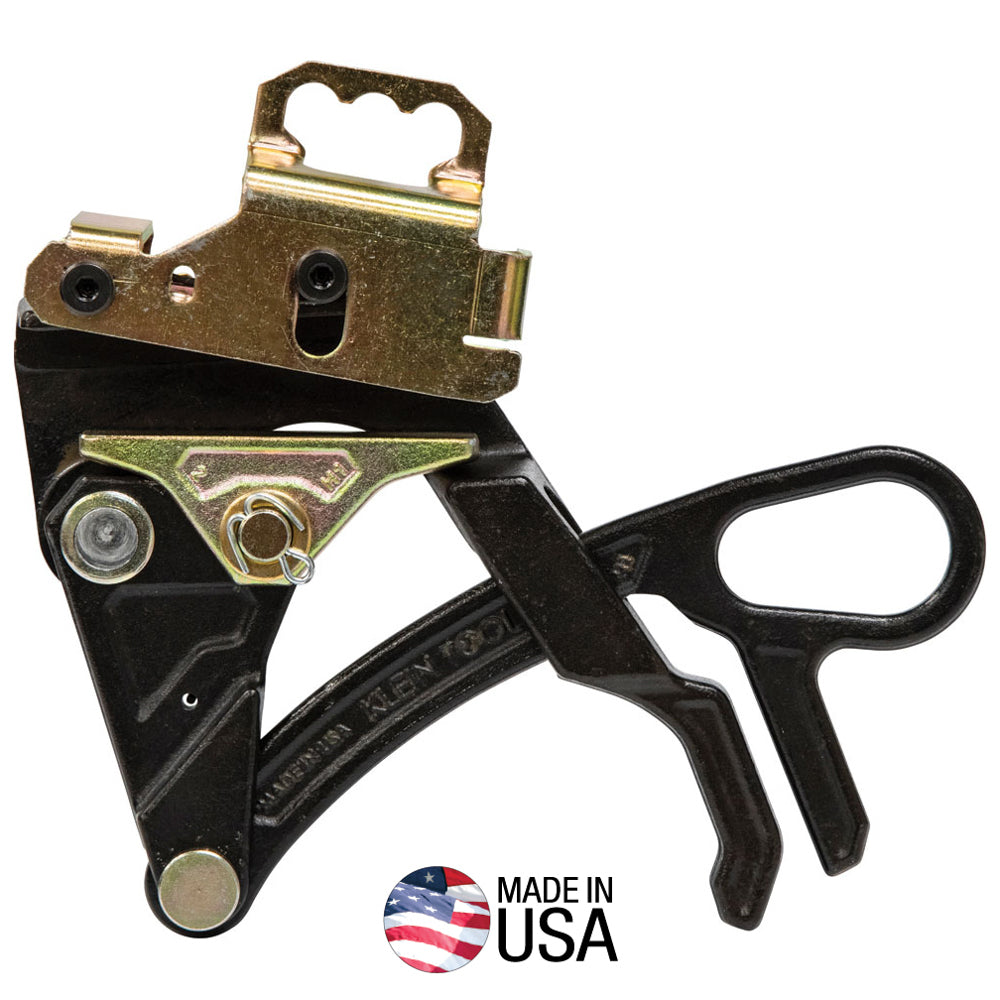

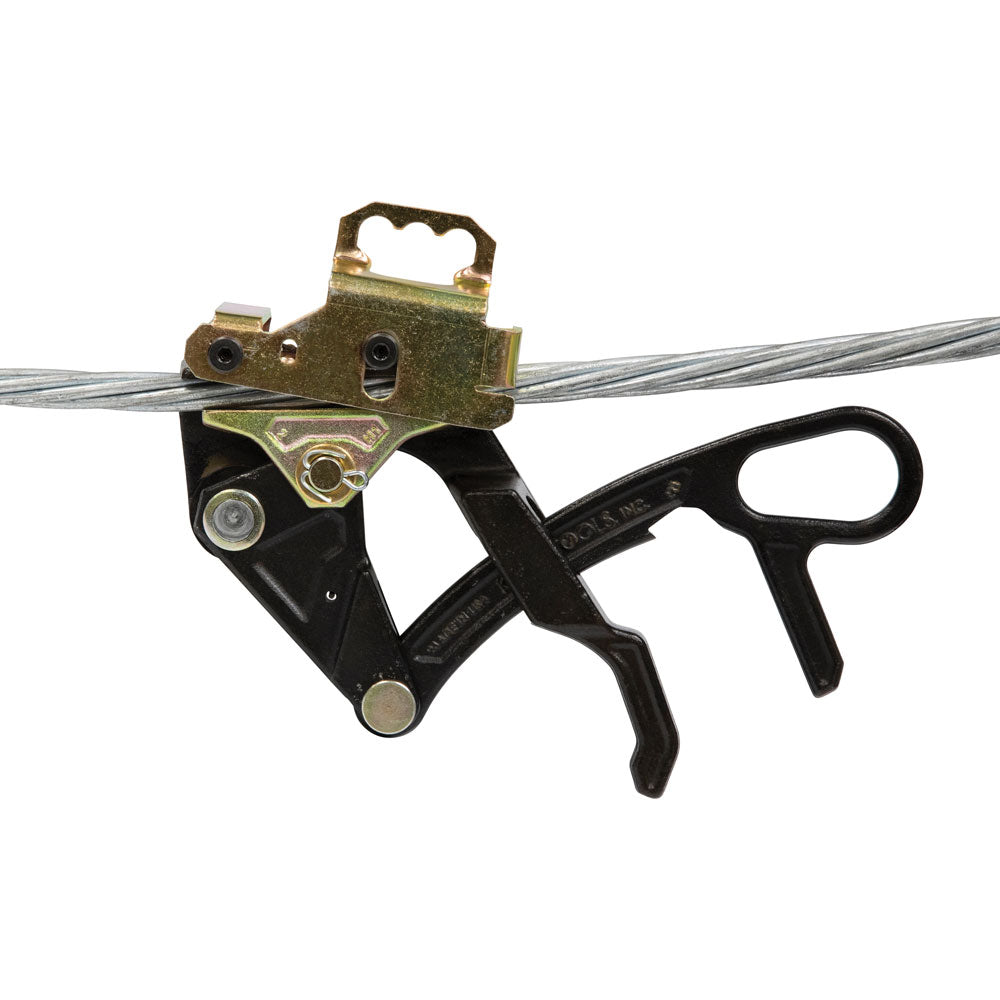

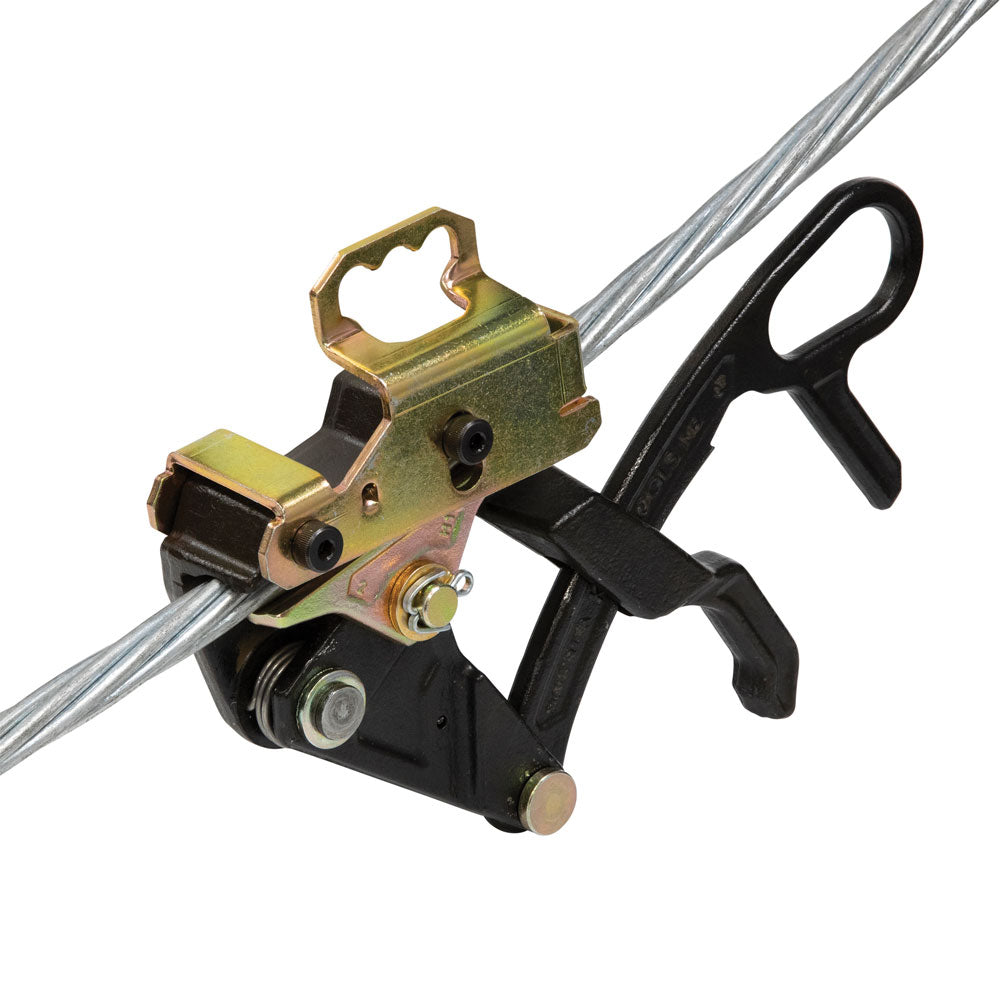

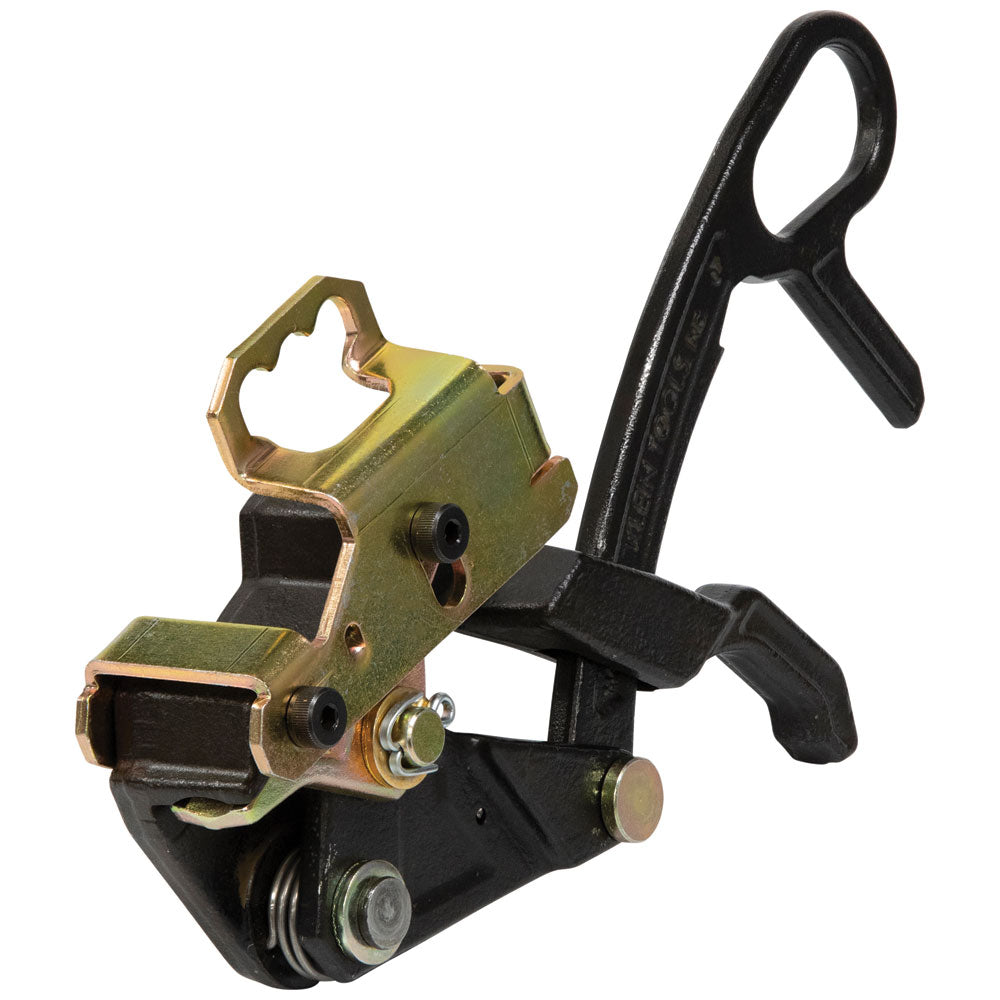

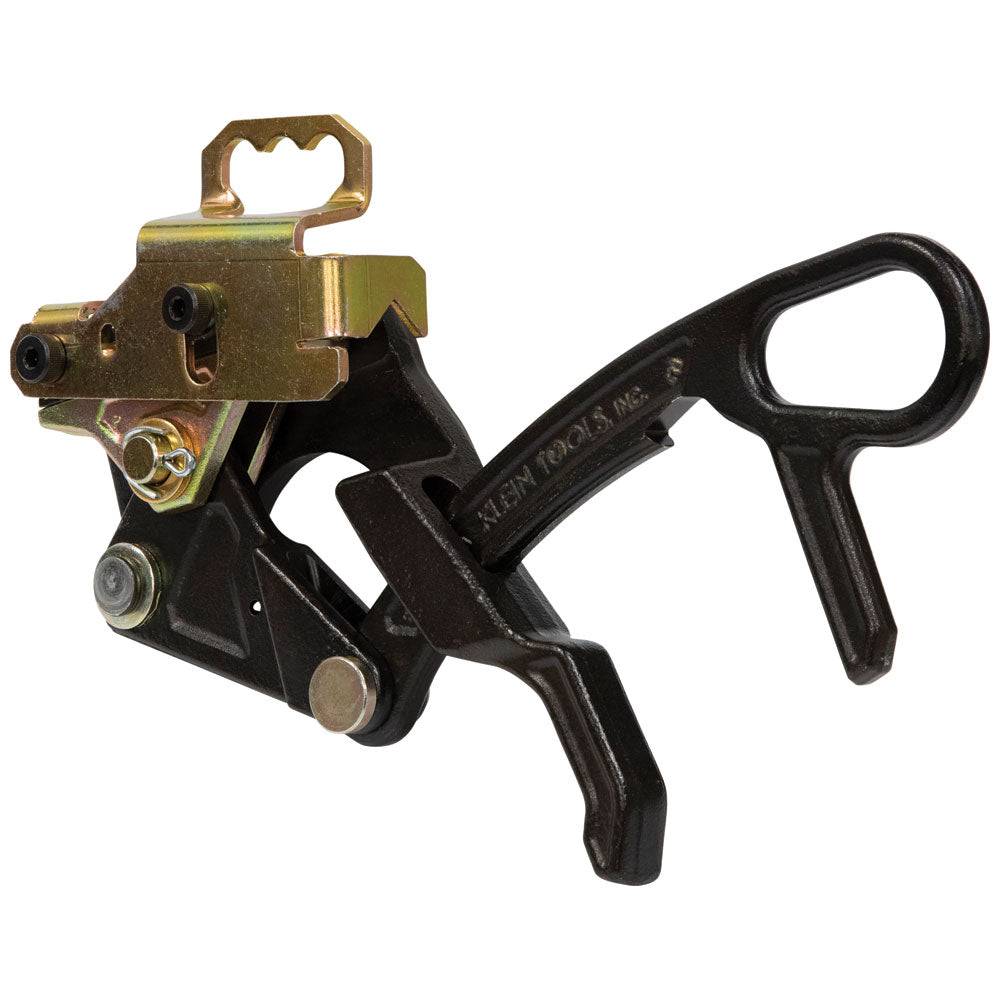

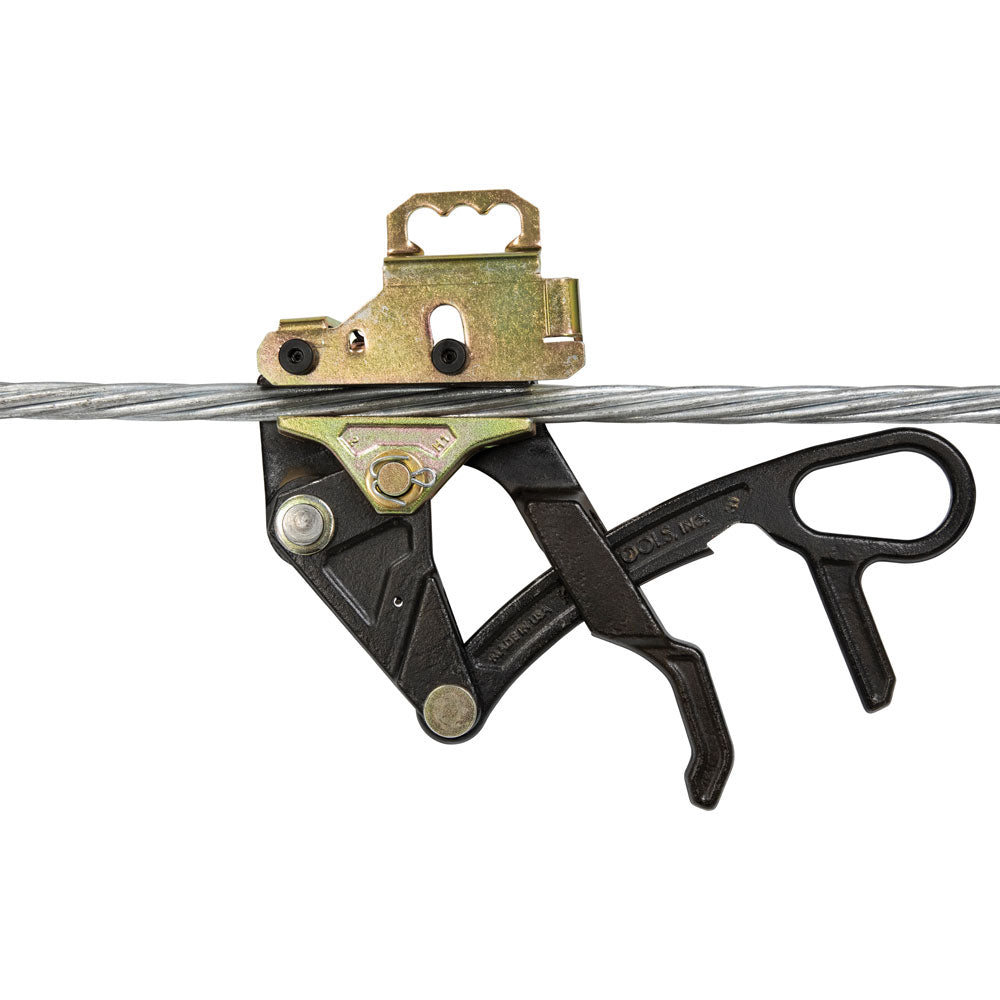

The Parallel Jaw Grip is designed for efficient wire pulling applications. Featuring a Hot Latch mechanism, this grip ensures a secure hold on cables during installation. Constructed from durable steel, it is compatible with various cable types including Bare Copper, Aluminum, and ACSR. With a maximum safe load of 5000 lb (2268 kg), this tool is ideal for heavy-duty use. The grip's dimensions are optimized for versatility and ease of use, with an overall length of 10.25'' (26 cm), height of 8'' (20.3 cm), and width of 1.75'' (4.4 cm). It accommodates cable diameters ranging from 0.162 to 0.883'' (4.11 to 22.42 mm). The grip is equipped with a spring and a locking handle for added convenience and safety. The round jaw type and 3.31'' (8.4 cm) jaw length provide a reliable grip on cables. Weighing only 3.2 lb (1.5 kg), this tool is both robust and portable.
Specifications:
Type: Parallel Jaw Grip
Application: Wire Pulling
Special Features: Hot Latch
Overall Length: 10.25'' (26 cm)
Overall Height: 8'' (20.3 cm)
Overall Width: 1.75'' (4.4 cm)
Material: Steel
Cable Type: Bare Copper, Aluminum, ACSR
Cable Diameter: 0.162 to 0.883'' (4.11 to 22.42 mm)
Hot Latch: Yes
Swing Latch: No
Spring: Yes
Locking Handle: Yes
Jaw Type: Round
Jaw Length: 3.31'' (8.4 cm)

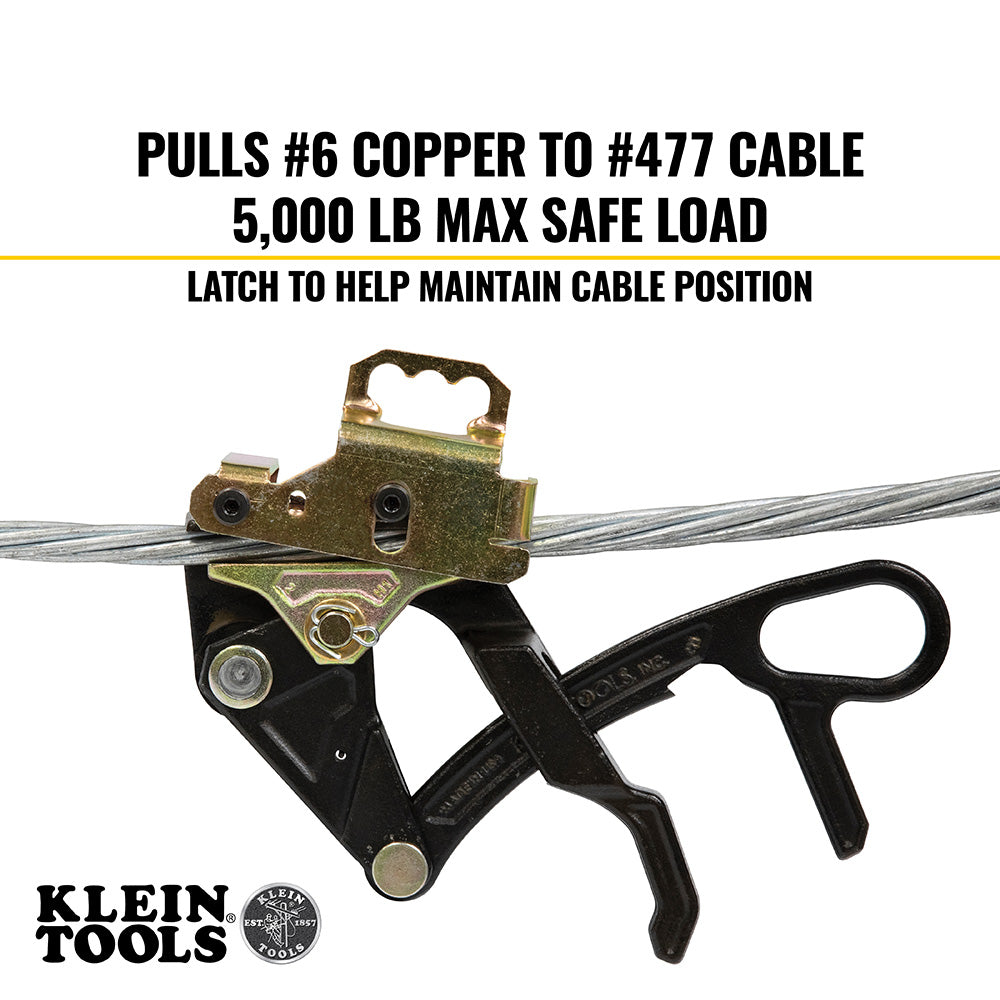

Maximum Safe Load: 5000 lb (2268 kg)
Weight: 3.2 lb (1.5 kg)
UPC: 092644470738
