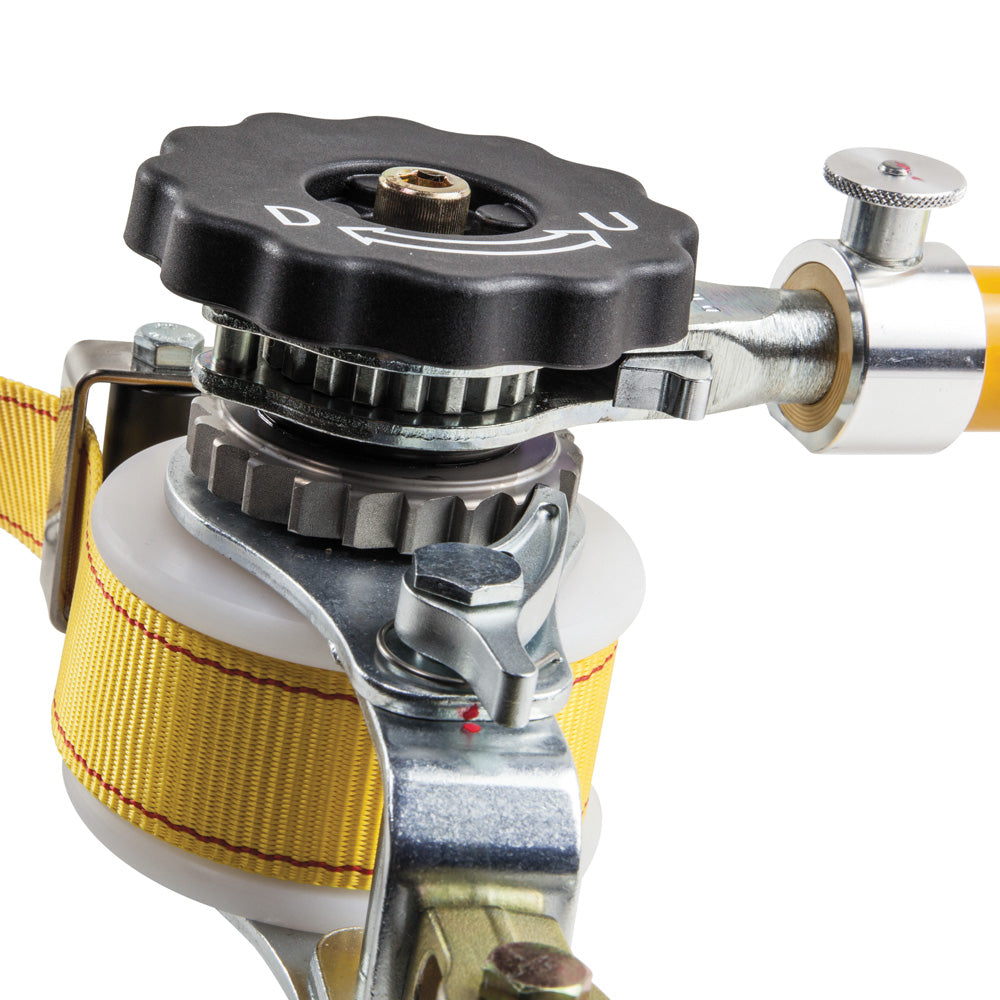

The Web Strap Hoist Deluxe has new features to make work easy and efficient. The handle can be removed for less obstruction when working near the hoist and less storage space needed. The deep V-notch in the hook latches for secure closure. Tighter ratcheting mechanism means less work, less fatigue. The handle and non-conductive drum knob allow you to safely control the tension release to avoid freewheeling. 360-degree handle rotation easily works from any angle for added flexibility on the job.
*Usually ships in 7 to 14 days.

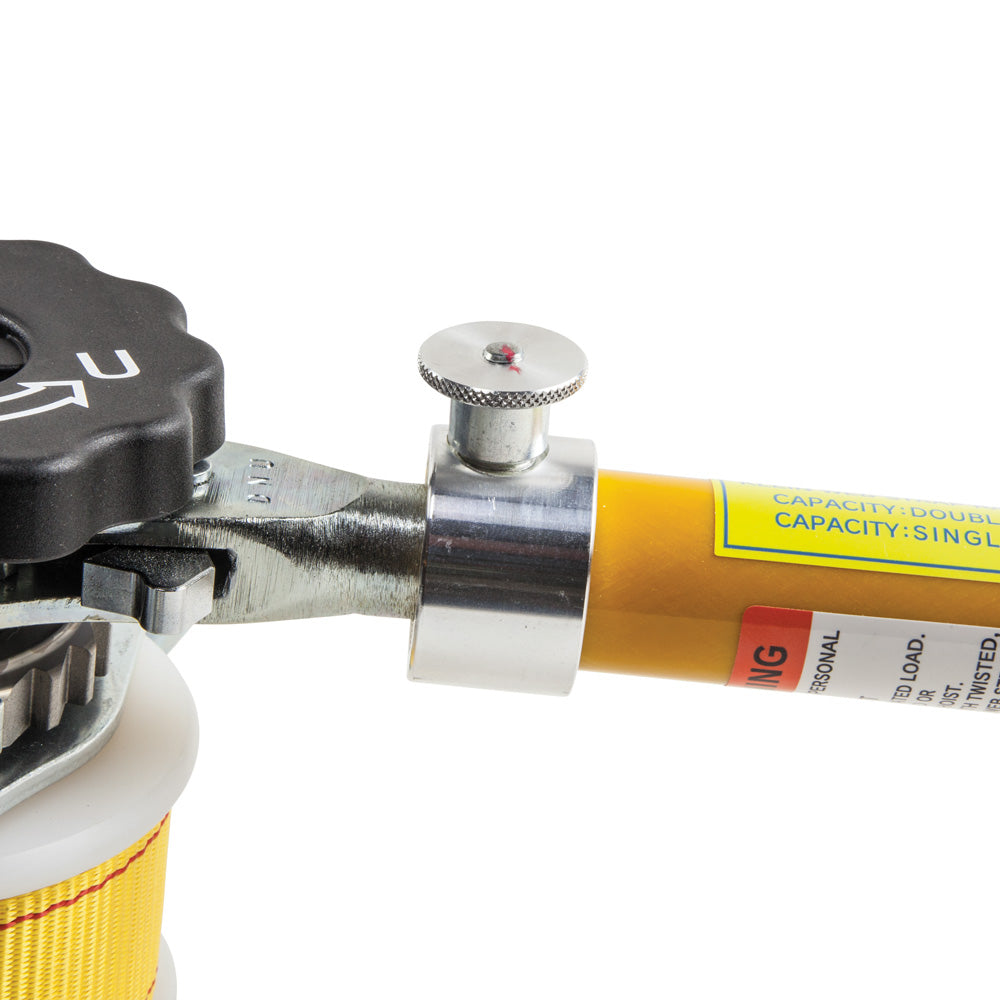

- Removable handle for less obstruction when working near the hoist; requires less space for storage
- Tight ratcheting for less work and less fatigue
- Deep V-notch in hook reduces lateral movement
- Controlled tension release for safety
- 3/4 ton single line and 1-1/2 ton double line load rating
- 360-degree handle rotation easily works from any angle

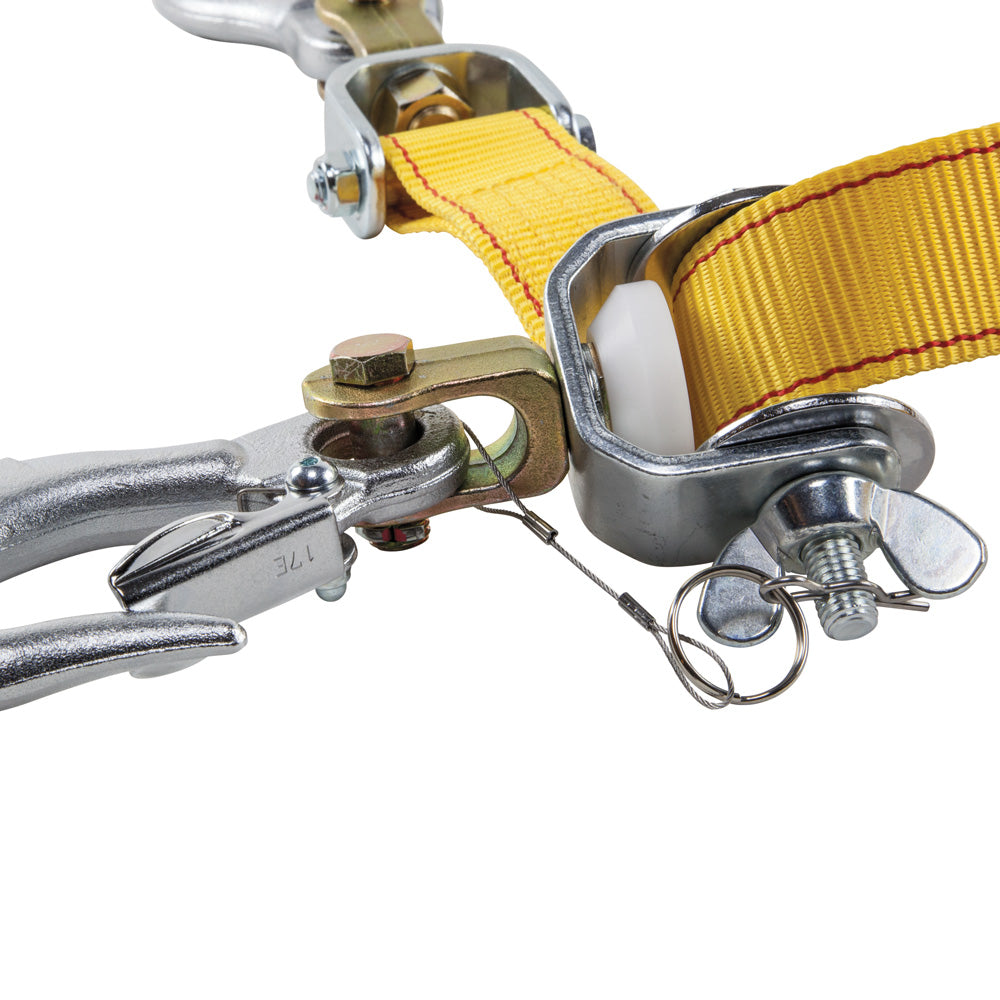

- Wingnut and cotter pin assembly for easy removal of the floating hook
- Meets ANSI/ASME B30.21-2014 and B30.10-2014 standards
Specifications
Type: Hoists
Application: Lifting
Special Features: Removable Handle; Deep V-Notch in the Hook; Tight Ratcheting Mechanism; Non-Conductive Drum Knob; 360 Degree Handle Rotation
Overall Length: 33 (83.8 cm)
Overall Height: 5 (12.7 cm)
Overall Width: 4 (10.2 cm)
Single-Line Pulling Distance: 20 to 138 (50.5 to 350.5 cm)
Single-Line Load Rating: 1500 lb (680 kg)
Double Line Pulling Distance: 26 to 79 (66.0 to 200.6 cm)
Double Line Load Rating: 3000 lb (1361 kg)
Standard: Meets ANSI/ASME B30.21-2014 and B30.10-2014 Standards
Weight: 13 lb (5.9 kg)
UPC: 092644611063
