The Ultimate OX™ Kit w/ BuckLink™ Slings is a complete rigging system that puts numerous rigging options at the user’s fingertips. It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the Ox Block®. For example, the user can create a 4-to-1 mechanical advantage up to a 50’ working height. Similarly, the user can create a 5-to-1 mechanical advantage up to a 35’ working height.
The Ultimate Ox Kit fits in a small, self-contained bag and can be stored in the back of a truck with ease.
*Usually ships within 7 to 14 business days.

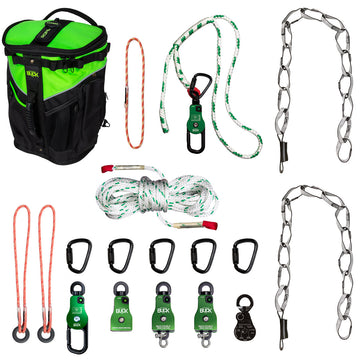

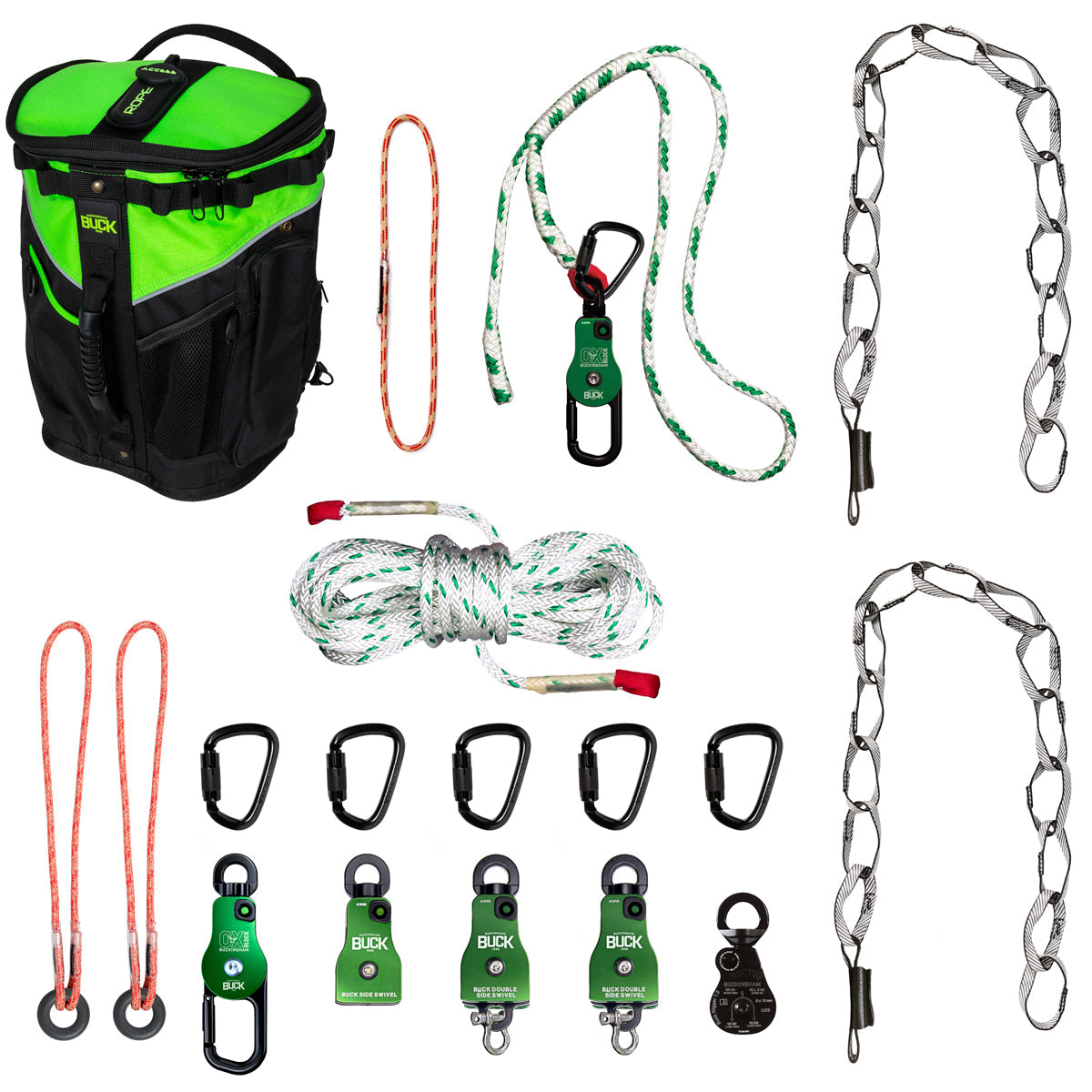

Ultimate OX™ Kit w/ BuckLink™ Slings contains:
-
- OX BLOCK™ Swivel Eye & Carabiner w/4′ Sling – 50061A-4 (Qty: 1)
- OX BLOCK™ – 50061 (Qty: 1)
- Buck Side Swivel Single Sheath – 50071B1 (Qty: 1)
- Buck Side Swivel Double Sheath – 50071B2 (Qty: 2)
- Single Sheave BuckRigger™ – 5007R1 (QTY: 1)
- Rope Bag – 4374 with 250ft versions (Qty: 1)
- Rope (250′) – 39SAM27Q2-250 (Qty: 1) or
- Steel Double Action Carabiner – 5005S5 (Qty: 5)
- Prusik Loop with Aluminum Ring – P9J8V-+M-34 (Qty: 2)
- 8mm Warpspeed 16” Endless Loop - P9C8V-10-16S (QTY: 1)
- BuckLink™ Sling – 3903SQ2-6 -903S (Qty: 2)
| Ultimate OX™ Kit w/ BuckLink™ Slings | |
| Product Number | 50061A-4 |
| Product Name | OX BLOCK™ HANDLINE ASSEMBLY |
| Material | Polyester Rope, Aluminum OX Block (50061), Alloy Steel Snap (5005S3), Steel Hook (2406) |
| Length | 4′ Sling (Rope), 8.27″ OX Block (50061), 4.68″ snap (5005S3) |
| Width | 5/8″ Rope, 1.99″ OX Block (50061), 3.07″ snap (5005S3) |
| Weight Rating | 5,000 lbs |
| Weight | 4.25 lbs |
| Breaking Strength | Snap (5005S3)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs. |
| Links to Relevant Hardware | 50061 OX Block™/ 5005S3 Carabiner |
| OX Block Standards | ASME B30 Compliant |
| Made in the USA | Yes |
| Product Number | 50061 |
| Product Name | OX Block™ |
| Material | Lightweight Aluminum |
| Length | 10.5" |
| Width | 2" |
| Gate Opening Capacity | 1.5" |
| Weight | 2.15" |
| Hook to Eye | |
| MBS | 6,000 lbs |
| WLL | 1,500 LBF |
| Sheave to Eye | |
| MBS | 10,000 Lbs |
| WLL | 2,500 LBF |
| Made in the USA | Yes |
| Product Number | 50071B1 |
| Product Name | BUCK SIDE SWIVEL™ |
| Length | 7" |
| Width | 3" |
| Weight | 1.6 lbs |
| Material | Aluminum |
| Diameter of Eye | Swivel Eye - 1" |
| Breaking Strength | MBS – 10000 lbf (44KN) / WLL – 2500 lbf (11KN) |
| Other | Max Rope Diameter – 5/8″ (16mm) / 5/8″ x 2 1/8″ Sealed Ball Bearing Pulley Thickness – 1.813″ (46mm) |
| Made in the USA | Yes |
| Product Number | 50071B2 |
| Product Name | Dual Buck Side Swivel |
| Length | 8" |
| Width | 3" |
| Weight | 2.6 lbs |
| Material | Aluminum |
| Option Number | N/A |
| Diameter of Eye | Swivel Eye (upper eye) – 1″ / Becket Eye (lower eye) – 0.8″ |
| Lower Eye Shackle: | Yes |
| Breaking Strength | MBS 10000 lbf. 44(kn) |
| Diameter Rope Capacity | 5/8″ (16mm) |
| Other | Double Pulley |
| Made in the USA | Yes |
| Product Number: | 5007R1 |
| Weight: | 9.2 oz |
| Height: | 5.3″ (135mm) |
| Width: | 2.5″ (63mm) |
| Thickness: | 1.2″ (30mm) |
| Material: | Aluminum |
| Pulley Size: | 1.5″ (38mm) |
| Max Rope Diameter: | 1/2″ (13mm) |
| Breaking Strength: | 8000 lbf. (36kN) |
| Weight Rating: | WLL – 2000 lbf. (8kN) |
| Made in the USA | Yes |
| Product Number: | 4374 |
| Product Name | ROPEPRO™ DELUXE BAG BY BUCKINGHAM INTERNATIONAL |
| Height | 16" |
| Width | 14" |
| Depth | 16" |
| Weight | 3.2 lbs |
| Number of Pockets | 6 |
| Outside Pockets | 6 |
| Inside Pockets | 0 |
| Material | Water Resistant Canvas |
| 2 Way Snap | No |
| Rain Flap | Water-Resistant |
| Back Straps / Shoulder Straps | Yes / Optional Back Pack Attachment – 4375 |
| Closure Tab | Zipper |
| Bottom Material | Water-Resistant Canvas |
| Wheels | No |
| Magnet | No |
| Attachment Type | Rope Bag |
| Bucket Hooks Included | N/A |
| Bucket Hook Model | N/A |
| Standards | N/A |
| Made in the USA | Yes |
| Product Number: | 5005S5 |
| Product Name | Steel Double Action Rigging Carabiner |
| Option Number | N/A |
| Length | 4.68" |
| Width | 3.07" |
| Weight | 10.5 oz |
| Material | Alloy Steel |
| Diameter of Eye | No Eye |
| Gate Opening Capacity | 0.94" |
| Gate Strength | 3,600 lbs. |
| Breaking Strength | 11,240 lbs. (50KN) |
| Standards Met | CSA Z259.12 / ANSI Z359.12 |
| Other | Double Action (2) |
| Made in the USA | Yes |
| Product Number: | P9J8V-+M-34 |
| Product Name | 5/16″ PRUSIK LOOP WITH AN ALUMINUM RING |
| Material | Warpspeed Red Rope |
| Prusik Type | Prusik w/ Aluminum Ring |
| Rope Size | 5/16" |
| Length | 34" |
| Max Weight Capacity | 350 lbs when fully equipped |
| Standards | ANSI Z133 |
| Weight | 0.3 lbs |
| Made in the USA | Yes |
| Product Number: | P9C8V-10-16S |
| Product Name: | 8MM WARPSPEED 16″ ENDLESS LOOP |
| Material: | 8MM DYNEEMA ROPE |
| Prusik Type: | Endless Loop |
| Rope Size: | 8MM |
| Length: | 16″ |
| MBS: | 5,000 LBF |
| Weight: | .09 lbs |
| Made In USA?: | Yes |
| Product Number: | 3903SQ2-6 |
| Product Name | BuckLink™ Sling |
| Overall Length | 6 |
| Width | 3/4″ Spectra |
| Connector Material | N/A |
| Material Type | Spectra |
| Weight | 1 lb. |
| User Capacity | 5,000 lbs. individual rated loops |
| Product Type | Sling |
| Standards | EN362-2004, ANSI/ASSE Z359.12-2009, CSA Z259.12-01 & CSA Z259.12-11 (1711 Snap). |
| Links to Relevant Hardware | N/A |
| Made in the USA | Yes |
| Product Number: | 39SAM27Q2-250 |
| Product Name: | OX Handline |
| Length: | 250' |
| Width: | 1/2" |
| Stitched Eyes: | Yes (2) w/ nylon tubing |
| Made in the USA: | Yes |
| Total Kit Weight | 39 lbs. |
OX BLOCK™ Instructions & Warnings
Ox Handline Inspection Instructions
P7J & P9J Series Prusik Loop Instructions & Warnings
Rigging Carabiner Instructions
Ox Block™ Sling Instructions & Warnings
Click here to download
