SKU: 87-ZCS2177

Triple Weave Revolving Eye Cable Grips

Vendor SlingCo
Regular price $106.73
Sale price $106.73 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

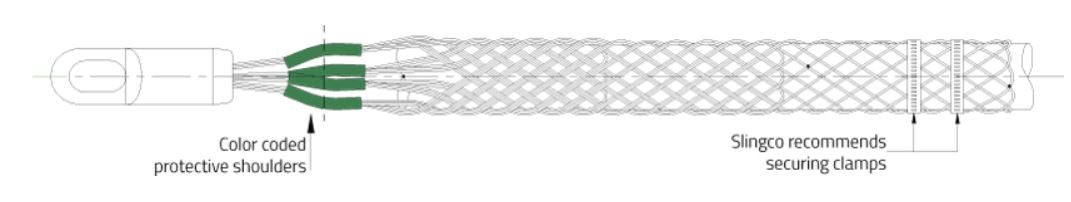

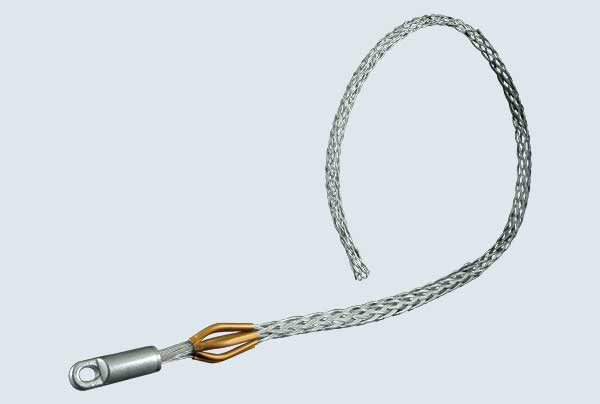

Like the MU type, the rotating eye grip has a triple weave construction and is color-coded for ease of identification. The steel forged revolving head is ideal for connecting to Slingco swivels. Warning: The Slingco rotating eye does not revolve under load and does not replace the use of a line swivel. Made of galvanized steel.

*Usually ships in 7 to 14 days.

Features And Benefits

  • Steel forged revolving head ideal for connecting to Slingco swivel
  • Triple weave construction
  • Used for heavy-duty pulling
  • Suitable for bare or insulated cable, conductor or wire
  • Colour coded for easy identification

    Range (mm) Lattice Length (mm) Approx. Break Load (kg) Colour Code Slingco Part No.
    6 - 12 787 3,170 Dark Green ZCS2177
    12 - 19 1,143 4,760 Brown ZCS2178
    19 - 25 1,092 6,395 Light Blue ZCS2179
    25 - 32 1,651 11,340 Gold ZCS2180
    32 - 38 1,499 14,065 Black ZCS2181
    38 - 44 2,083 14,065 Red ZCS2182
    44 - 57 2,083 19,510 Dark blue ZCS2183
    51 - 63 1,829 19,510 Yellow ZCS2779
    63 - 76 1,829 19,510 Orange ZCS2780
    76 - 89 1,880 19,510 Aluminum ZCS2781
    89 - 102 1,930 19,510 Light Green ZCS2782

    A note about dimensions and tolerances
