Tower Rescue Kit w/ OX Block® - 108Q8-500
Tower Rescue Kit w/ OX Block® - 108Q8-500
A versatile high angle rescue kit now featuring the popular Ox Block™ and all necessary components to safely perform ground and structure-based rescues as well as self-rescue. Easily adaptable for different rescue situations and techniques needed, while working on lattice towers or other structures.
*Usually ships within 7 to 14 days.

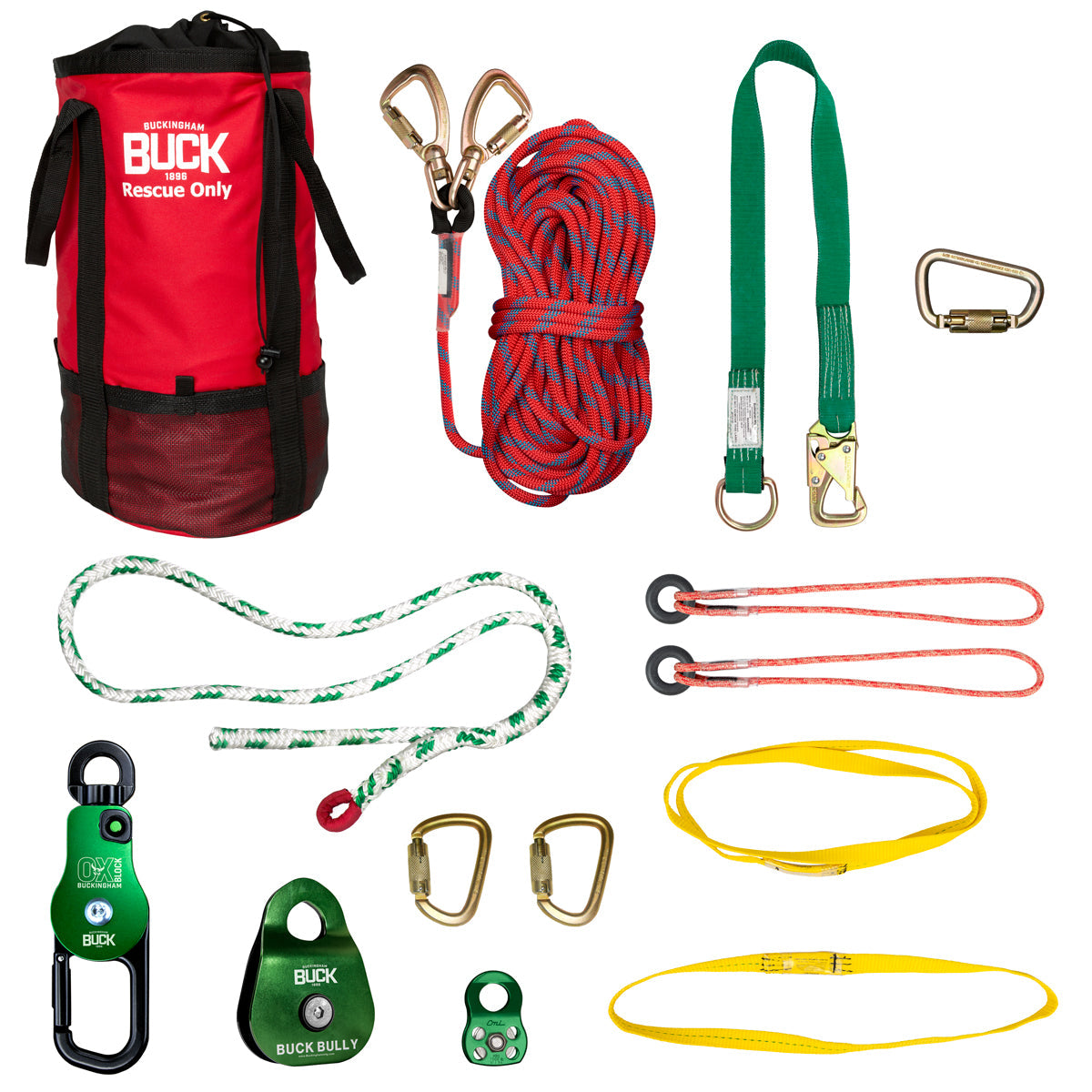

The tower rescue kit includes:
- Model 39S1Q2- 500 – 500′ of 7/16″ abrasion-resistant static rope with stitched eyes and metal thimbles on each end
- Model 3902S-4 – Unique Tie Back Anchor Sling
- Model 39078TAG1-4- Adjustable Rope Sling for Ox Block (4′).
- Model 5007B1 – The BuckBully™
- Model 5005T – ANSI Rated Steel Carabiners (Qty 1)
- Model 3905E-36 & 3905E-24 – Endless Loop Slings.
- Model P9J8V-+ M-34 – Prusik Loop with an Aluminum Ring (Qty 2)
- Model 50061- The OX BLOCK™ is a rope snatch block with an integrated friction bar used for:
- Hurtman/self-rescue
- Lowering
- Raising
- Snubbing loads.
- Model 4569pq6-200 – Storage Bag marked “Rescue Only” for easy identification
- Model RP110 Aluminum Micro Pulley.
AVAILABLE LENGTHS
Model 108Q8-250 – 250′ of rope
Model 108Q8-500 – 500′ of rope
Product Specs:
| Product Number | 4569Q6-200 |
| Product Name | "Rescue Only" Rope Bag |
| Length | |
| Diameter | |
| Weight | 1.5 lbs |
| Material | Canvas |
| Number of Pockets | 4 |
| Inside Pockets | 0 |
| Outside Pockets | 4 - Mesh |
| Closure Type | Drawstring |
| Bottom Material | Canvas |
| Rain Flap | No |
| Made in the USA | Yes |
| Product Number: | 5005T |
| Option Number: | N |
| Weight: | 8.8 oz |
| Length: | 4.37" (111mm) |
| Width: | 2.67" (68mm) |
| Material: | Alloy Steel |
| Diameter of Eye: | No Eye |
| Gate Opening Capacity: | 0.75" (19mm) |
| Gate Strength: | 3600 lbs |
| Breaking Strength: | 9216 lbs (41KN) |
| Standards Met: | CSA Z259.12 / ANSI Z359.12 |
| Other: | Double Action (2) |
| Model Number | 50061 |
| Product Name | Ox Block |
| MATERIAL | Lightweight Aluminum |
| LENGTH | 10 1/2" |
| Width | 2" |
| Gate Opening Capacity | 1 1/2" |
| Weight | 2.15 lbs. |
| Hook to Eye: | |
| MBS | 6,000 lbs. |
| WLL | 1,500 lbf. |
| Sheave to Eye: | |
| MBS | 10,000 lbs. |
| WLL | 2,500 lbf. |
| Ox Block standards | ASME B30 Compliant |
| Made in USA? | Yes |
| Model Number | 3905E |
| Product name | Web Sling |
| Overall Length | Available in 18", 24", 36" |
| Number of Legs | N/A |
| Material Type | Nylon Web |
| Adjustable | No |
| Protector | No |
| Protector Type | N/A |
| Red Wear Center | No |
| Ring Material | N/A |
| Weight | .2 lbs |
| Made in USA? | Yes |
| Product Number | 39S1Q2-500 |
| Product Name | Lifeline |
| Length | 500 |
| Width | 7/16" |
| Material | Kernmantle Rope |
| Protector | Yes |
| Protector Type | 5" Wear Guard |
| Connector | Swivel Carabiner |
| Connector Material | Steel |
| Made in the USA | Yes |
| Model Number | 39078TAG1-4 |
| Product name | Ox Tail |
| Overall Length | 4 |
| Number of Legs | N/A |
| Material Type | Rope |
| Adjustable | Yes |
| Protector | No |
| Protector Type | N/a |
| Red Wear Center | No |
| Ring Material | N/A |
| Weight | 1.4 lbs |
| Made in USA? | Yes |
| Product Number: | 5007B1 |
| Weight: | 1 lb |
| Length: | 5.5" (140mm) |
| Width: | 4.5" (114mm) |
| Material: | Aluminum |
| Diameter of Eye: | 1.19" |
| Sheave Diameter: | 2 3/8" |
| Breaking Strength: | MBS - 10000 lbf / WLL - 2500 lbf |
| Max Rope Diameter: | 5/8" (16mm) |
| Other: | Sealed Ball Bearing Pulley |
| Product Number: | 5005S3 |
| Option Number: | N/A |
| Weight: | 10.5 oz |
| Length: | 4.68" (119mm) |
| Width: | 3.07" (78mm) |
| Material: | Alloy Steel |
| Diameter of Eye: | No Eye |
| Gate Opening Capacity: | 0.94" (24mm) |
| Gate Strength: | 3600 lbs |
| Breaking Strength: | 11240 lbs (50KN) |
| Standards Met: | CSA Z259.12 / ANSI Z359.12 |
| Other: | Triple Action (3) |
| Product Number | 3902S-4 |
| Product Name | Temporary Anchor |
| Length | 4 |
| Width | 1 - 11/16" |
| Weight | 1.5 lbs. |
| Material | Woven Strap |
| End 1 | Steel Tie Back Snap |
| End 2 | 2" Dee Ring |
| Rated to | 5,000 lbs. |
| Made in the USA | Yes |
| Model Number | P9J8V-+M-34 |
| Product Name | 5/16″ PRUSIK LOOP WITH AN ALUMINUM RING |
| Material | Warpspeed Red Rope |
| Prusik type | Prusik w/ Aluminum Ring |
| Rope size | 5/16" |
| Length | 34" |
| Max Weight Capacity | 350 lbs When Fully Equipped |
| Standards | ANSI Z133 |
| WEIGHT | .3 lbs |
| Made in USA? | Yes |
| Model Number | RP110 |
| Product Name | Micro pulley |
| SIDE PLATE MATERIAL | Aluminium |
| SHEAVE/MATERIAL | 1 1/4"/ALUMINIUM |
| LENGTH | 2.75" |
| WIDTH | 1.85" |
| ROPE CAPACITY | 1/2" |
| MBS | 7,000 |
| WEIGHT | 0.15lbs. |
| Made in USA? | Yes |
Videos:
TRAINING - Buck Tower Rescue Kit 108-500 (DOWNLOAD)
Instructions & Warnings:
108Q8 Instructions & Warnings
Restraint Systems Instructions & Warnings
P7J & P9J Series Prusik Loop Instructions & Warnings
OX BLOCK™ Instructions & Warnings
