Tower Clamp
Tower Clamp

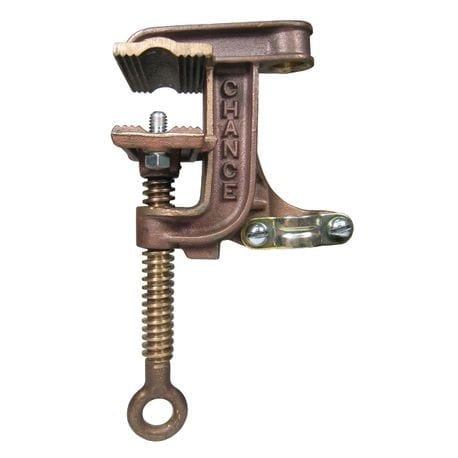

A bronze body tower clamp with flat serrated jaws that have a 1-1/2″ capacity. It has a drilled terminal to accept threaded ferrules. The fault current rating is 43,000 amps for 15 cycles and 30,000 amps for 30 cycles. It accommodates conductors up to 2-1/2″ and accepts pressure type ferrules.
Contact Us to order or for more information.
Tower Clamp
- Tower & Flat-Face Ground Clamp
- Continuous Current 400A
- Fault Current 43kA for 15 cycles or 30kA for 30 cycles
- Main Line Range Max. 1.5″ Angles or 1.5″ Flat
- Main Line Range Min. 1/8″
- Jumper Range Max. 4/0 Grd. Cable w/ Threaded Stud
- Jumper Range Min. #2 Grd. Cable w/ Threaded Stud
- ASTM Type I, Class B, Grade 5
- Jaws Serrated
- Ferrule Threaded
