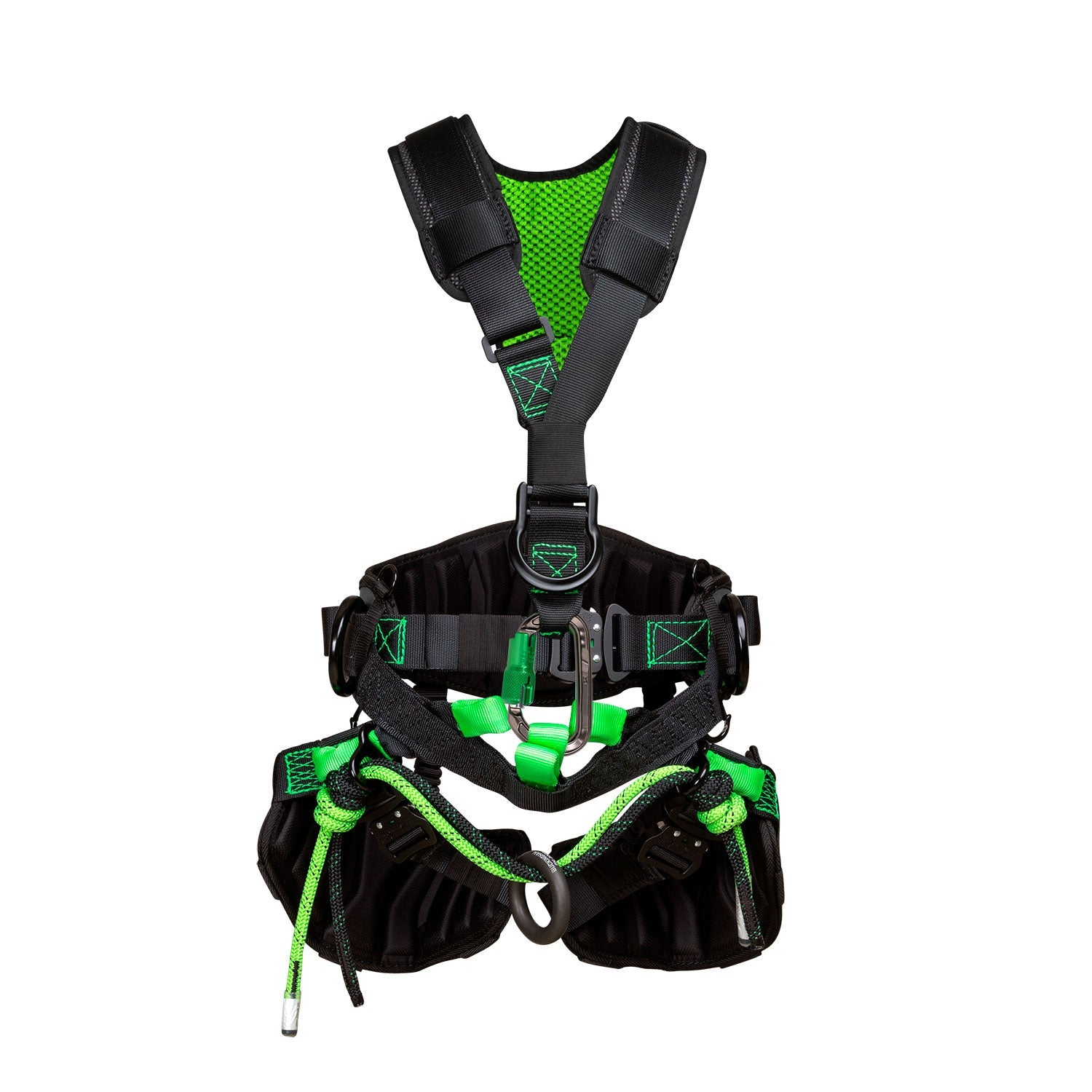

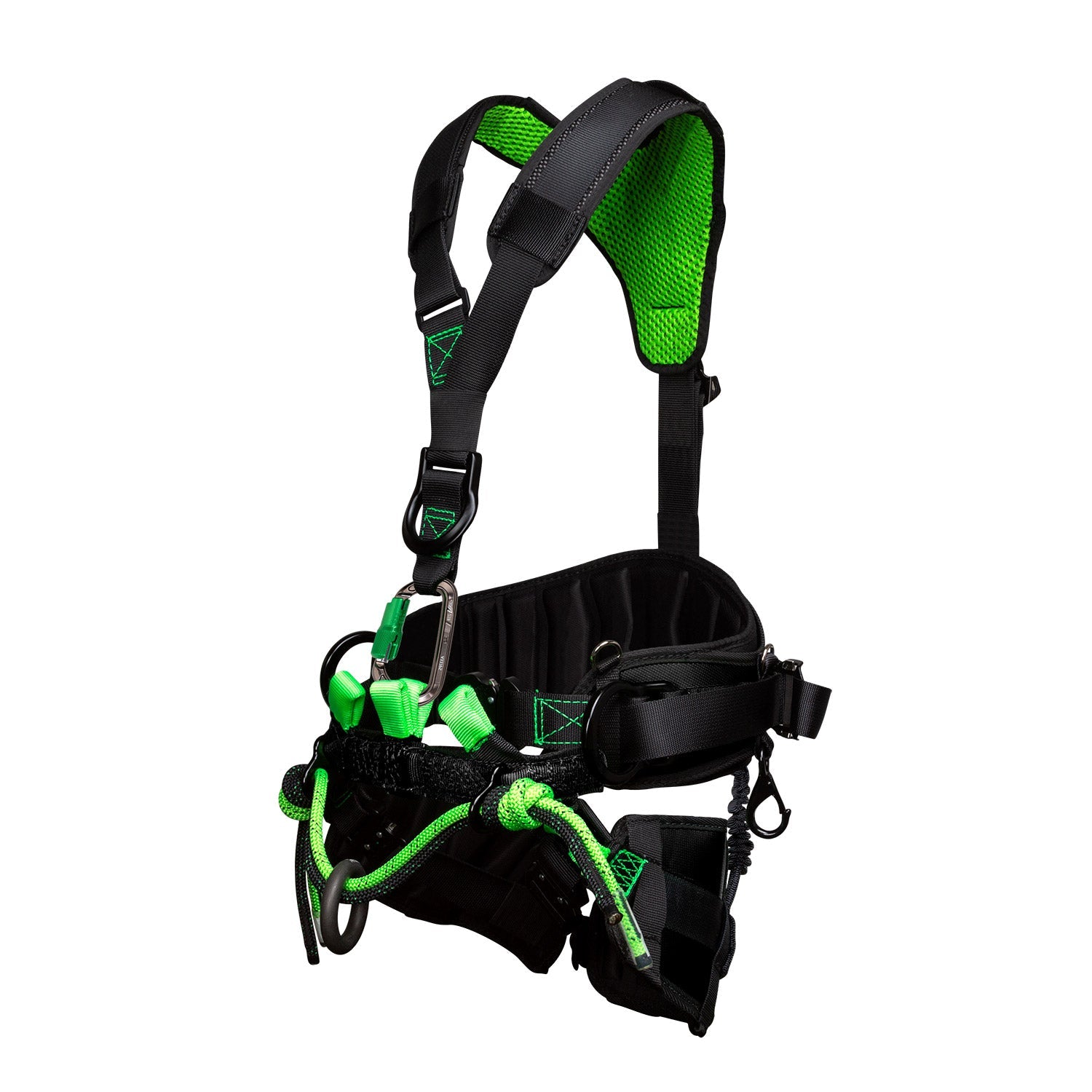

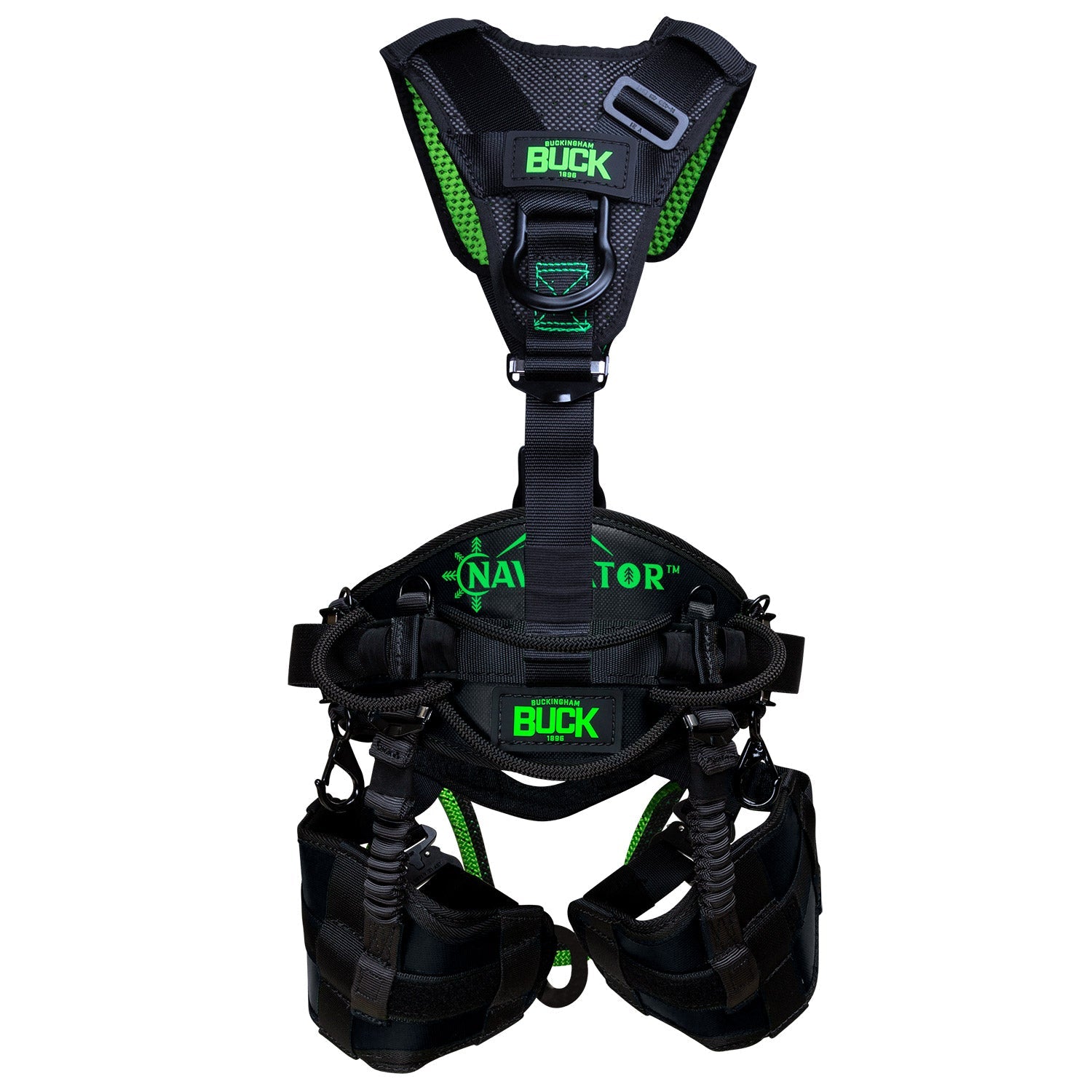

From fall arrest, to fall restraint, to work positioning, Buckingham’s Navigator™ tree saddle and harness combo covers it all. This saddle is the latest development in conjunction with the team at ArborMaster®.
This saddle-harness combination is rated for fall arrest so it can be used for fall protection in a bucket truck. This combo is ideal for those who like to transition from the bucket to the tree all while keeping you in compliance with OSHA standards.
Product usually ships in 7-14 days.
Features:
- Designed to fit a range of climbing styles and motions.
- 4 elastic keepers make for a snug fit and limit loose webbing from your adjustment points from getting in the way of work or climbing.
- Lightweight: just under 8 lbs.
- Lightweight aluminum attachment carabiner for the harness.
- Full floating suspension ring.
- Specially designed air-flow leg pads to properly support you while suspended or positioning.
- Dual rope bridge or option for a segmented pocket dual rope bridge.
- Specially designed for DRT and SRT.
- Cool-Flow™ shoulder padding that is extremely comfortable.
- Lightweight aluminum dorsal & sternal D-rings.
Product Specifications:
| Product Number: | 1470H5 |
| Product Name: | The Navigator™ with Retro ‘Y” Harness |
| Saddle Specs: | |
| Model Number: | 1470 (S-X) |
| Product Name: | Navigator Saddle |
| Waist Strap Connection Type: | Quick Connect Buckle |
| Suspension Adjustment Type: | Friction Buckles |
| Leg Strap Connection Type: | Quick Connect Buckles |
| Buckle Material: | Aluminum |
| Number of Dee Rings: | 2 |
| D-ring Material: | Aluminum |
| Belt Strap Material: | Nylon |
| Back Pad Material: | Compression Molded Padding |
| Accessory Snap / Ring: | Yes |
| Floating Suspension Ring: | Yes (5000 lbs. 1-7/8″ Eye Aluminum Ring) |
| Bridge Type: | Double Rope Bridge (3/8" Static Line ) |
| Bridge Length: | 40" |
| Suspender Attachment Rings: | Yes |
| Gear Loops/Hangers: | Yes (4) |
| Chainsaw Hanger Slots: | Yes |
| First Aid Pouch Storage | Yes |
| Back Pad Width: | 8″ |
| Waist Strap Width: | 1 3/4″ |
| Thread / Stitching: | Nylon |
| Product Type: | Work Position |
| User Weight Capacity: | 350 lbs. |
| Weight: | 6.15 lbs. |
| Standards: | ASTM F887 |
| Made in the USA?: | Yes |
| Retro Harness Specs: | |
| Product Name: | Navigator™ Retro Fit "Y" Style Harness (REH5) |
| Part Number: | REH5 |
| Material: | Nylon Web |
| Thread Stitching: | Nylon |
| Torso Adjustment: | Yes |
| Dorsal Attachment: | Aluminum D-ring |
| Sternal Attachment | Aluminum D-ring |
| Shoulder Pads: | Yes |
| Shoulder Pad Type: | Nylon Webbing / Elastic /Cool-Flow™ Padding |
| Harness Type: | Y |
| Retrieval Attachments: | No |
| Saddle Attachments: | Aluminum Carabiner / Nylon Web w/ Friction Buckle |
| Size: | One size fits most |
| Product Type: | Fall Arrest | Fall Restraint | Suspension | Work Positioning |
| User Weight Capacity: | Rated to 420 lbs. when used with equivalently rated accessories. |
| Weight: | 1.62 lbs. |
| Made in the USA?: | Yes |
Instructions & Warnings:
Saddle Instructions
REH5 “Y” STYLE RETRO FIT HARNESS INSTRUCTIONS & WARNINGS
