TEMPORARY CUTOUT TOOLS
Regular price
$636.16
Sale price
$636.16
Regular price
Unit price
TEMPORARY CUTOUT TOOLS
Product description
Shipping & Return
Product reviews
Temporary Cutout Tools are the best tools to provide fuse protection during live-line maintenance. The brass stud allows the connection of a temporary jumper. Conductor range: #6 solid copper .162 – 1033 kcmil, ACSR 1.25″.
Contact us if you have any questions.
TEMPORARY CUTOUT TOOLS

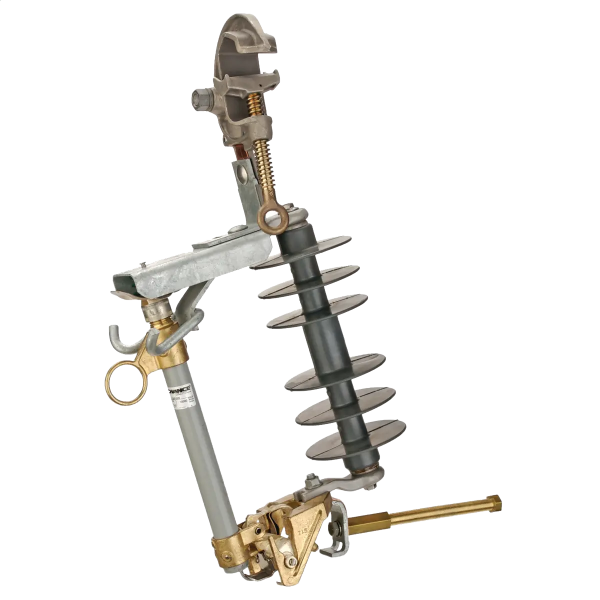

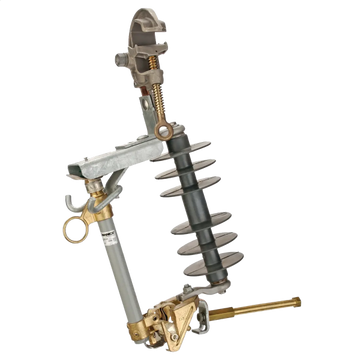

To provide fuse protection during live-line maintenance, the temporary cutout tool simply clamps onto primary conductor with a Grip-All clampstick. Brass stud at lower end accepts clamp on temporary tap jumper. Insultated bushing and hot parts are from Chance Type C-Polymer cutouts: Upper contact with integral sleet shield and hooks for operation by loadbreak tool and lower trunnion of cast bronze. Fusetube must be fitted with fuselink rated no larger than 100 amps.
- To provide fuse protection during live-line maintenance, temporary cutout tool simply clamps onto primary conductor with a Grip-All clampstick
- Brass stud at lower end accepts clamp on temporary tap jumper
- Insulated bushing and hot parts are from Chance Type C-Polymer cutouts
- Upper contact with integral sleet shield and hooks for operation by loadbreak tool and lower trunnion of cast bronze
- Fusetube must be fitted with fuselink rated no larger than 100 amps
- Available in ratings for 15kV and 27kV systems
- Tools come with or without a pivot-lever closing device
- 250 in.-lb. torque for clamp eyescrew
- Includes tap stud with 1/2″ diameter
