Switchblade™ Quad
Switchblade™ Quad

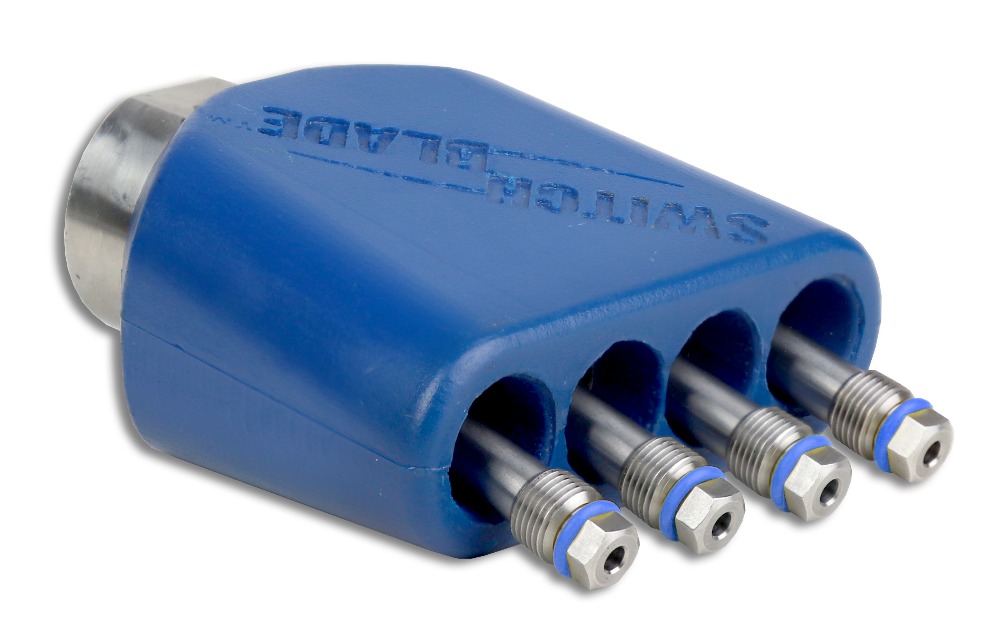

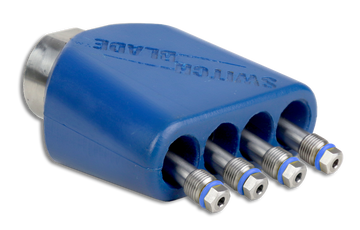

Switchblade™ Quad Static, 0-Degree Nozzle
The Switchblade Quad nozzle is designed and engineered for the rugged Hydro-Excavation industry. These heavy-duty, high-impact nozzles allow you to cut through dirt faster while using dramatically less water.
It's (4) 0-degree solid stream provides greater impingement, allowing you to cut through soil faster while using dramatically less water. The Switchblade’s long, linear flow path is ideally suited for trenching applications.
Switchblade is also available in 1 (Ace) and 2 (Deuce) 0-degree solid streams.
Maximum Inlet Pressure: 4000 PSI (276 Bar)
Maximum Water Temperature: 180° F (+82° C)
Housing Material: Stainless Steel
Coating Material: Hytrel
Connection Thread: 1/2" NPT Inlet, 30 Mesh Screen
*Stainless steel thread tape is required for pill assembly.
| Nozzle Size |
PART# |
MFR# |
| 4.0 |
20022291 |
1002889 |
| 6.0 |
20022294 |
1002949 |
| 8.0 |
20022277 |
1001927 |
| 10.0 |
20022278 |
1001928 |
| 12.0 |
20022295 |
1002950 |
| 14.0 |
20022279 |
1001929 |
