Stringing Block - Spring Gate
Stringing Block - Spring Gate

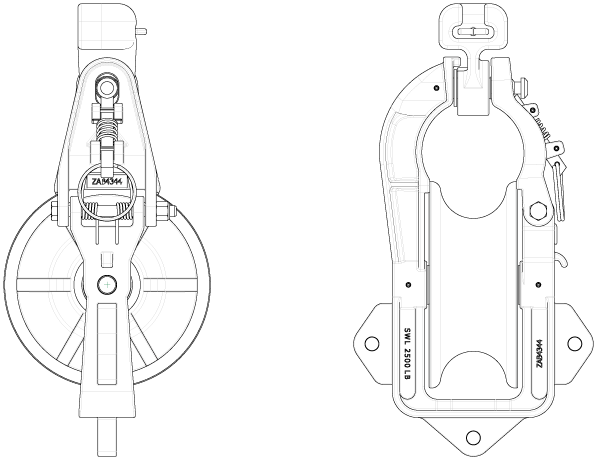

The ZAB4344 is our spring gate 7” aluminium distribution stringing block. This block is used for the transfer or replacement of aerial conductors. Its low friction bearings deliver high efficiency, which helps to maximise stringing distances whilst minimising pulling tensions and reducing the load on stringing equipment.
The gate has been designed for use with hot stick and/or hand operation and can be locked in the open position to allow the linesman to freely remove the conductor. Once the gate is released, the gate closes and locks automatically. The ZAB4344 has three mounting positions and is compatible with Slingco’s crossarm bracket options and ball clevis attachments.
Features and Benefits
- Lightweight, durable aluminum
- Low-friction bearings
- Crossarm bracket and ball clevis attachments also available
Specifications
| Part Number | Description | Weight (kg) | WLL (kg) | Height (mm) | Sheave Size (mm) | Bottom of Groove (mm) | Groove Radius (mm) | Weight (lb) | WLL (lb) | Height (in) | Sheave Size (in) | Bottom of Groove (in) | Groove Radius (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZAB4344 | 7” Flip Top Aluminum Distribution Block | 3.76 | 1,134 | 384.2 | 177.8 | 114.3 | 57.15 | 9.2 | 2,500 | 15.344 | 7 | 4.5 | 2.25 |
