Stainless Steel Connector/Box Grips
Regular price
$27.24
Sale price
$27.24
Regular price
Unit price
Stainless Steel Connector/Box Grips
Product description
Shipping & Return
Product reviews

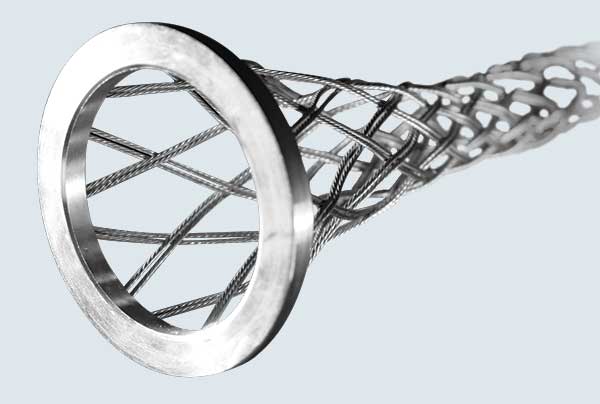

Dual Weave – these grips are designed with a ring to support electric cabling from termination point to reduce strain on the connections. 304 stainless steel.
Features and Benefits
- Dual weave lattice
- Made from 304 Stainless steel
- Reduces strain on electrical termination point connections
Specifications

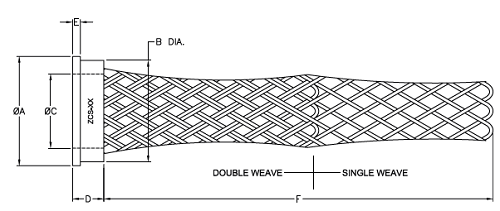

| Part Number | Cable dia min (mm) | Cable dia max (mm) | Ø A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Approx. Breaking Strength (kg) | Cable dia min (in) | Cable dia max (in) | Ø A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | Approx. Breaking Strength (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZCS2208 | 5.1 | 6.4 | 31.8 | 28.4 | 7.9 | 7.1 | 3.2 | 76 | 225 | 0.2 | 0.25 | 1.25 | 1.12 | 0.31 | 0.281 | 0.125 | 3 | 500 |
| ZCS2209 | 7.9 | 9.5 | 31.8 | 28.4 | 11.1 | 7.1 | 3.2 | 102 | 340 | 0.31 | 0.375 | 1.25 | 1.12 | 0.437 | 0.281 | 0.125 | 4 | 750 |
| ZCS2210 | 10.4 | 12.7 | 31.8 | 28.4 | 14.3 | 7.1 | 3.2 | 127 | 340 | 0.41 | 0.5 | 1.25 | 1.12 | 0.562 | 0.281 | 0.125 | 5 | 750 |
| ZCS2211 | 12.7 | 15.9 | 31.8 | 28.4 | 17.4 | 7.1 | 3.2 | 152 | 540 | 0.5 | 0.625 | 1.25 | 1.12 | 0.687 | 0.281 | 0.125 | 6 | 1,200 |
| ZCS2212 | 15.5 | 19.1 | 31.8 | 28.4 | 20.6 | 7.1 | 3.2 | 178 | 540 | 0.61 | 0.75 | 1.25 | 1.12 | 0.812 | 0.281 | 0.125 | 7 | 1,200 |
| ZCS2213 | 18 | 22.2 | 31.8 | 28.4 | 23.8 | 7.1 | 3.2 | 178 | 450 | 0.71 | 0.875 | 1.25 | 1.12 | 0.937 | 0.281 | 0.125 | 7.5 | 1,000 |
| ZCS2214 | 19.6 | 23.8 | 31.8 | 28.4 | 24.1 | 5.6 | - | 203 | 360 | 0.77 | 0.937 | 1.25 | 1.12 | 0.948 | 0.219 | - | 8 | 800 |
| ZCS2215 | 7.9 | 9.5 | 44.5 | 41.1 | 11.1 | 7.1 | 3.2 | 102 | 225 | 0.31 | 0.375 | 1.75 | 1.62 | 0.437 | 0.281 | 0.125 | 4 | 500 |
| ZCS2216 | 10.4 | 12.7 | 44.5 | 41.1 | 14.3 | 7.1 | 3.2 | 127 | 340 | 0.41 | 0.5 | 1.75 | 1.62 | 0.562 | 0.281 | 0.125 | 5 | 750 |
| ZCS2217 | 12.7 | 15.9 | 44.5 | 41.1 | 17.4 | 7.1 | 3.2 | 152 | 450 | 0.5 | 0.625 | 1.75 | 1.62 | 0.687 | 0.281 | 0.125 | 6 | 1,000 |
| ZCS2218 | 15.5 | 19.1 | 44.5 | 41.1 | 20.6 | 7.1 | 3.2 | 178 | 450 | 0.61 | 0.75 | 1.75 | 1.62 | 0.812 | 0.281 | 0.125 | 7 | 1,000 |
| ZCS2219 | 18 | 22.2 | 44.5 | 41.1 | 23.8 | 7.1 | 3.2 | 190 | 450 | 0.71 | 0.875 | 1.75 | 1.62 | 0.937 | 0.281 | 0.125 | 7.5 | 1,000 |
| ZCS2220 | 20.8 | 25.4 | 44.5 | 41.1 | 27 | 7.1 | 3.2 | 215 | 450 | 0.82 | 1 | 1.75 | 1.62 | 1.062 | 0.281 | 0.125 | 8.5 | 1,000 |
| ZCS2221 | 23.2 | 28.6 | 44.5 | 41.1 | 30.1 | 7.1 | 3.2 | 229 | 680 | 0.915 | 1.125 | 1.75 | 1.62 | 1.187 | 0.281 | 0.125 | 9 | 1,500 |
| ZCS2222 | 25.9 | 31.8 | 44.5 | 41.1 | 33.3 | 7.1 | 3.2 | 254 | 450 | 1.02 | 1.25 | 1.75 | 1.62 | 1.312 | 0.281 | 0.125 | 10 | 1,000 |
| ZCS2223 | 30 | 36.5 | 44.5 | 41.1 | 36.8 | 5.6 | - | 265 | 225 | 1.18 | 1.437 | 1.75 | 1.62 | 1.448 | 0.219 | - | 10.5 | 500 |
| ZCS2224 | 12.7 | 15.9 | 57.2 | 53.8 | 17.4 | 7.1 | 3.2 | 152 | 450 | 0.5 | 0.625 | 2.25 | 2.12 | 0.687 | 0.281 | 0.125 | 6 | 1,000 |
| ZCS2225 | 18 | 22.2 | 57.2 | 53.8 | 23.8 | 7.1 | 3.2 | 178 | 450 | 0.71 | 0.875 | 2.25 | 2.12 | 0.937 | 0.281 | 0.125 | 7.5 | 1,000 |
| ZCS2226 | 23.2 | 28.6 | 57.2 | 53.8 | 30.1 | 7.1 | 3.2 | 229 | 680 | 0.915 | 1.125 | 2.25 | 2.12 | 1.187 | 0.281 | 0.125 | 9 | 1,500 |
| ZCS2227 | 25.9 | 31.8 | 57.2 | 53.8 | 33.3 | 7.1 | 3.2 | 254 | 815 | 1.02 | 1.25 | 2.25 | 2.12 | 1.312 | 0.281 | 0.125 | 10 | 1,800 |
| ZCS2228 | 31 | 38.1 | 57.2 | 53.8 | 39.7 | 7.1 | 3.2 | 279 | 815 | 1.22 | 1.5 | 2.25 | 2.12 | 1.562 | 0.281 | 0.125 | 11 | 1,800 |
| ZCS2229 | 36.3 | 44.5 | 57.2 | 53.8 | 46 | 7.1 | 3.2 | 330 | 315 | 1.43 | 1.75 | 2.25 | 2.12 | 1.812 | 0.281 | 0.125 | 13 | 700 |
| ZCS2230 | 30 | 49.2 | 57.2 | 53.8 | 49.5 | 5.6 | - | 365 | 155 | 1.18 | 1.937 | 2.25 | 2.12 | 1.948 | 0.219 | - | 14.5 | 350 |
| ZCS2231 | 20.8 | 25.4 | 69.9 | 66.5 | 27 | 7.1 | 3.2 | 215 | 450 | 0.82 | 1 | 2.75 | 2.62 | 1.062 | 0.281 | 0.125 | 8.5 | 1,000 |
| ZCS2232 | 25.9 | 31.8 | 69.9 | 66.5 | 33.3 | 7.1 | 3.2 | 254 | 680 | 1.02 | 1.25 | 2.75 | 2.62 | 1.312 | 0.281 | 0.125 | 10 | 1,500 |
| ZCS2233 | 31 | 38.1 | 69.9 | 66.5 | 39.7 | 7.1 | 3.2 | 279 | 680 | 1.22 | 1.5 | 2.75 | 2.62 | 1.562 | 0.281 | 0.125 | 11 | 1,500 |
| ZCS2234 | 36.3 | 44.5 | 69.9 | 66.5 | 46 | 7.1 | 3.2 | 330 | 815 | 1.43 | 1.75 | 2.75 | 2.62 | 1.812 | 0.281 | 0.125 | 13 | 1,800 |
| ZCS2235 | 41.7 | 50.8 | 69.9 | 66.5 | 52.4 | 7.1 | 3.2 | 381 | 815 | 1.64 | 2 | 2.75 | 2.62 | 2.062 | 0.281 | 0.125 | 15 | 1,800 |
| ZCS2236 | 46.7 | 57.2 | 69.9 | 66.5 | 58.7 | 7.1 | 3.2 | 406 | 680 | 1.84 | 2.25 | 2.75 | 2.62 | 2.312 | 0.281 | 0.125 | 16 | 1,500 |
| ZCS2237 | 52.4 | 62.7 | 69.9 | 66.5 | 63.2 | 5.6 | - | 444 | 680 | 2.062 | 2.469 | 2.75 | 2.62 | 2.489 | 0.219 | - | 17.5 | 1,500 |
| ZCS2238 | 34.9 | 44.5 | 82.6 | 79.2 | 46 | 7.1 | 3.2 | 330 | 905 | 1.375 | 1.75 | 3.25 | 3.12 | 1.812 | 0.281 | 0.125 | 13 | 2,000 |
| ZCS2239 | 44.5 | 50.8 | 82.6 | 79.2 | 52.4 | 7.1 | 3.2 | 381 | 905 | 1.75 | 2 | 3.25 | 3.12 | 2.062 | 0.281 | 0.125 | 15 | 2,000 |
| ZCS2240 | 46.7 | 57.2 | 82.6 | 79.2 | 58.7 | 7.1 | 3.2 | 406 | 905 | 1.84 | 2.25 | 3.25 | 3.12 | 2.312 | 0.281 | 0.125 | 16 | 2,000 |
| ZCS2241 | 54 | 63.5 | 82.6 | 79.2 | 65.1 | 7.1 | 3.2 | 444 | 905 | 2.125 | 2.5 | 3.25 | 3.12 | 2.562 | 0.281 | 0.125 | 17.5 | 2,000 |
| ZCS2242 | 63.5 | 73 | 82.6 | 79.2 | 74.1 | 5.6 | - | 483 | 905 | 2.5 | 2.875 | 3.25 | 3.12 | 2.918 | 0.219 | - | 19 | 2,000 |
