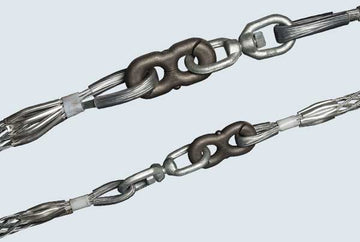

Splicing Grips - Rotating Swivel Link
Splicing Grips - Rotating Swivel Link
Slingco Rotating Swivel Link Grips are perfect for stringing replacement wire and cable on equipment and in drilling or rigging systems. Not recommended for use in overhead stringing applications. Use the existing cable as a pull wire to string the replacement cable. These grips are available with differently sized grips for each side. Call for assistance in selecting the proper grip. Link opens for easy installation and adjustment. Made of Galvanized Steel.
Features and Benefits
- Suitable for drilling rigging systems
- Link opens for easy installation and adjustment
- Can be used with different sized grips on each side
Specifications
| Part Number | Range (mm) | Ø A Length (mm) | B Length (mm) | C Length (mm) | D Length (mm) | E Length (mm) | F Length (mm) | Approx. Break Load (kg) | Range (in) | B Length (in) | C Length (in) | D Length (in) | E Length (in) | F Length (in) | Approx. Break Load (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZCS3493 | 6 - 13 | 9.5 | 2,542 | 1,127 | 288 | 22 | 32 | 1,089 | 0.25 - 0.50 | 100.0 | 44.3 | 11.3 | 0.87 | 1.25 | 2,400 |
| ZCS3494 | 13 - 25 | 19 | 2,621 | 1,160 | 301 | 35 | 32 | 1,599 | 0.50 - 1.00 | 103.2 | 45.7 | 11.8 | 1.38 | 1.25 | 3,526 |
| ZCS3495 | 25 - 38 | 32 | 2,654 | 1,160 | 334 | 41 | 41 | 2,300 | 1.00 - 1.50 | 104.5 | 45.7 | 13.1 | 1.61 | 1.61 | 5,070 |
| ZCS3496 | 38 - 51 | 44.5 | 2,673 | 1,160 | 353 | 41 | 51 | 3,629 | 1.50 - 2.00 | 105.2 | 45.7 | 13.9 | 1.61 | 2.0 | 8,000 |
| ZCS3497 | 51 - 70 | 60.5 | 2,673 | 1,160 | 353 | 41 | 51 | 4,537 | 2.00 - 2.75 | 105.2 | 45.7 | 13.9 | 1.61 | 2.0 | 10,000 |
| ZCS3498 | 70 - 90 | 80 | 2,673 | 1,160 | 353 | 41 | 51 | 4,537 | 2.75 - 3.50 | 105.2 | 45.7 | 13.9 | 1.61 | 2.0 | 10,000 |
| ZCS3499 | 89 - 108 | 98.5 | 2,753 | 1,200 | 353 | 41 | 51 | 4,537 | 3.50 - 4.25 | 108.4 | 45.7 | 13.9 | 1.61 | 2.0 | 10,000 |
