Pole Puller
Pole Puller
Slingco’s pole puller is a must have to comply with today’s safe working practices, reducing the potential for boom damage and greatly reducing the potential of personal injury. The pole puller is easily assembled and disassembled.

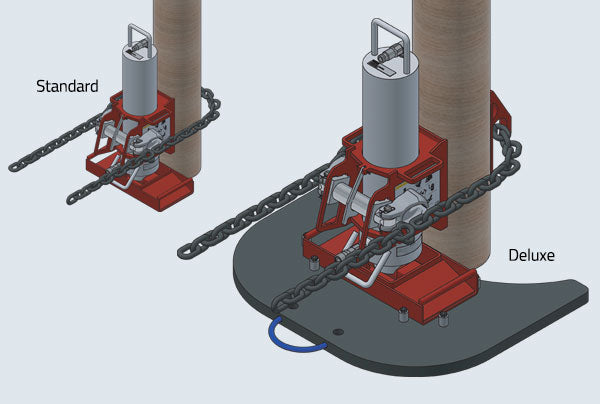

The standard pole puller system is composed of four pieces and the deluxe system six pieces. These configurations make the Slingco pole puller easy to handle and lighter weight than typical units on the market.
The Slingco Deluxe Pole Puller system includes the pole puller pad and back plate weldment. The pole puller pad has studs which keep the base plate in the optimum position when pulling poles. The back plate weldment has angled teeth to increase hold on the pole during extraction.
Slingco’s pole puller offers a low point of attachment making it easy to remove even broken or cut poles.
Note: *hydraulic cylinder comes with flush face fittings installed.
Features and Benefits
- Low point of attachment
- 50,120 lbs lift at max pressure
- Deluxe System complete with back plate weldment & pad
- Combined
Specifications
| Part Number | Description | Max Operating Pressure (PSI) | Recommended Flow Rate (GPM) | Lift at Max Pressure (lb) | Lift at Max Pressure (kg) | Total Weight (lb) | Total Weight (kg) |
|---|---|---|---|---|---|---|---|
| TPE09386 | DELUXE Pole Puller System consists of: hydraulic cylinder*, chain, base weldment, swivel assembly PLUS back plate weldment, and pole puller pad. | 2,800 | 4 - 8 | 50,120 | 22,734 | 157 | 71.2 |
| TPE10551 | STANDARD Pole Puller System consists of: hydraulic cylinder*, chain, base weldment, swivel assembly. | 2,800 | 4 - 8 | 50,120 | 22,734 | 128 | 58 |
| TPE09378 | Pole Puller Pad | 23 | 10.43 | ||||
| TPE09367 | Back Plate Weldment | 6 | 2.72 |
View manufacturer product information
