Line Pulling Swivel - Galvanized
Line Pulling Swivel - Galvanized
Slingco Line Swivels are designed to the highest specifications for underground and overhead pulling applications. All swivels are stringently quality tested and inspected to ensure optimum reliability and performance.
Note: 3:1 factor of safety and 5:1 factor of safety provided for reference only
Note: The above is intended as a rough guide. The recommended working load should be determined by the competent person(s) using the cable grip and/or Slingco swivel.
Features and Benefits
- releases torsion
- Prevents damage to cable or grip
- suitable for underground or overhead applications
- straight line pulling only
- Swivel and Cable Grip match-up - Imperial
- Swivel and Cable Grip match-up - Metric
Specifications

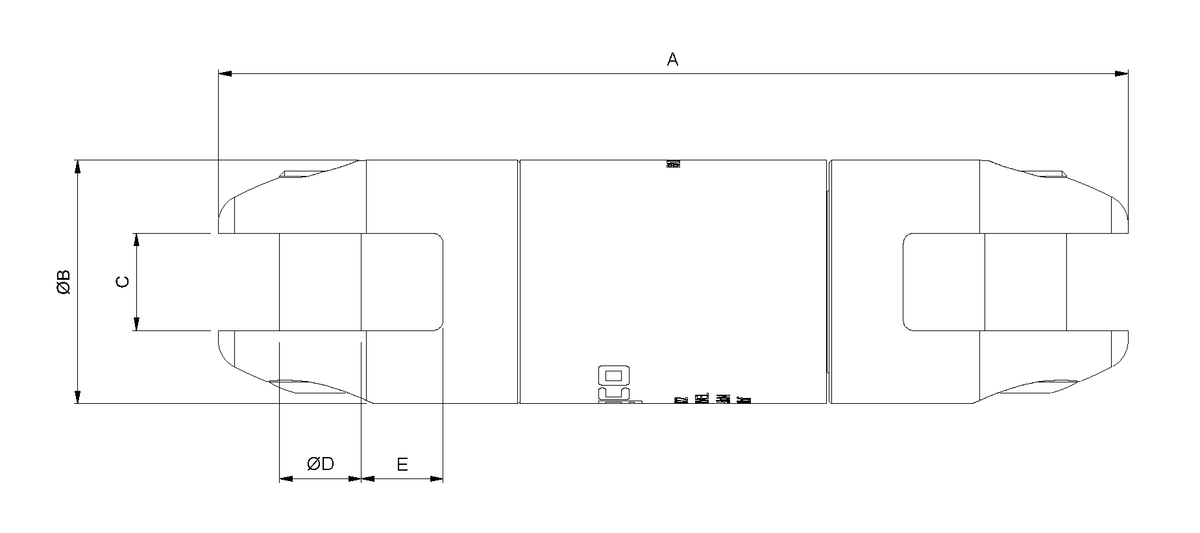

| Part Number | Safe Working Load - 3:1 (lb) | Safe Working Load - 5:1 (lb) | A Length (in) | Ø B (in) | C (in) | Ø D Pin (in) | E Recess (in) | Weight (lb) | Safe Working Load - 3:1 (kN) | Safe Working Load - 5:1 (kN) | A Length (mm) | Ø B (mm) | C (mm) | Ø D Pin (mm) | E Recess (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZSW2649 | 4,000 | 2400 | 4.74 | 1.26 | 0.61 | 0.37 | 0.37 | 1.01 | 17.8 | 10.6 | 120.5 | 32 | 15.5 | 13.3 | 9.5 | 0.46 |
| ZSW2929 | 8,000 | 4,800 | 5.38 | 1.5 | 0.63 | 0.61 | 0.43 | 1.75 | 35.5 | 21.3 | 136.6 | 38 | 16 | 15.5 | 11 | 0.80 |
| ZSW6122 | 10,000 | 6,000 | 7 | 1.87 | 0.75 | 0.63 | 0.63 | 3.72 | 44.5 | 26.7 | 178 | 47.6 | 19.05 | 16 | 16 | 1.69 |
| ZSW6123 | 16,000 | 9,600 | 10.2 | 2.44 | 1 | 1.12 | 0.87 | 9.19 | 71.2 | 42.7 | 259 | 62 | 25.4 | 28.5 | 22 | 4.17 |
| ZSW2857 | 30,000 | 18,000 | 11.13 | 2.5 | 1 | 1.13 | 0.87 | 10.44 | 134 | 80 | 282.6 | 63.5 | 25.4 | 28.62 | 22 | 4.74 |
