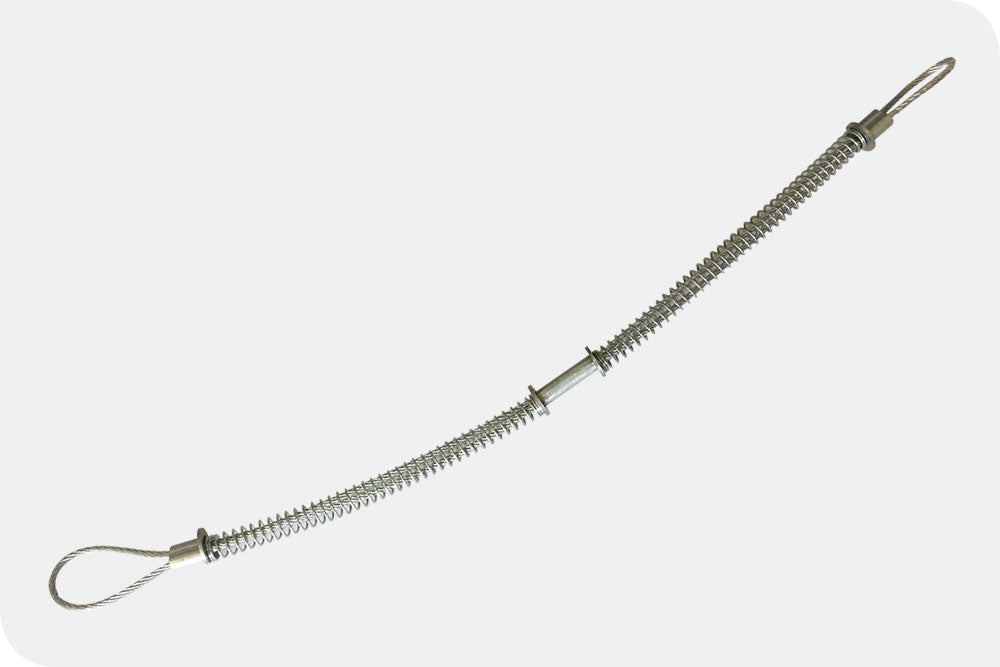

Hose Whip Restraint
Hose Whip Restraint
Prevent damage or injury from whipping action should an air hose disengage from coupling. The strong steel cable prevents hose-whip accidents in the event of hose or coupling failure.
Easily fitted spring loaded loops grip the hose firmly. Select the hose whip restraint that matches your air hose diameter. For hose diameters from 1/4" to 3".
Installation is quick and easy and once installed provides peace of mind.
Features and Benefits
- Easy to install
- Low cost safety solution
- For air hoses up to 200psi (5 to 1 safety factor)
- Hose to Hose
Specifications

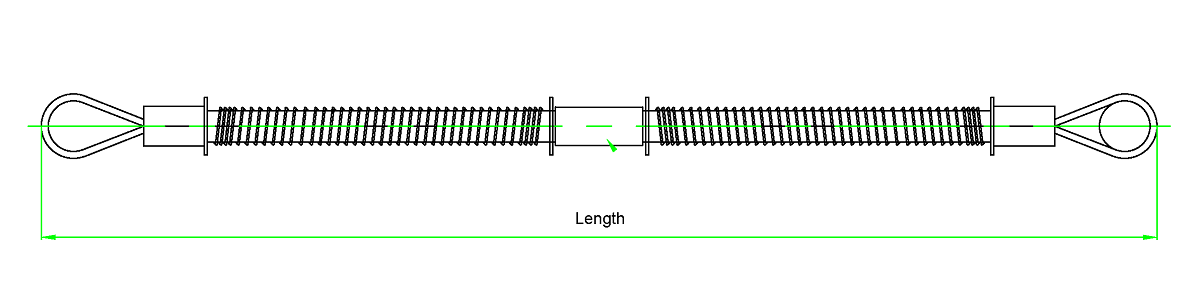

| Part Number | Hose Range in (mm) | Wire Thickness mm | Length in (mm) | Material | Max WP Psi | WLL kN |
|---|---|---|---|---|---|---|
| ZWR14271 | 3/8 - 1 1/4 (10-32) | 3.5 | 22 (550) | Galvanized | 200 | 6.5 |
| ZWR11534 | 1/2 - 1 1/4 (13-32) | 3 | 22 (550) | Galvanized | 200 | 5.7 |
| ZWR11530 | 1/2 - 1 1/4 (13-32) | 3 | 22 (550) | Stainless Steel | 200 | 5.7 |
| ZWR14272 | 1 1/4 - 2 (32 - 50) | 6 | 33 (850) | Galvanized | 200 | 17.6 |
| ZWR11535 | 1 1/2 - 3.0 (38-76) | 6 | 42 (1060) | Galvanized | 200 | 21.2 |
| ZWR14273 | 2 1/2 - 4 (63 - 100) | 6 | 45 (1150) | Galvanized | 200 | 17.6 |
| ZWR14274 | 4 - 6 (100 - 150) | 10 | 45 (1150) | Galvanized | 200 | 49.0 |
