Features and Benefits
- Use to counter rotational forces caused by boring
- Designed for horizontal directional drilling
- Able to grease between uses to remove dirt and contaminants
- Made of carbon steel and zinc passivated for durability
Specifications

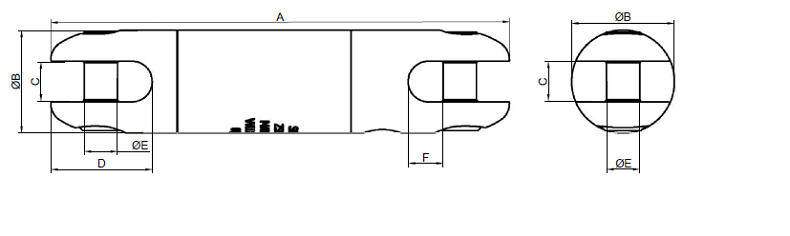

| Part Number | Safe Working Load 3:1 (lb) | A (in) | Ø B (in) | C (in) | D (in) | Ø E (in) | F (in) | Safe Working Load 3:1 (kN) | A (mm) | Ø B (mm) | C (mm) | D (mm) | Ø E (mm) | F (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZSW11133 | 8,500 | 7.24 | 1.62 | 0.63 | 1.60 | 0.53 | 0.55 | 37.8 | 183.8 | 41.2 | 16.0 | 40.6 | 13.4 | 13.9 |
| ZSW11134 | 10,000 | 8.32 | 2.00 | 0.75 | 1.79 | 0.59 | 0.75 | 44.4 | 211.3 | 50.8 | 19.0 | 45.0 | 14.9 | 19.0 |
