4K Strap Hoist
4K Strap Hoist

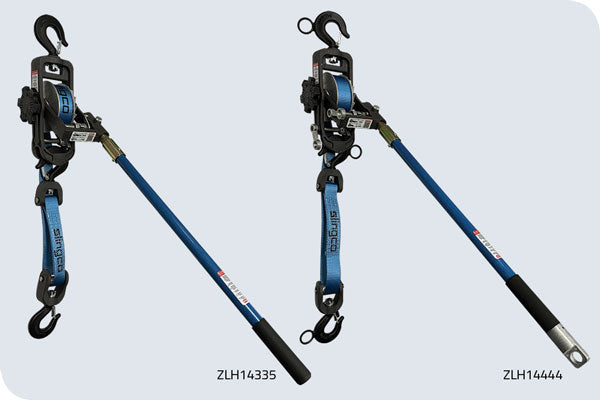

The Slingco 4K Strap Hoist features a hi-viz blue strap for easy identification. In single line mode capacity is 2K. When used in double line mode capacity is 4K. The 4k Strap Hoist has a pressure die cast drum for professional look and smooth finish to minimize the risk of strap fraying.
The Strap Hoist has three operating positions: lift/pull, lower/release, and freewheeling. Strap Hoists come in standard and hot stick operable versions.
Features and Benefits
- ASME B.30.21 compliant
- 125% working load tested
- Interlocking pawl lever system
- Replacement parts
- readily available
- Hot stick operable version
- Hoist Assemblies
Specifications
| Part Number | Type | Single Line Capacity lb (kg) | Single Line Lift ft (m) | Single Line Headroom in (mm) | Double Line Capacity lb (kg) | Double Line Lift ft (m) Double Line | Headroom in (mm) | Tool Weight lb (kg) |
|---|---|---|---|---|---|---|---|---|
| ZLH14335 | Standard | 2,000 (907) | 11 (3.4) | 16.5 (419.1) | 4,000 (1,814) | 5.5 (1.7) | 22.5 (571.5) | 14.28 (6.48) |
| ZLH14444 | Hot stick operated | 2,000 (907) | 11 (3.4) | 16.5 (419.1) | 4,000 (1,814) | 5.5 (1.7) | 22.5 (571.5) | 14.89 (6.75) |
