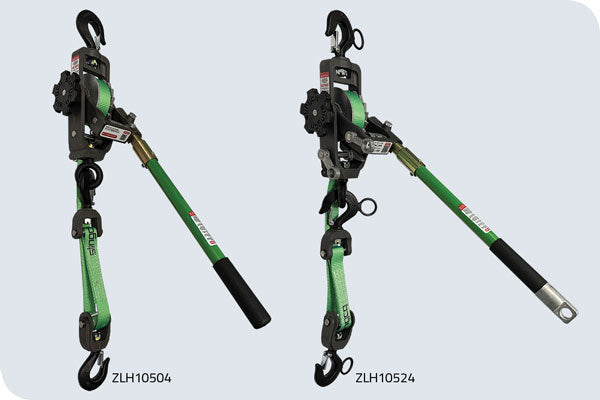

3k Strap Hoist
3k Strap Hoist
Use the Slingco 3k Strap Hoist to splice, dead end, and sag lines. The Slingco 3k Strap Hoist features an interlocking pawl lever system with dual pawl springs for controlled tightening and releasing of the strap and to ensure the hoist is engaged while in use. The strap hoist complies with ASME B-30-21 standard and all units are tested to 125% of load.
The Slingco 3k Strap Hoist uses pressure die castings for a professional look, consistent material properties, and smooth finish. The strap is hi-viz bright green in color for easy visibility. The strap hoist has three operating positions: lift/pull, lower/release, and freewheeling.
Features and Benefits
- ASME B-30-21 compliant
- 125% working load tested
- Hi-viz green strap
- Interlocking pawl lever system
- Replacement parts readily available
- Hot stick operable version
- Hoist Assemblies
- Replacement Parts for Slingco Strap Hoists
Specifications
| Part Number | Type | Single Line Capacity lb (kg) | Single Line Lift ft (m) | Single Line Headroom in (mm) | Double Line Capacity lb (kg) | Double Line Lift ft (m) | Double Line Headroom in (mm) | Tool Weight lb (kg) | Description | Pack quantity | For ZLH10504 | For ZLH10524 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZLH10504 | Standard | 1,500 (680) | 10 (3) | 17.5 (444.5) | 3,000 (1,360) | 5 (1.5) | 22 (558.8) | 11.25 (5.1) | ||||
| ZLH10524 | Hot stick operated | 1,500 (680) | 10 (3) | 17.5 (444.5) | 3,000 (1,360) | 5 (1.5) | 22 (558.8) | 11.5 (5.22) | ||||
| ZLH13609 | Drum Casting | Pack of 1 | X | X | ||||||||
| ZLH13611 | Polyester Web | Pack of 1 | X | X | ||||||||
| ZLH13614 | Holding Pawl Casting | Pack of 10 | X | |||||||||
| ZLH13926 | ZLH13926 | Pack of 10 | X | |||||||||
| ZLH13615 | Holding Pawl Shaft | Pack of 1 | X | |||||||||
| ZLH13919 | Holding Pawl Shaft | Pack of 1 | X | |||||||||
| ZLH13608 | Nylon Wheel | Pack of 1 | X | X | ||||||||
| ZLH13610 | Drum Shaft | Pack of 1 | X | X | ||||||||
| ZLH13745 | Torsion Spring | Pack of 10 | X | X | ||||||||
| ZLH13620 | Ø 0.125" X 1.25" Roll Pin | Pack of 20 | X | X | ||||||||
| ZLH13621 | Ø 0.125" X 1.5" Roll Pin | Pack of 20 | X | X | ||||||||
| ZLH13591 | Main Frame Assembly | Pack of 1 | X | |||||||||
| ZLH13920 | Main Frame Assembly | Pack of 1 | X | |||||||||
| ZLH13560 | Hook With Latch | Pack of 1 | X | |||||||||
| ZLH13921 | Hook With Latch | Pack of 1 | X | |||||||||
| ZLH13562 | Eye Bolt | Pack of 1 | X | X | ||||||||
| ZLH13616 | Main Frame Roller | Pack of 1 | X | X | ||||||||
| ZLH13618 | Ø 0.25" X 2" Roll Pin | Pack of 20 | X | X | ||||||||
| ZLH13622 | 9/16"-12 Hex Slotted Nut | Pack of 10 | X | X | ||||||||
| ZLH13619 | Ø 0.125" X 0.875" Roll Pin | Pack of 20 | X | X | ||||||||
| ZLH13593 | Idler Roller Assembly | Pack of 1 | X | |||||||||
| ZLH13927 | Idler Roller Assembly | Pack of 1 | X | |||||||||
| ZLH13599 | Yoke Casting | Pack of 1 | X | X | ||||||||
| ZLH13597 | Yoke Roller Shaft | Pack of 1 | X | X | ||||||||
| ZLH13598 | Yoke Roller | Pack of 1 | X | X | ||||||||
| ZLH13561 | Latch Spares Kit | Pack of 10 | X | X | ||||||||
| ZLH13617 | Steel Retaining Ring | Pack of 20 | X | X | ||||||||
| ZLH13596 | Handle Assembly | Pack of 1 | X | |||||||||
| ZLH13929 | Handle Assembly | Pack of 1 | X | |||||||||
| ZLH13595 | Control Casting Assembly | Pack of 10 | X | X | ||||||||
| ZLH13594 | Swivel Shackle Assembly | Pack of 1 | X | |||||||||
| ZLH13928 | Swivel Shackle Assembly | Pack of 1 | X | |||||||||
| ZLH13592 | U-Frame Assembly | Pack of 1 | X | |||||||||
| ZLH13922 | U-Frame Assembly | Pack of 1 | X | |||||||||
| ZLH13563 | Loading Pawl Casting | Pack of 10 | X | |||||||||
| ZLH13924 | Loading Pawl Casting | Pack of 10 | X | |||||||||
| ZLH13564 | Loading Pawl Shaft | Pack of 1 | X | |||||||||
| ZLH13925 | Loading Pawl Shaft | Pack of 1 | X | |||||||||
| ZLH13565 | Reversing Spring | Pack of 10 | X | X | ||||||||
| ZLH13566 | Control Lever | Pack of 10 | X | |||||||||
| ZLH13923 | Control Lever | Pack of 10 | X | |||||||||
| ZLH13612 | U-Frame Casting | Pack of 1 | X | X | ||||||||
| ZLH13613 | Handle Locking Screw | Pack of 10 | X | X | ||||||||
| ZLH13918 | Hot Stick Lever | Pack of 1 | X |
