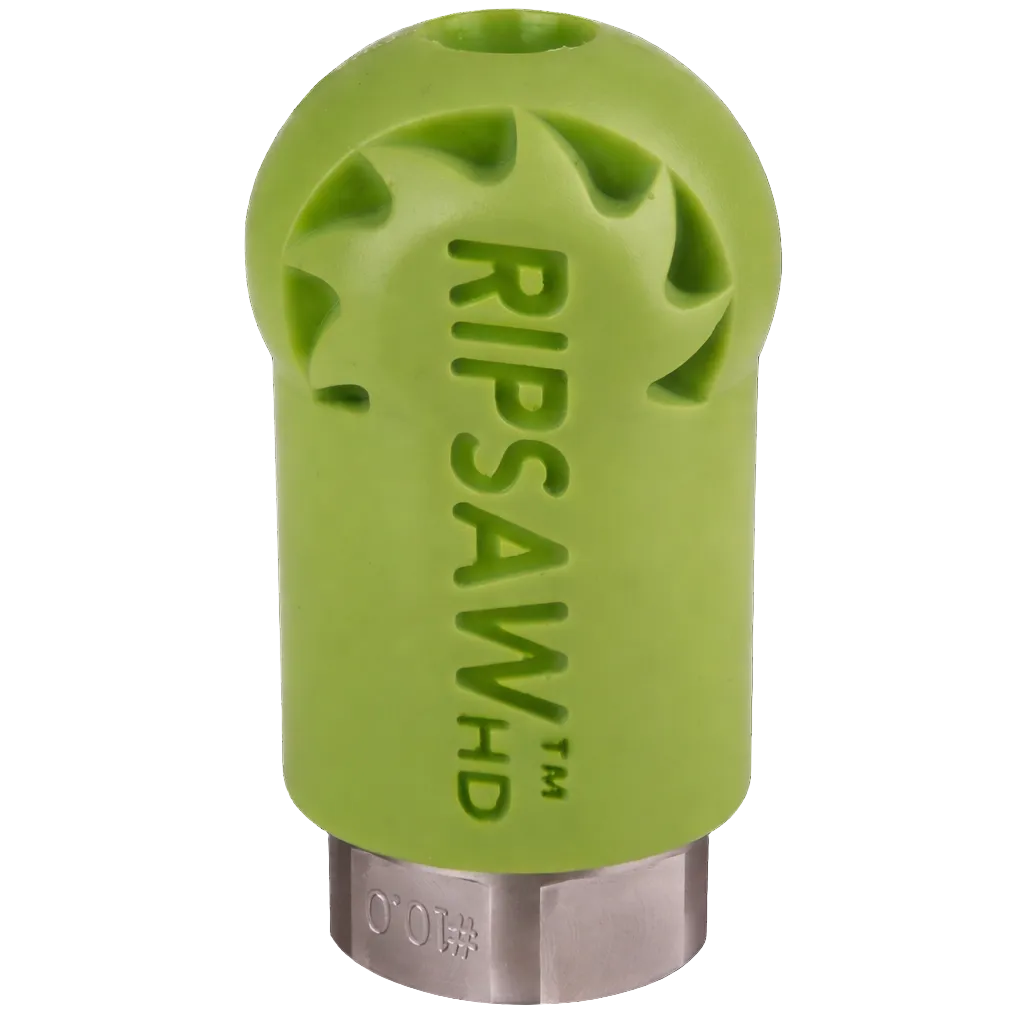

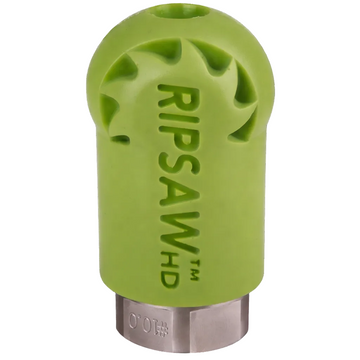

Ripsaw™ HD Rotating Turbo Nozzle

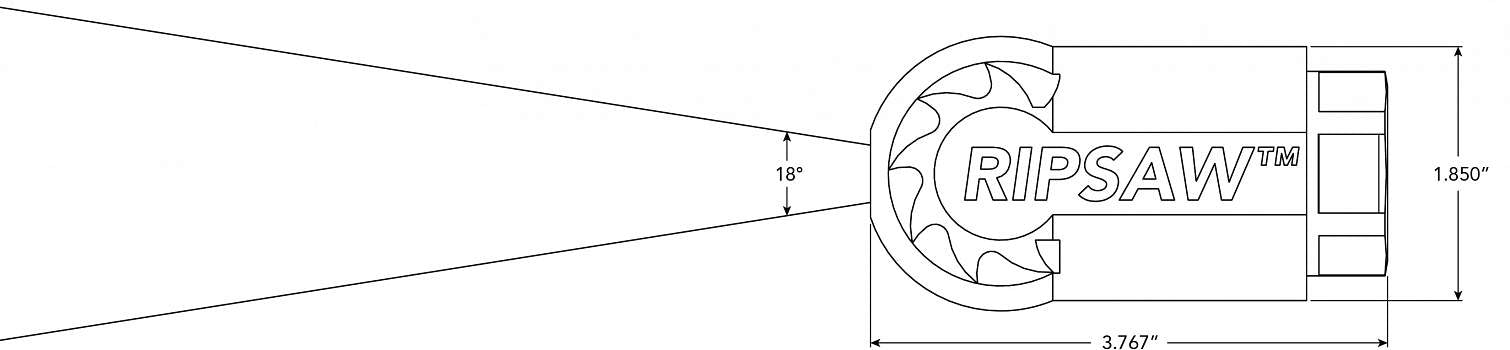

The Ripsaw HD blasts a 0-degree straight water stream at up to 3200 PSI while rotating at a high speed to provide an 18-degree cone of coverage. The cone-shaped flow pattern is ideally suited for potholing applications.
The upgraded new heavy-duty coating is a special formulation designed for use in extreme environments including frost, shale, and other rocky conditions while protecting users and sensitive underground utilities.
Minimum Inlet Pressure: 1,000 PSI (69 Bar)
Maximum Inlet Pressure: 3,200 PSI (220 Bar)
Maximum Water Temperature: 180°F (+82°C)
Housing Material: Stainless Steel
Coating Material: Hytrel
Nozzle Tip Material: Tungsten Carbide
Inlet Connection Thread: 1/2" FNPT
| Nozzle Size |
PART# |
MFR# |
| 3.0 | 20022380 |
1002719-030 |
| 4.0 | 20022381 |
1002719-040 |
| 5.0 | 20022382 |
1002719-050 |
| 6.0 | 20022383 |
1002719-060 |
| 8.0 | 20022384 |
1002719-080 |
| 10.0 | 20022385 | 1002719-100 |
| 12.0 | 20022386 |
1002719-120 |
Flow Rate Chart (GPM)
| Nozzle Size | 1000 PSI | 1500 PSI | 2000 PSI | 2500 PSI | 3000 PSI | 3200 PSI |
| 3.0 | 1.5 | 1.8 | 2.1 | 2.4 | 2.6 | 2.7 |
| 4.0 | 2.0 | 2.4 | 2.8 | 3.2 | 3.5 | 3.6 |
| 5.0 | 2.5 | 3.1 | 3.5 | 4.0 | 4.3 | 4.5 |
| 6.0 | 3.0 | 3.7 | 4.2 | 4.7 | 5.2 | 5.4 |
| 8.0 | 4.0 | 4.9 | 5.7 | 6.3 | 6.9 | 7.2 |
| 10.0 | 5.0 | 6.1 | 7.1 | 7.9 | 8.7 | 8.9 |
| 12.0 | 6.0 | 7.3 | 8.5 | 9.5 | 10.4 | 10.7 |
