OX BLOCK™ Clevis Top with Adjustable Sling - 50062AC-4
OX BLOCK™ Clevis Top with Adjustable Sling - 50062AC-4
Orders for 50062AC-4 received by 12:00/Noon EST ship same business day. After 12:00/Noon EST ship next business day. Other variants ship in 7-14 business days.
The OX BLOCK® is a rope snatchblock with an integrated friction bar used for:
- Hurtman/self-rescue
- Lowering
- Raising
- Snubbing loads.
**Handline hook and snap are not intended for human support.
Options Available:

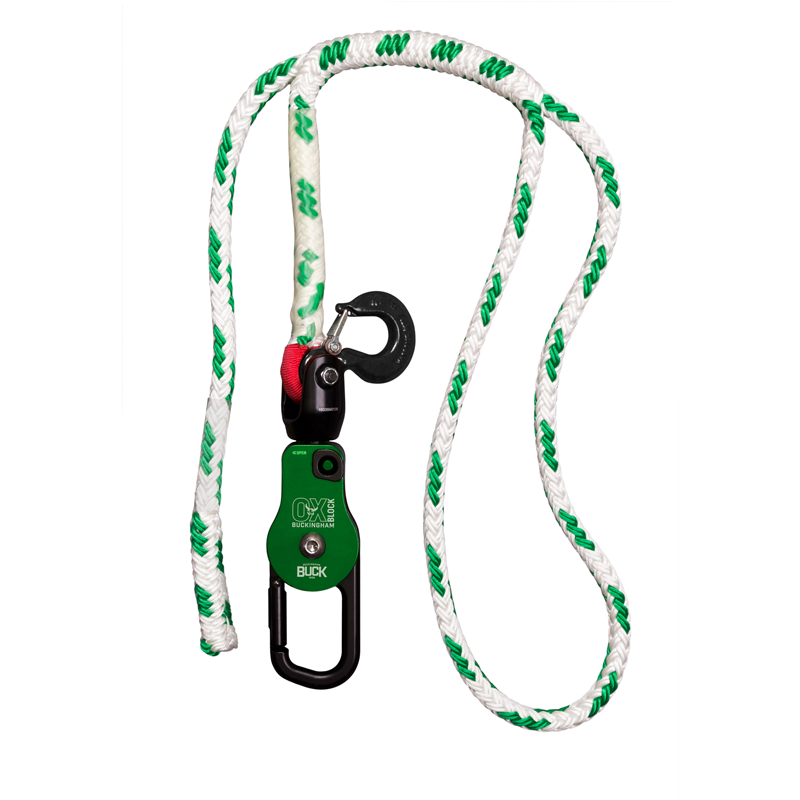

Ox Block® Clevis Top with a 4 adjustable sling and hook. order model: 50062AC-4

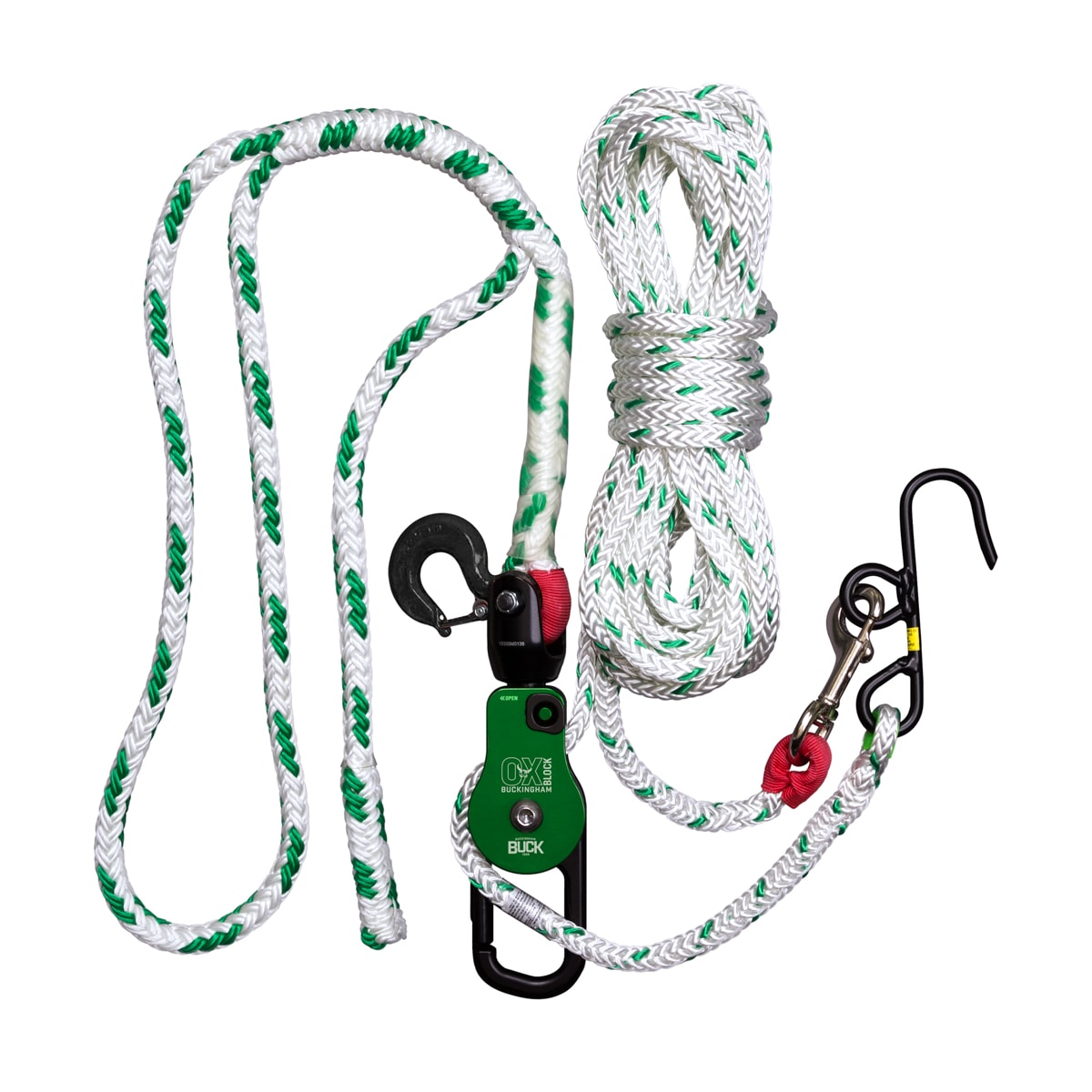

OX BLOCK® Clevis Top with 4′ sling, hook & 80′ handline assembly, order model: 50062AC-4/80
OX BLOCK® Clevis Top with 4′ sling, hook & 100′ handline assembly, order model: 50062AC-4/100
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK®.
- The patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks.
- Has greater WLLs than blocks of similar size.
- When configured with optional pulleys, the OX BLOCK® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
- The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
- ASME B30 Compliant
Product Specifications:
| Product Number: | 50062AC-4 |
| Product Name: | OX BLOCK™ CLEVIS TOP Handline Assembly |
| Material: | Lightweight Aluminum |
| Length: | 10.5" |
| Width: | 2" |
| Gate Opening Capacity: | 1.5" |
| Weight: | 4.6 lbs. |
| Adjustable Sling: | 4 x 5/8" |
| Handline Assembly: | No |
| HOOK TO EYE: | |
| MBS: | 6,000 lbs. |
| WLL: | 1,500 lbf. |
| SHEAVE TO EYE: | |
| MBS: | 10,000 lbs. |
| WLL: | 2,500 lbf. |
| OX Block™ Standards: | ASME B30 Compliant |
| Product Number: | 50062AC-4/80 & 50062AC-4/100 |
| Product Name: | OX BLOCK™ CLEVIS TOP Handline Assembly |
| Material: | Lightweight Aluminum |
| Length: | 10.5" |
| Width: | 2" |
| Gate Opening Capacity: | 1.5" |
| Weight: | 9.7lbs. |
| Adjustable Sling: | 4 x 5/8" |
| Handline Assembly: | 80 with Handline Hook & 100 with Handline Hook |
| Handline Hook WLL: | 500 lbs. |
| Handline Snap MBS: | 750 lbs. |
| HOOK TO EYE: | |
| MBS: | 6,000 lbs |
| WLL: | 1,500 lbf |
| SHEAVE TO EYE: | |
| MBS: | 10,000 lbs |
| WLL: | 2,500 lbf |
| OX Block™ Standards: | ASME B30 Compliant |
Instructions & Warnings:
OX BLOCK™ Instructions & Warnings
Ox Handline Inspection Instructions
Ox Block™ Sling Instructions & Warnings
