Ox Block™ Handline Assembly W/ox Hook™ & Ox Horn™ - 50062K18-4/80
Ox Block™ Handline Assembly W/ox Hook™ & Ox Horn™ - 50062K18-4/80

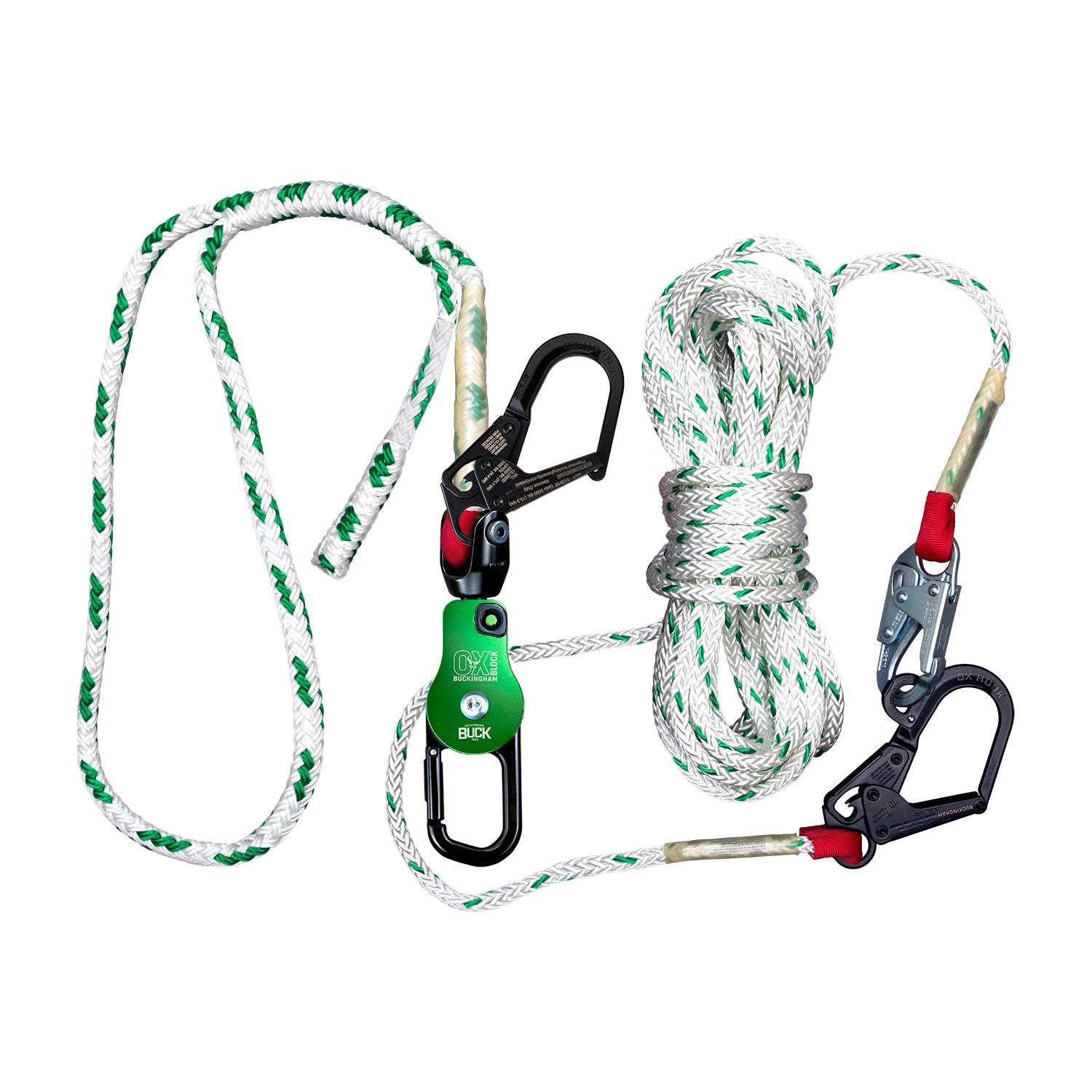

An Ox Block™ with the Ox Hook™ & Ox Horn™, 4′ x 5/8” adjustable sling and option between an 80′ or 100’ handline assembly.
The OX BLOCK™ is a rope snatchblock with an integrated friction bar used for:
- Hurtman/self-rescue
- Lowering
- Raising
- Snubbing loads
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK™.
- The patented OX BLOCK™ replaces standard handline blocks, parted blocks and various snatch blocks.
- Has greater WLLs than blocks of similar size.
- When configured with optional pulleys, the OX BLOCK™ can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
- The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
- ASME B30 Compliant
**Handline hook and snap are not intended for human support.
***Usually ships within 7 to 14 days.
Product Specifications:
| Product Number: | 31291B |
| Product Name: | OX Horn™ |
| Length: | 8″ |
| Width: | 4.5″ |
| Weight: | 1.15 lbs. |
| Material: | Lightweight Aluminum |
| Gate Opening Capacity: | 2″ |
| Eye Diameter: | 1″ |
| WLL: | 2,500 lbs. (Closed Gate) / 1,000 lbs. (Open Gate) |
| Made in USA?: | Yes |
| Product Number: | 2406S |
| Option Number: | N/A |
| Weight: | 19.5oz |
| Length: | 7.83″ |
| Width: | 3.87″ |
| Material: | Forged Steel |
| Diameter of Eye: | 0.986″ |
| Gate Opening Capacity: | 2.01″ |
| Gate Strength: | 3000 lbf |
| WLL: | 2,500 lbs. (Closed Gate) / 1,000 lbs. (Open Gate |
| Product Number: | 50062K18-4/Length |
| Product Name: | OX BLOCK™ HANDLINE ASSEMBLY W/OX HOOK™ & OX HORN™ |
| Adjustable Sling: | 4′ x 5/8″ |
| Handline Assembly: | 80′, 100, or 250 OX Hook™ |
| Connector: | Ox Block™ & Ox Horn™ |
| Product Number: | 50061 |
| Product Name: | OX Block™ |
| Material: | Lightweight Aluminum |
| Length: | 10.5″ |
| Width: | 2″ |
| Gate Opening Capacity: | 1.5″ |
| Weight: | 2.15 |
| HOOK TO EYE: | |
| MBS: | 6,000 lbs |
| WLL: | 1,500 lbf |
| SHEAVE TO EYE: | |
| MBS: | 10,000 lbs |
| WLL: | 2,500 lbf |
| Made In USA?: | Yes |
Product Videos
BuckAlloy Aluminum Climber Review (DOWNLOAD)
BuckAlloy™ Aluminum Climbers (DOWNLOAD)
BuckAlloy™ Climber Setup (DOWNLOAD)
Climber Inspection & Maintenance (DOWNLOAD)
Instructions & Warnings:
OX BLOCK™ Instructions & Warnings
OX HOOK™ & OX HORN™ Instructions
