OX BLOCK™ CLEVIS TOP / OX HOOK™ HANDLINE ASSEMBLY - 50062K14-4/80 & 50062K14-7/80
OX BLOCK™ CLEVIS TOP / OX HOOK™ HANDLINE ASSEMBLY - 50062K14-4/80 & 50062K14-7/80

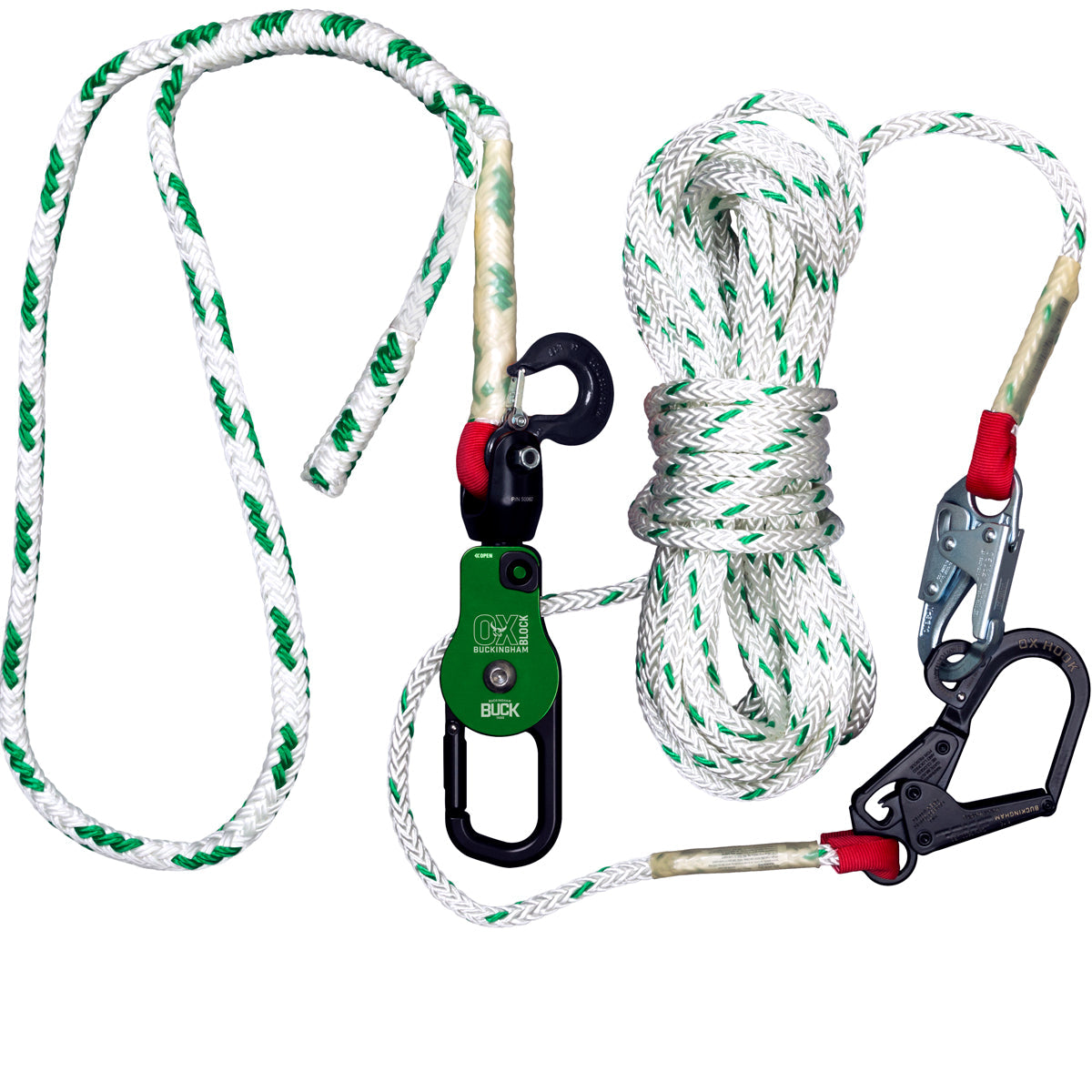

An OX BLOCK™ Clevis Top that features a 4 x 5/8″ adjustable sling, orange hook and an 80 OX HOOK™ handline assembly.
*Usually ships within 7 to 14 days.
The OX BLOCK™ is a rope snatchblock with an integrated friction bar used for:
- Hurtman/self-rescue
- Lowering
- Raising
- Snubbing loads.
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK™.
- The patented OX BLOCK™ replaces standard handline blocks, parted blocks and various snatch blocks.
- Has greater WLLs than blocks of similar size.
- When configured with optional pulleys, the OX BLOCK™ can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
- The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
- ASME B30 Compliant
ALSO AVAILABLE
OX BLOCK™ Clevis Top with 4′ sling, steel carabiner & 100′ OX HOOK™ handline assembly, order model: 50062K14-4/100
OX BLOCK™ Clevis Top with 7′ sling, steel carabiner & 80′ OX HOOK™ handline assembly, order model: 50062K14-7/80
Product Specs:
| Product Number: | 50062K14-4/80 / 50062K14-7/80 |
| Product Name: | OX BLOCK™ CLEVIS TOP / OX HOOK™ HANDLINE ASSEMBLY |
| Material: | Lightweight Aluminum |
| Length: | 10.5" |
| Width: | 2" |
| Gate Opening Capacity: | 1.5" |
| Weight: | 9.7 lbs. |
| Adjustable Sling: | 4 x 5/8" |
| Handline Assembly: | 80 OX Hook™ |
| Connector: | 1706 Snap |
| HOOK TO EYE: | |
| MBS: | 6,000 lbs |
| WLL: | 1,500 lbf |
| SHEAVE TO EYE: | |
| MBS: | 10,000 lbs |
| WLL: | 2,500 lbf |
| OX Block™ Standards: | ASME B30 Compliant |
| Made In USA?: | Yes |
Instructions & Warnings:
OX BLOCK™ Instructions & Warnings
OX HOOK™ & OX HORN™ Instructions
Ox Handline Inspection Instructions
Ox Block™ Sling Instructions & Warnings
