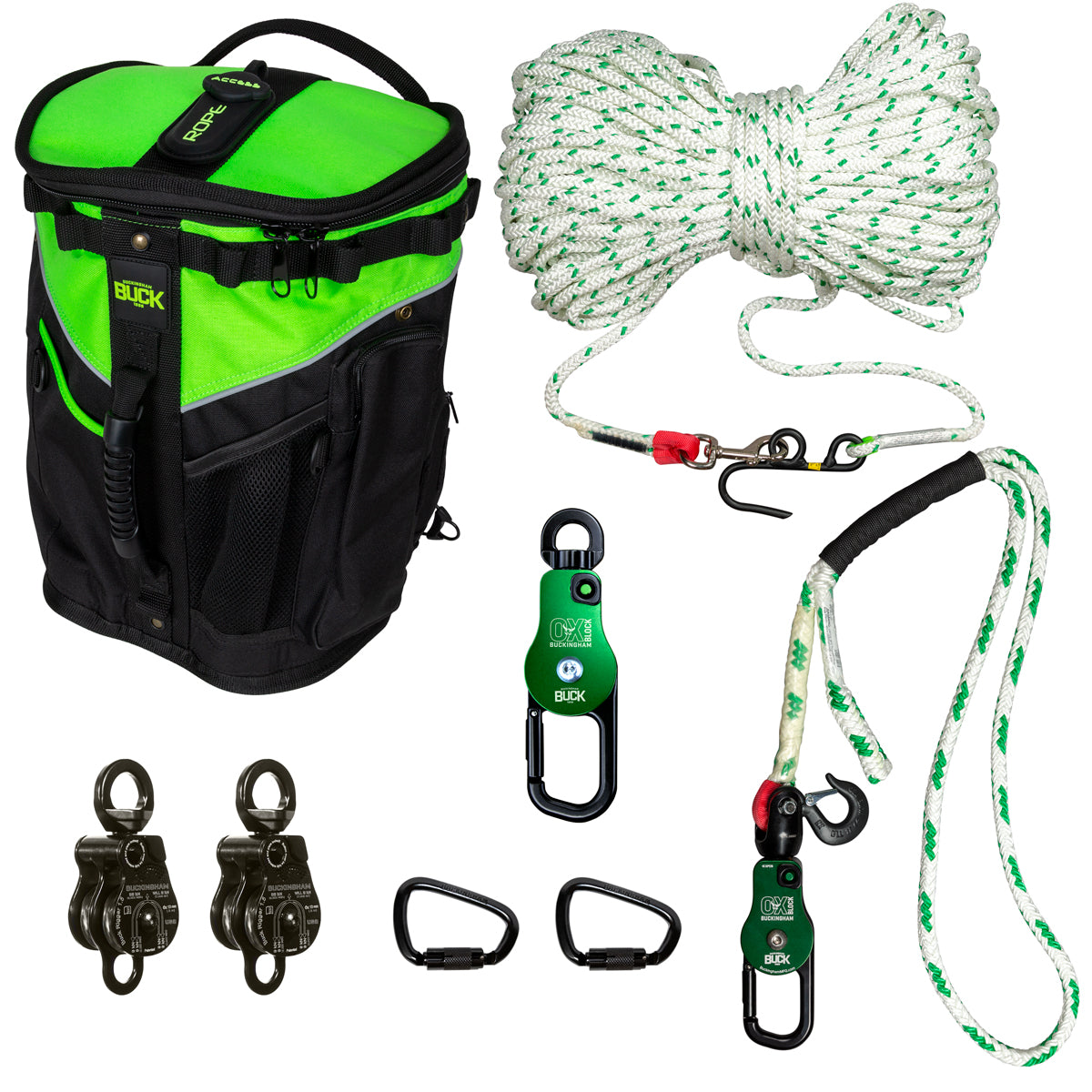

OX Block™ Transmission Kit - 50062K6-250

Vendor Buckingham
Regular price $2,963.99
Sale price $2,963.99 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

The OX Block™ Transmission Kit is an OX Block handline assembly that was designed to be specifically used on a transmission pole measuring up to 125’ long. The OX Block™ Transmission Kit is a complete rigging system that puts numerous rigging options at the user’s fingertips.

Kit Includes:

  • OX Block (1): 50061
  • Double Sheave BuckRigger™ (2): 5007R2
  • Steel Double Action Rigging Carabiner (2): 5005S5
  • RopePro™ Deluxe Bag (1): 4374
  • 250’ handline assembly
  • OX Block™ w/ adjustable 4’ sling

The OX BLOCK™ is a rope snatch block with an integrated friction bar used for:

  • Hurtman/self-rescue
  • Lowering
  • Raising
  • Snubbing loads

It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK™.

  • The patented OX BLOCK™ replaces standard handline blocks, parted blocks, and various snatch blocks.
  • Has greater WLLs than blocks of similar size.
  • When configured with optional pulleys, the OX BLOCK™ can be used to create a 4:1, 5:1, or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
  • The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
  • The Ox Block™ is ASME B30 Compliant.

Specifications:

Product Name: OX Block™ Transmission Kit
Product Number: 50062K6-250


Product Number: 50062AQA19-4
Product Name: OX Block™ Shackle Top with 4′ Sling
Material: Lightweight Aluminum
Length: 10.5″
Width: 2″
Gate Opening Capacity: 1.5″
Weight: 9.7lbs.
Adjustable Sling: 4′
Wear Guard: Yes
Wear Guard Material: Super Fabric
HOOK TO EYE:
MBS: 6,000 lbs.
WLL: 1,500 lbf.
SHEAVE TO EYE:
MBS: 10,000 lbs.
WLL: 2,500 lbf.
OX Block™ Standards: ASME B30 Compliant
Made in the USA?: Yes
Weight: 14.7 oz
Height: 6.4″ (163mm)
Width: 2.5″ (63mm)
Thickness: 2.25″ (58mm)
Pulley Size: 1.5″ (38mm)
Max Rope Diameter: 1/2″ (13mm)
Breaking Strength: 8000 lbf. (36Kn)
Weight Rating: WLL – 2000 lbf. (8Kn)


Product Number: 5005S5
Product Name: Steel Double Action Rigging Carabiner
Option Number: N/A
Weight: 10.5 oz
Length: 4.68″ (119mm)
Width: 3.07″ (78mm)
Material: Alloy Steel
Diameter of Eye: No Eye
Gate Opening Capacity: 0.94″ (24mm)
Gate Strength: 3,600 lbs.
Breaking Strength: 11,240 lbs. (50KN)
WLL: 2,500 lbf. (11kN)
Other: Double Action (2)


Product Name: OX Handline Rope Assembly
Product Number: 39SAM27Q1-250
Material: Handline Rope / Steel Hardware
Handline length: 250′
Width: 1/2″ Rope
Handline Hook WLL: 500 lbs.
Handline Snap MBS: 750 lbs.
Weight: 12 lbs.
Made in the USA?: Yes


Product Number: 4374
Product Name: ROPEPRO™ DELUXE BAG BY BUCKINGHAM International
Height: 16″
Width: 14″
Depth: 16″
Weight: 4 lbs.
Number of Pockets: 7
Outside Pockets: 7
Inside Pockets: 0
Material: Water Resistant Canvas
2 Way Snap: No
Rain Flap: Water-Resistant
Back Straps / Shoulder Straps: Yes / Optional Back Pack Attachment – 4375
Closure Tab: Zipper
Bottom Material: Water Resistant Canvas
Wheels: No
Magnet: No
Attachment Type: Rope Bag
Bucket Hooks Included: N/A
Bucket Hook Model: N/A
Standards: N/A

Overall Kit Weight: 29.2 lbs.

OX BLOCK™ Instructions & Warnings

Ox Handline Inspection Instructions

5007R1 & 5007R2 BuckRiggers™

Rigging Carabiner Instructions

Ox Block™ Sling Instructions & Warnings

Download: Ox Block™ Overview
