OVAL D TEMPERED STEEL SCREW SLEEVE - PHASE OUT
OVAL D TEMPERED STEEL SCREW SLEEVE - PHASE OUT

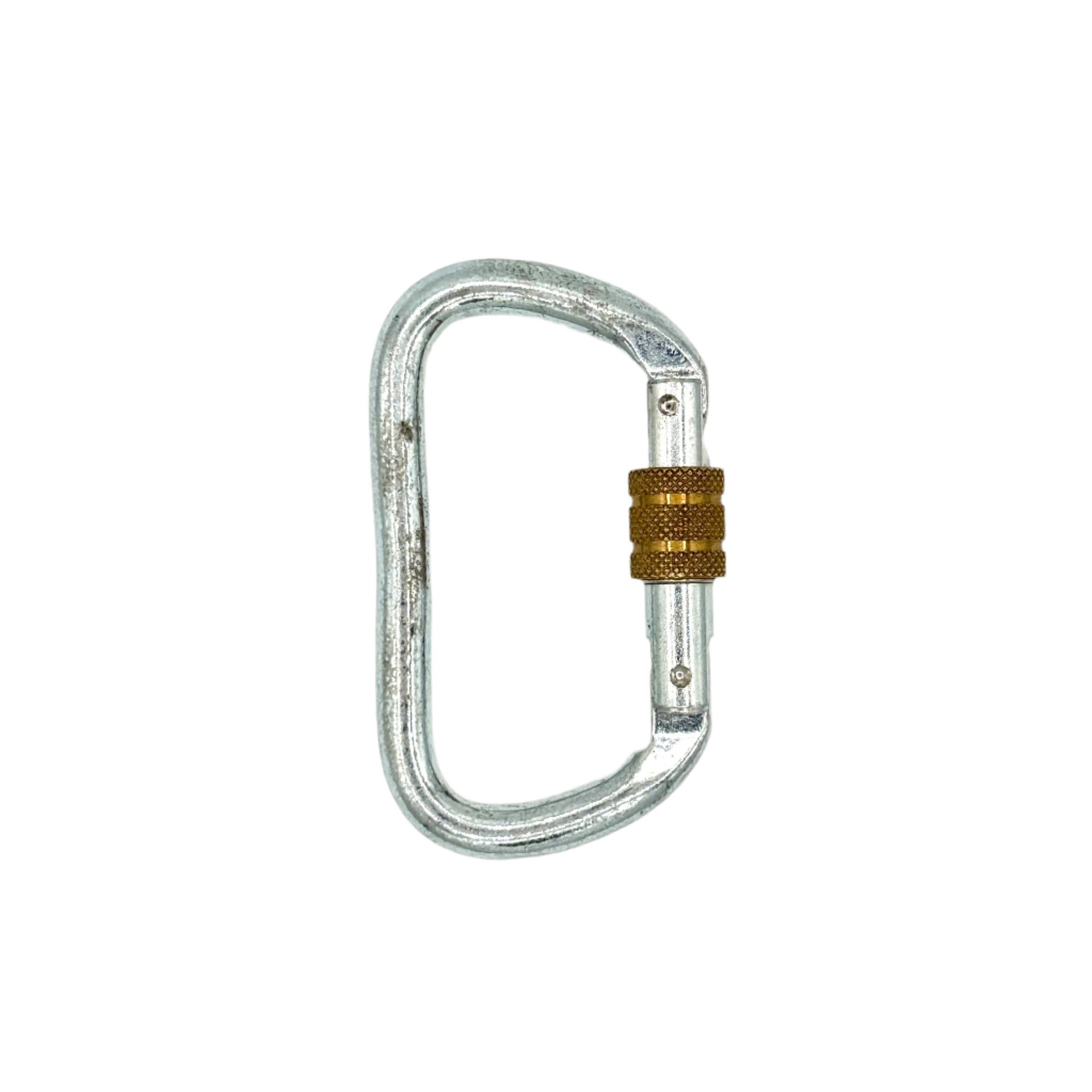

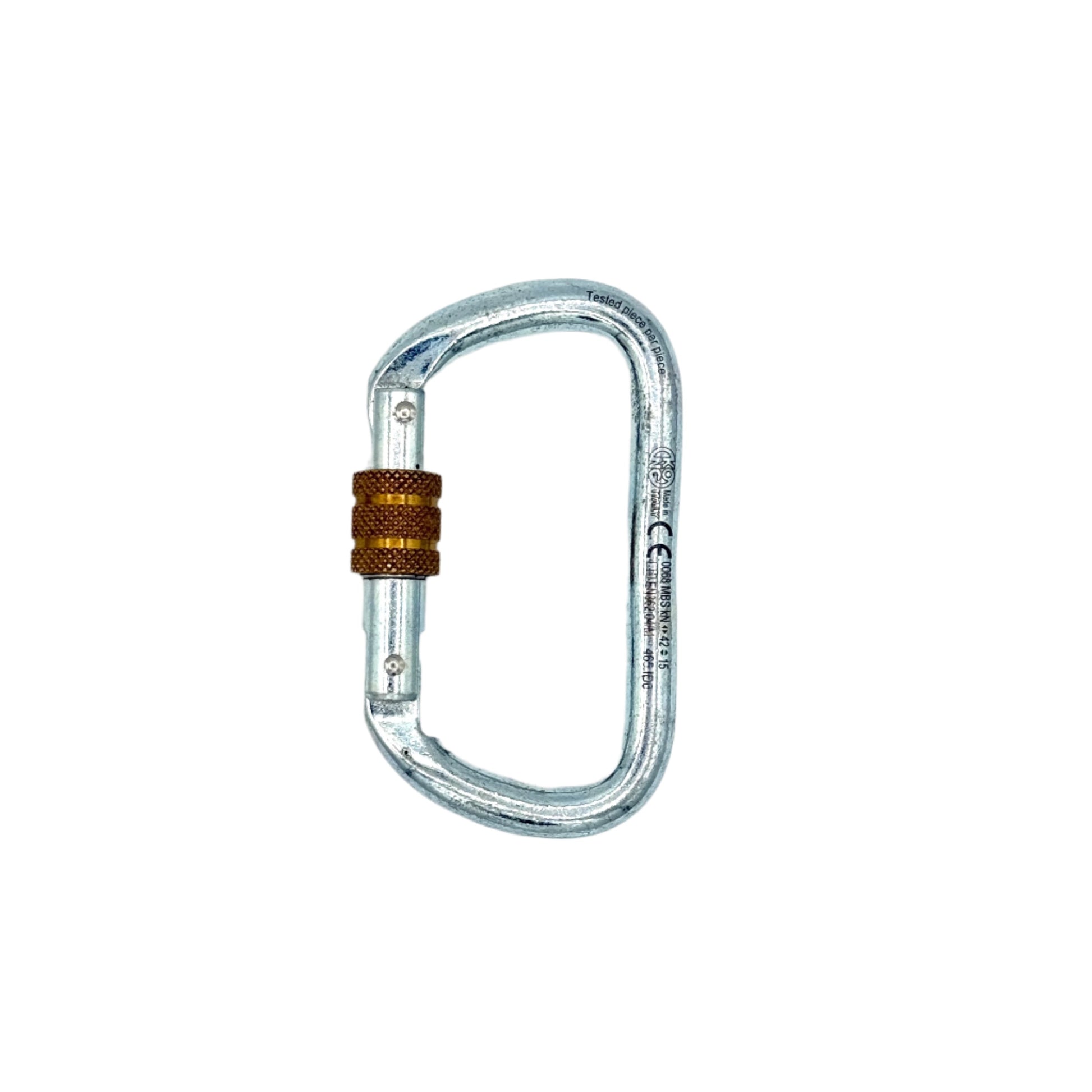

“D” STRONG Screw Sleeve Carabiner
Tempered steel oval connector with a slightly asymmetrical body and circular rod, ideal for use with mobile devices like pulleys, blockers, and fall arresters. The special surface finishing provides exceptional durability, rated at 42 kN on the major axis. Equipped with a screw sleeve for secure locking, making it perfect for professional applications.
Specifications
• Item Code: 465ID011PKK (Old Part #465100ZC1KK)
• Size: 10
• Standards: CE EN 12275, CE EN 362/M
• Major Axis Strength: 42 kN
• Minor Axis Strength: 15 kN
• Open Gate Strength: 11 kN
• Gate Opening (A): 21 mm
• Dimensions:
• Height (B): 118 mm
• Width (G): 104.5 mm
• Diameter (Ø): 9.5 mm
• Eye Width (E): 21 mm
• Lock Sleeve Width (F): 10 mm
• Color: Zinc Plated Steel
• Weight: 168 g
This product has been discontinued and is no longer covered under warranty.
All sales are final and non-returnable.
