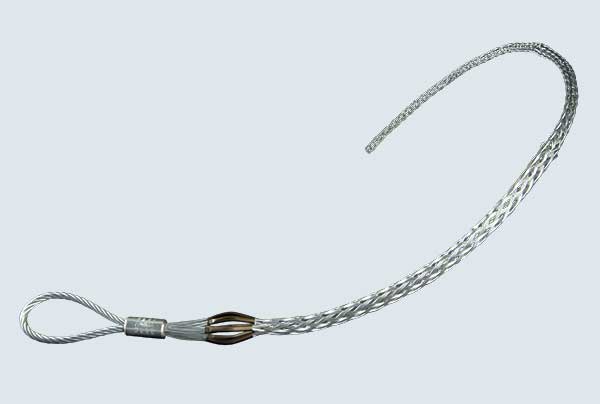

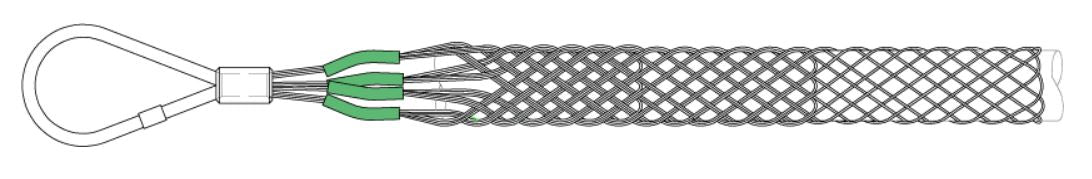

This grip’s triple weave construction is ideal for heavy loads. MU cable grips are color-coded for ease of identification. Perfect for stringing overhead transmission and distribution lines and heavy-load pulls of any kind. use with bare or insulated cable, conductor, or wire. The flexible eye connects with Slingco line pulling swivels for trouble-free pulling applications. made of galvanized steel.
*Usually ships in 7 to 14 days.
Features and benefits
- Triple weave construction
- Used for heavy-duty pulling
- Suitable for bare or insulated cable, conductor or wire
- Colour coded for easy identification
| Range (mm) | Approx. Break Load (kg) | Lattice Length (mm) | Colour Code | Slingco Part No. |
|---|---|---|---|---|
| 6-12 | 3,170 | 787 | Dark Green | ZCS1710 |
| 12-19 | 4,760 | 1,143 | Brown | ZCS1711 |
| 19-25 | 6,395 | 1,092 | Light Blue | ZCS1712 |
| 25-32 | 11,340 | 1,651 | Gold | ZCS1713 |
| 32-38 | 14,065 | 1,499 | Black | ZCS1714 |
| 38-44 | 14,065 | 2,083 | Red | ZCS1715 |
| 44-57 | 22,230 | 2,083 | Dark Blue | ZCS1716 |
| 51-63 | 22,230 | 1,829 | Yellow | ZCS1750 |
| 63-76 | 22,230 | 1,829 | Orange | ZCS1751 |
| 76-89 | 22,230 | 1,880 | Aluminium | ZCS1752 |
| 89-102 | 22,230 | 1,930 | Light Green | ZCS1753 |
