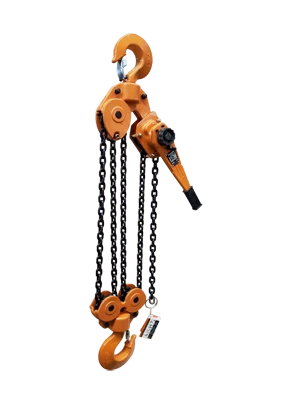

MAGNA Lifting Products 15 Ton Lever Hoist, 5 ft. Lift LH150005

The MAGNA LH150005 15 Ton Lever Hoist is the flagship of the LH series, offering a staggering 33,000 lbs of lifting capacity. This unit is reserved for the most extreme manual rigging tasks found in heavy manufacturing, power plant construction, and offshore oil operations. To achieve this capacity, it utilizes a 5-fall block system with Grade 100 alloy chain, effectively serving as a manual crane in a portable package. Despite its immense power, the high-ratio gear train ensures that a single operator can generate the full lifting force with just 93 lbs of handle pull.

Constructed with massive steel side plates and a heavy-duty hook block, the LH150005 is built to withstand abuse. The top and bottom hooks feature a massive 3.1-inch throat opening, accommodating the largest shackles and slings. Every unit is proof tested to 150% of capacity (49,500 lbs) before leaving the factory. Whether you are setting a turbine rotor or tensioning bridge cables, the LH150005 offers the reliability and power required for critical heavy lifts.

Features & Benefits

• Maximum Capacity: 15 Tons (33,000 lbs) of manual lifting force for extreme applications.
• 5-Fall Configuration: Utilizes five strands of Grade 100 chain for maximum strength and load stability.
• Large Hook Opening: 3.1" throat opening for connecting to heavy-duty rigging hardware.
• 150% Proof Test: Individually tested to nearly 50,000 lbs to ensure safety.
• Cold Weather Ready: Grease rated to -45°C for global deployment in any climate.
• Heavy Duty Brake: Oversized Weston brake ensures absolute load control.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR1500 (15 Ton Plain Trolley), GTR1500 (15 Ton Geared Trolley), ULBC1500F (15 Ton Fixed Jaw Clamp)

Specifications

• Model Number: LH150005
• Working Load Limit (WLL): 15 Ton (33,000 lbs)
• Standard Lift: 5 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100 Alloy
• Number of Falls: 5
• Pull to Lift Full Load: 93 lbs
• Headroom (Dimension C): 31.5 in.
• Handle Length (Dimension D): 15.4 in.
• Hook Throat Opening (Dimension G): 3.1 in.
• Net Weight: 283.0 lbs
