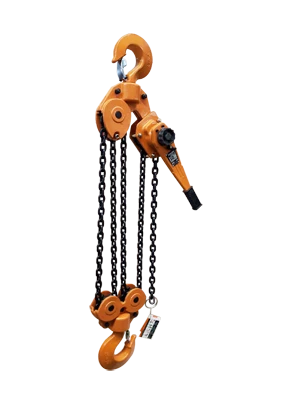

MAGNA Lifting Products 15 Ton Lever Hoist, 20 ft. Lift LH150020

The MAGNA LH150020 stands as the highest capacity manual hoist in the series, offering 15 Tons (33,000 lbs) of lifting power with a 20-foot reach. It utilizes a specialized 5-fall configuration of Grade 100 alloy chain to safely manage extreme loads. This hoist is designed for critical heavy rigging in power plants, shipyards, and heavy manufacturing facilities.

Despite its immense power, the LH150020 is designed for longevity and ease of maintenance, with a fully repairable steel housing. It is factory lubricated with low-temperature grease, allowing for operation in environments as cold as -45°C (-49°F). Tested to a proof load of 150% of its rated capacity (49,500 lbs), this hoist ensures absolute safety and reliability for the heaviest lifts.

Features & Benefits

• Maximum Power: Lifts 33,000 lbs with a heavy-duty 5-fall chain system.
• Extended Reach: 20-foot lift capability for large-scale projects.
• Grade 100 Alloy: Premium chain ensures strength under extreme tension.
• Service Friendly: Completely repairable design extends operational life.
• Cold Capable: Functions reliably in temperatures down to -45°C (-49°F).
• Rigorous Safety: Proof tested to 150% of capacity for maximum assurance.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR1500 (15 Ton Plain Trolley), GTR1500 (15 Ton Geared Trolley), ULBC1500F (15 Ton Fixed Jaw Clamp)

Specifications

• Model Number: LH150020
• Working Load Limit (WLL): 15 Ton (33,000 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 5
• Pull to Lift Full Load: 93 lbs
• Headroom (Dimension C): 31.50 in.
• Handle Length (Dimension D): 15.40 in.
• Hook Throat Opening (Dimension G): 3.10 in.
• Net Weight: 373.0 lbs
