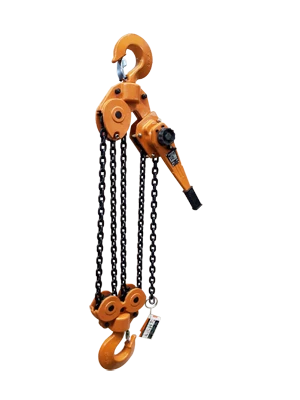

MAGNA Lifting Products 15 Ton Lever Hoist, 10 ft. Lift LH150010

The MAGNA LH150010 15 Ton Lever Hoist represents the pinnacle of manual lifting capability, delivering 33,000 lbs of force with a 10-foot lift. This massive unit utilizes a 5-fall configuration of Grade 100 chain to handle extreme loads safely and efficiently. It is the tool of choice for heavy plant maintenance, turbine installation, and major structural work where powered equipment is not feasible. The hoist features a heavy-duty steel body and oversized hooks with 3.1-inch openings.

Despite its immense power, the LH150010 is operable by a single person with 93 lbs of handle pull. The unit utilizes a large Weston-style brake for secure load holding and is proof tested to 150% of capacity (49,500 lbs). Rated for -45°C operation and fully repairable, this hoist is built for a lifetime of heavy service.

Features & Benefits

• Maximum Power: 15 Ton (33,000 lbs) capacity.
• 10-Foot Reach: Extended lift for major projects.
• 5-Fall System: Grade 100 chain for ultimate strength.
• 150% Proof Test: Tested to nearly 50,000 lbs.
• Large Hooks: 3.1" throat opening.
• Cold Weather Ready: -45°C grease rating.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR1500 (15 Ton Plain Trolley), GTR1500 (15 Ton Geared Trolley), ULBC1500F (15 Ton Fixed Jaw Clamp)

Specifications

• Model Number: LH150010
• Working Load Limit (WLL): 15 Ton (33,000 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100 Alloy
• Number of Falls: 5
• Pull to Lift Full Load: 93 lbs
• Headroom (Dimension C): 31.5 in.
• Handle Length (Dimension D): 15.4 in.
• Hook Throat Opening (Dimension G): 3.1 in.
• Net Weight: 313.0 lbs
