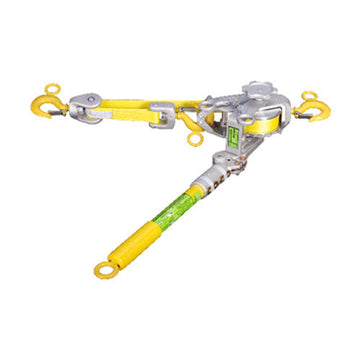

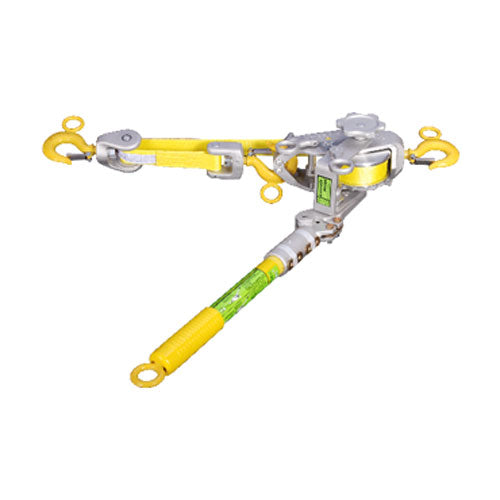

Lincoln Hoist Standard Series Web Strap Ratchet Winch Hoists (86-2W10SB)

• “B” Hot Stick Hook – have 1” welded steel rings on the hook
• This option also adds hot stick rings to the pawl shafts and handle
• Hoists meet the ASME B30.21 spec
• Goes further with our stress link overload warning system
• RFID Tracking
• Oiled for life bearings
• Synthetic web strap
• Interlocking pawl system
• USA forged steel hooks
• Reversible handle with 2 spare stress links
• 1-1/4” OD fiberglass handle for extra stiffness
• Double flanged drum – keeps web strap from coming in contact with ratchet teeth
• The standard series feature models from 2000 to 4000 lb capacity.

Product Specifications

• Handle Length: 30”
• Single Line Capacity: 1000 lbs; ½ Tons
• Single Line Lifting Dist: 9 ft
• Single Line Minimum Hook to Hook: 18”
• Double Line Capacity: 2000 lbs; 1 Ton
• Double Line Lifting Dist.: 4-1/2 ft.
• Double Line Minimum Hook to Hook: 23”
• Hoist Weight: 10-1/4 lbs.
