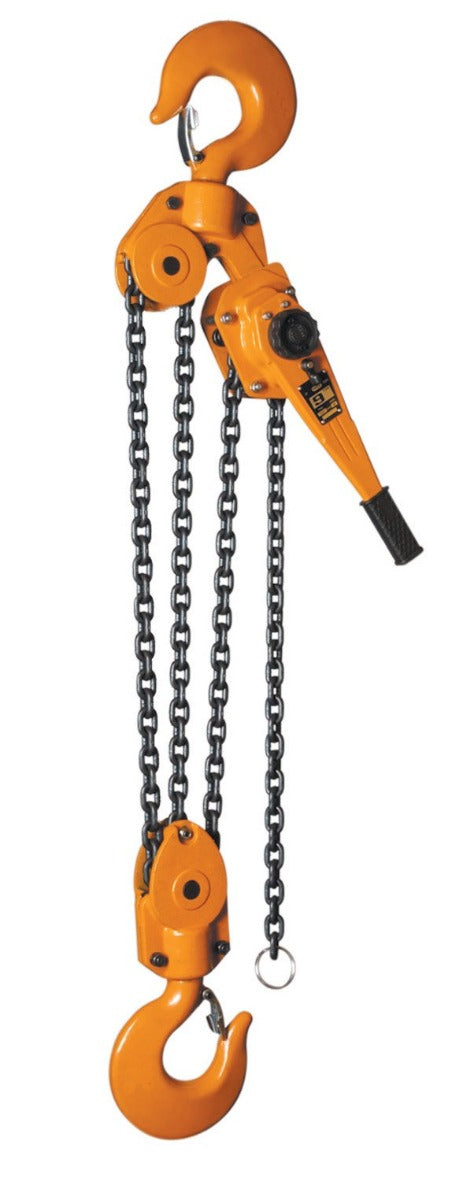

MAGNA Lifting Products 9 Ton Lever Hoist, 20 ft. Lift LH90020

The MAGNA LH90020 is a heavy-duty lever hoist designed for massive loads, offering a 9 Ton (19,800 lbs) capacity and a 20-foot lift. It utilizes a 3-fall system of Grade 100 alloy chain to ensure maximum strength and stability. The unit is constructed with a rugged steel housing that is fully repairable, making it a sustainable investment for heavy industry.

This hoist is engineered to perform in extreme conditions, with low-temperature grease allowing operation down to -45°C (-49°F). It features a reliable Weston-style load brake for precise control and a single-hand free-chaining mechanism. Factory load tested to 150% of its rated capacity, the LH90020 delivers the safety and power required for major construction and rigging projects.

Features & Benefits

• High Tonnage: Safely lifts 19,800 lbs with a triple-fall chain system.
• Extended Reach: 20-foot lift for large-scale industrial applications.
• Grade 100 Quality: Premium alloy chain ensures durability under load.
• Serviceable: Completely repairable design allows for long-term maintenance.
• Arctic Ready: Grease rated for -45°C (-49°F) prevents freezing.
• Safety Tested: Proof loaded to 150% of WLL for maximum reliability.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR1000 (10 Ton Plain Trolley), GTR1000 (10 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamp)

Specifications

• Model Number: LH90020
• Working Load Limit (WLL): 9 Ton (19,800 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 3
• Pull to Lift Full Load: 88 lbs
• Headroom (Dimension C): 27.17 in.
• Handle Length (Dimension D): 15.35 in.
• Hook Throat Opening (Dimension G): 2.20 in.
• Net Weight: 159.7 lbs
