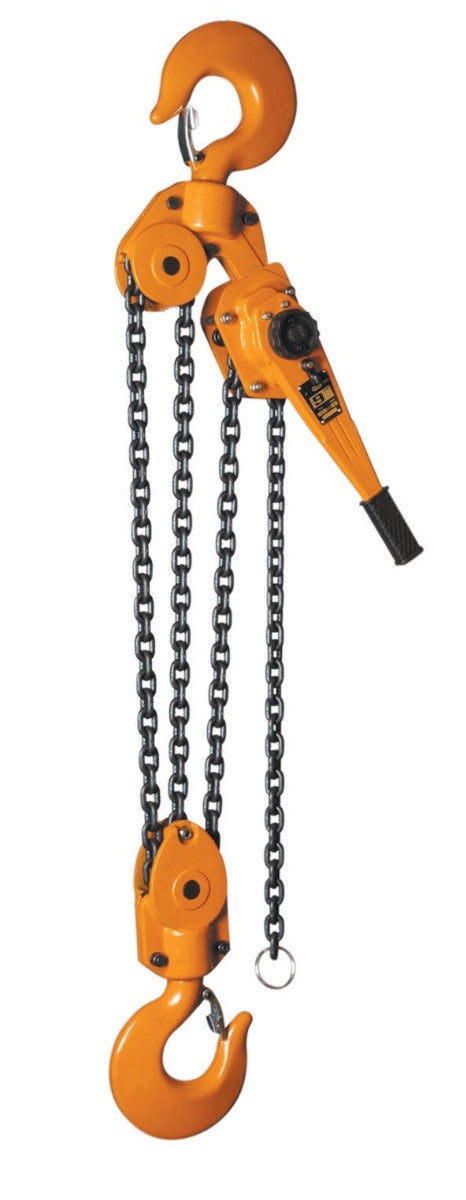

MAGNA Lifting Products 9 Ton Lever Hoist, 15 ft. Lift LH90015

The MAGNA LH90015 is engineered for massive lifting requirements, boasting a 9 Ton (19,800 lbs) working load limit. This heavy-duty hoist features a 15-foot lift and utilizes a 3-fall system of high-strength Grade 100 alloy chain. It is an essential tool for heavy construction, utility work, and industrial plant maintenance where reliability under extreme load is non-negotiable.

Manufactured with a durable steel housing, the LH90015 is completely repairable, allowing for long-term maintenance and cost savings. It is tested to 150% of its rated capacity to ensure structural integrity. The hoist is also designed for extreme environments, utilizing low-temperature grease that functions effectively down to -45°C (-49°F). A Weston-style load brake ensures precise and safe load holding at all times.

Features & Benefits

• High Tonnage: Safely lifts up to 19,800 lbs with a triple-fall chain system.
• Grade 100 Quality: Utilizes top-tier alloy chain for reduced weight and high strength.
• Serviceable: Bolted steel construction allows for full repair and parts replacement.
• Cold Weather Rated: Operates efficiently in temperatures as low as -45°C (-49°F).
• Safety Tested: Factory load tested to 150% of WLL for assured performance.
• Reliable Braking: Mechanical load brake provides positive holding power for heavy loads.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR1000 (10 Ton Plain Trolley), GTR1000 (10 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamp)

Specifications

• Model Number: LH90015
• Working Load Limit (WLL): 9 Ton (19,800 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 3
• Pull to Lift Full Load: 88 lbs
• Headroom (Dimension C): 27.17 in.
• Handle Length (Dimension D): 15.35 in.
• Hook Throat Opening (Dimension G): 2.20 in.
• Net Weight: 141.8 lbs
