MAGNA Lifting Products 9 Ton Lever Hoist, 10 ft. Lift LH90010

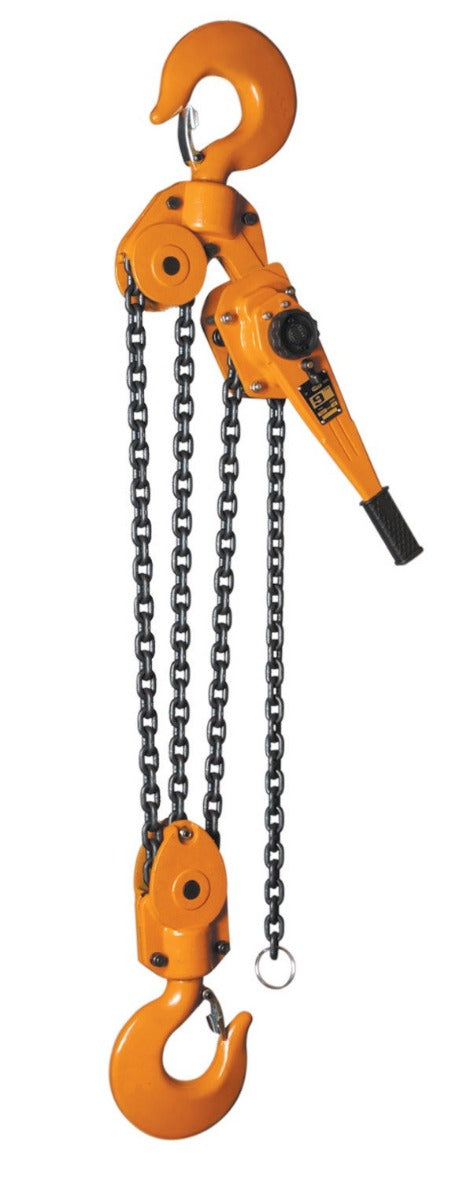

The MAGNA LH90010 9 Ton Lever Hoist delivers nearly 10 tons (19,800 lbs) of lifting power with a 10-foot reach. This heavy-duty unit is built for the most demanding rigging scenarios, utilizing a triple-fall arrangement of premium 9.0mm Grade 100 alloy chain for immense strength. Ideal for mining, marine salvage, and bridge construction, the LH90010 features a reinforced steel chassis and massive alloy hooks with 2.2-inch openings.

Despite its size, the hoist remains manageable for manual operation, requiring 88 lbs of handle pull force. The dual-pawl Weston brake ensures absolute load security, while the 150% proof test (29,700 lbs) verifies its capability. Designed for global use, it features low-temperature grease for reliable operation down to -45°C.

Features & Benefits

• Massive Capacity: 9 Ton (19,800 lbs) WLL.
• 10-Foot Lift: Extended reach for large-scale projects.
• Grade 100 Chain: Triple-fall configuration.
• 150% Proof Test: Tested to 29,700 lbs.
• Heavy Duty Hooks: Large 2.2" throat opening.
• Cold Weather Ready: -45°C grease rating.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR1000 (10 Ton Plain Trolley), GTR1000 (10 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamp)

Specifications

• Model Number: LH90010
• Working Load Limit (WLL): 9 Ton (19,800 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100 Alloy
• Number of Falls: 3
• Pull to Lift Full Load: 88 lbs
• Headroom (Dimension C): 27.2 in.
• Handle Length (Dimension D): 15.4 in.
• Hook Throat Opening (Dimension G): 2.2 in.
• Net Weight: 123.9 lbs
