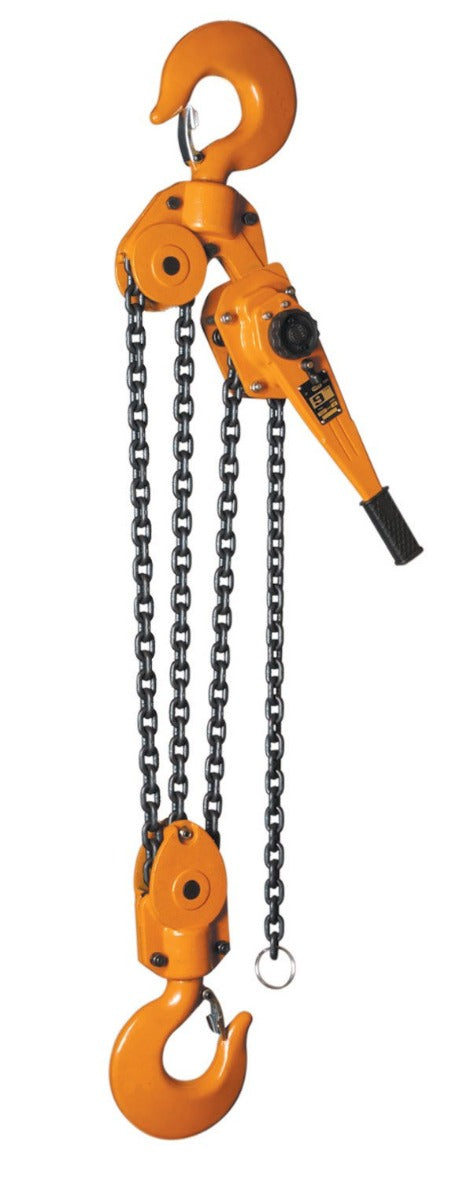

MAGNA 9 Ton Lever Hoist, 5 ft. Lift LH90005
The MAGNA LH90005 9 Ton Lever Hoist is among the highest capacity manual lever hoists available, offering nearly 10 tons (19,800 lbs) of lifting force. Designed for extreme rigging scenarios where powered equipment cannot be used, this hoist utilizes a triple-fall arrangement of premium 9.0mm Grade 100 alloy chain. The chassis is constructed from heavy-plate steel to maintain structural integrity under immense loads. Despite its size, precision machining ensures the handle pull remains under 90 lbs, allowing a single operator to generate nearly 20,000 lbs of force.
This unit is essential for heavy industrial maintenance, such as servicing mining excavators or setting bridge bearings. It features a massive top and bottom hook with a 2.2-inch throat opening, capable of accepting large synthetic slings and alloy shackles. The dual-pawl Weston brake ensures the load remains absolutely static when the handle is released. Tested to a staggering 29,700 lbs (150% capacity) and rated for arctic conditions, the LH90005 is the ultimate tool for heavy manual rigging.
Features & Benefits
- Massive Power: 9-ton (19,800 lb) capacity for extreme lifting and tensioning.
- Grade 100 Chain: Triple-fall configuration ensures maximum strength and safety.
- Heavy Duty Hooks: Large 2.2" throat opening accommodates heavy rigging hardware.
- 150% Proof Test: Rigorously tested to nearly 15 tons (29,700 lbs).
- Cold Weather Spec: Lubricated for reliable operation down to -45°C.
- Field Repairable: Designed for easy maintenance and inspection in the field.
Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR1000 (10 Ton Plain Trolley), GTR1000 (10 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamp)
Specifications
- Model Number: LH90005
- Working Load Limit (WLL): 9 Ton (19,800 lbs)
- Standard Lift: 5 ft.
- Load Chain Dimensions: 9.0 x 27.0 mm
- Load Chain Grade: Grade 100 Alloy
- Number of Falls: 3
- Pull to Lift Full Load: 88 lbs
- Headroom (Dimension C): 27.2 in.
- Handle Length (Dimension D): 15.4 in.
- Hook Throat Opening (Dimension G): 2.2 in.
- Net Weight: 106.0 lbs
