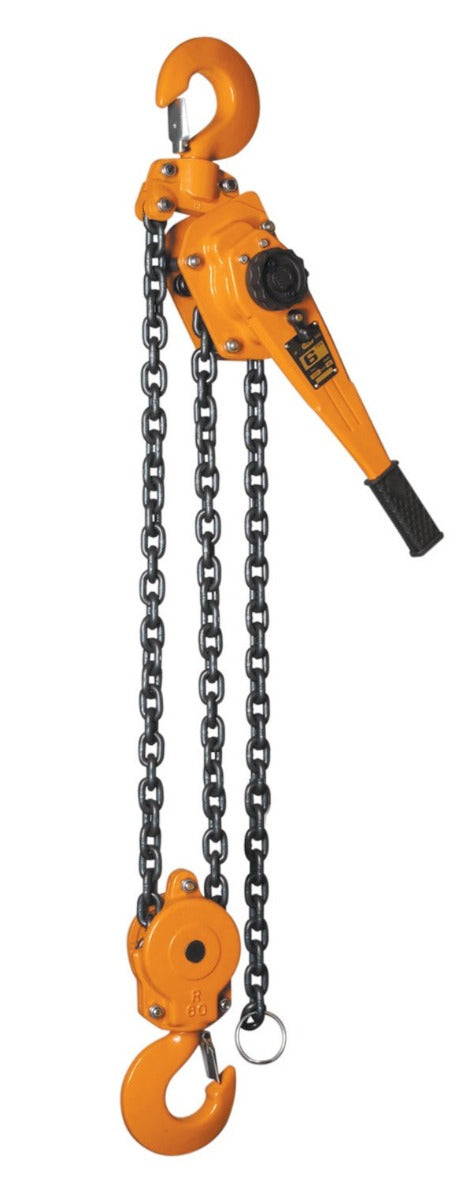

MAGNA Lifting Products 6 Ton Lever Hoist, 20 ft. Lift LH60020

The MAGNA LH60020 is a heavy-duty lever hoist with a 6 Ton (13,200 lbs) capacity and an extended 20-foot lift. It employs a double-fall configuration of Grade 100 alloy chain to handle significant loads safely and efficiently. The hoist is constructed with a rugged steel body that protects the dual-pawl braking system and gearing from impact and debris.

Designed for reliability in all climates, the LH60020 uses low-temperature grease that prevents freezing down to -45°C (-49°F). It is completely repairable, allowing for long-term maintenance and value. The unit is load tested to 150% of its rated capacity, ensuring it meets the rigorous safety demands of heavy construction, mining, and industrial rigging.

Features & Benefits

• Heavy Lifting: Supports 13,200 lbs with a stable 2-fall chain design.
• Extended Reach: 20-foot lift allows for operation in large-scale projects.
• Grade 100 Alloy: Premium load chain provides exceptional strength and durability.
• Arctic Ready: Grease rated for -45°C (-49°F) ensures cold-weather function.
• Fully Repairable: Serviceable design for extended operational life.
• Safety Tested: Proof loaded to 150% of WLL for maximum assurance.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR750 (7.5 Ton Plain Trolley), GTR750 (7.5 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamp)

Specifications

• Model Number: LH60020
• Working Load Limit (WLL): 6 Ton (13,200 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 2
• Pull to Lift Full Load: 83 lbs
• Headroom (Dimension C): 21.65 in.
• Handle Length (Dimension D): 15.35 in.
• Hook Throat Opening (Dimension G): 1.81 in.
• Net Weight: 96.6 lbs
