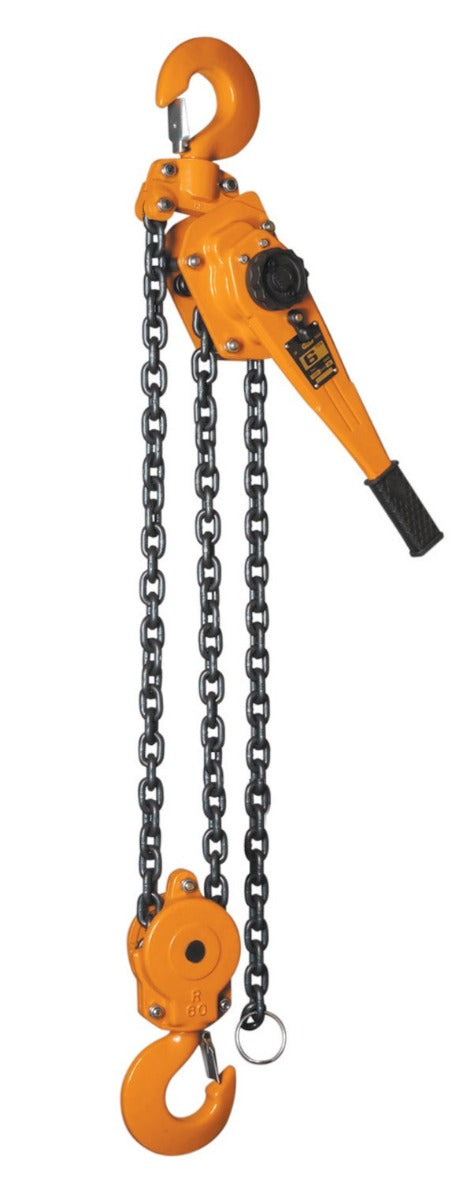

MAGNA Lifting Products 6 Ton Lever Hoist, 15 ft. Lift LH60015

The MAGNA LH60015 is a heavy-duty 6 Ton (13,200 lbs) lever hoist designed for major structural lifting and heavy equipment positioning. It features a 15-foot lift utilizing a double-fall configuration of Grade 100 alloy chain, ensuring maximum strength and stability. The rugged steel housing protects the dual-pawl braking system and gears from external damage, making it ideal for construction sites and mines.

This hoist is built for reliability in all conditions, pre-lubricated with grease that remains effective down to -45°C (-49°F). It features a completely repairable design, allowing maintenance crews to replace worn parts rather than scrapping the unit. Safety is verified through a 150% load test, ensuring the hoist can withstand significant stress. The ergonomic handle and smooth gearing make handling heavy loads manageable for operators.

Features & Benefits

• Massive Capacity: Lifts up to 13,200 lbs using a reliable 2-fall chain system.
• Grade 100 Alloy: Premium load chain provides exceptional strength and durability.
• Field Repairable: Easy access to internal components for maintenance and repair.
• Arctic Ready: Lubricated for performance in temperatures as low as -45°C (-49°F).
• Safety Factor: Load tested to 150% of rated capacity before leaving the factory.
• Positive Braking: Weston-style load brake ensures absolute load control.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR750 (7.5 Ton Plain Trolley), GTR750 (7.5 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamp)

Specifications

• Model Number: LH60015
• Working Load Limit (WLL): 6 Ton (13,200 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 2
• Pull to Lift Full Load: 83 lbs
• Headroom (Dimension C): 21.65 in.
• Handle Length (Dimension D): 15.35 in.
• Hook Throat Opening (Dimension G): 1.81 in.
• Net Weight: 84.6 lbs
