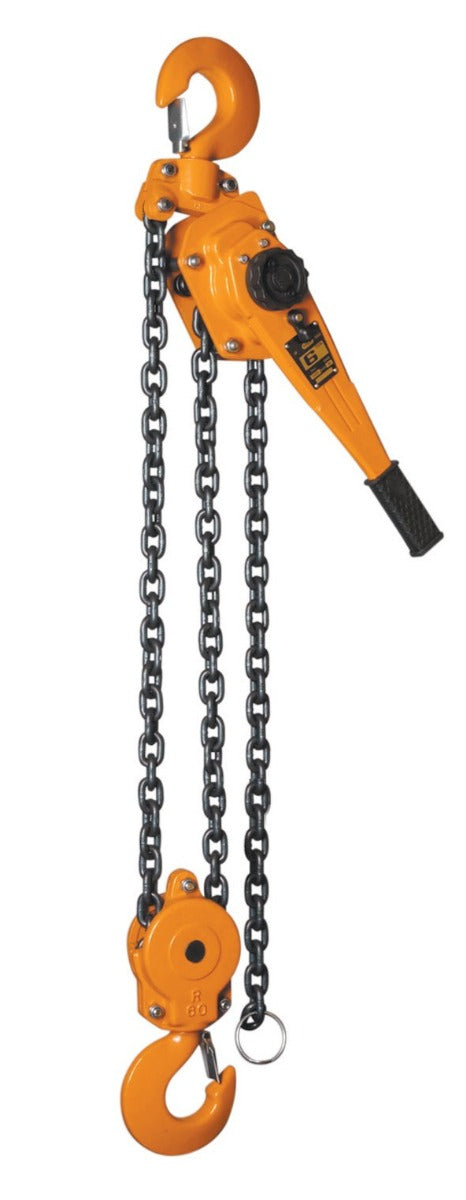

MAGNA Lifting Products 6 Ton Lever Hoist, 5 ft. Lift LH60005

The MAGNA LH60005 6 Ton Lever Hoist is a powerhouse lifting tool engineered for extreme industrial applications where reliability is critical. With a lifting capacity of 13,200 lbs, this hoist utilizes a double-fall configuration of 9.0mm Grade 100 alloy chain to handle massive loads while maintaining a compact form factor. The unit is encased in a heavy-duty steel shell that protects the precision-machined gears and brake mechanism from impact and debris. Despite its massive capacity, the hoist is surprisingly manageable, with a net weight of approximately 60 lbs, allowing for two-person transport and positioning.

Safety features on the LH60005 are extensive. It includes a dual-pawl Weston brake system that provides redundant locking security, essential when suspending heavy machinery or structural steel. The hooks are massive, forged alloy steel components with a 1.8-inch throat opening, designed to open slowly under extreme overload rather than snapping. Tested to 150% of its rated capacity (19,800 lbs) and rated for -45°C operation, this hoist is built for the harshest environments, from arctic oil fields to tropical shipyards.

Features & Benefits

• High Capacity: 6-ton (13,200 lb) WLL ideal for heavy equipment and structural work.
• Grade 100 Chain: Double-fall 9mm alloy chain configuration maximizes strength.
• Redundant Safety: Dual-pawl brake system ensures positive load security.
• 150% Proof Test: Rigorously tested to nearly 10 tons (19,800 lbs) to guarantee performance.
• Durability: All-steel construction with zinc-plated fasteners resists corrosion.
• Serviceable: Fully repairable design with available spare parts extends service life.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR750 (7.5 Ton Plain Trolley), GTR750 (7.5 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamp)

Specifications

• Model Number: LH60005
• Working Load Limit (WLL): 6 Ton (13,200 lbs)
• Standard Lift: 5 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100 Alloy
• Number of Falls: 2
• Pull to Lift Full Load: 83 lbs
• Headroom (Dimension C): 21.7 in.
• Handle Length (Dimension D): 15.4 in.
• Hook Throat Opening (Dimension G): 1.81 in.
• Net Weight: 60.6 lbs
