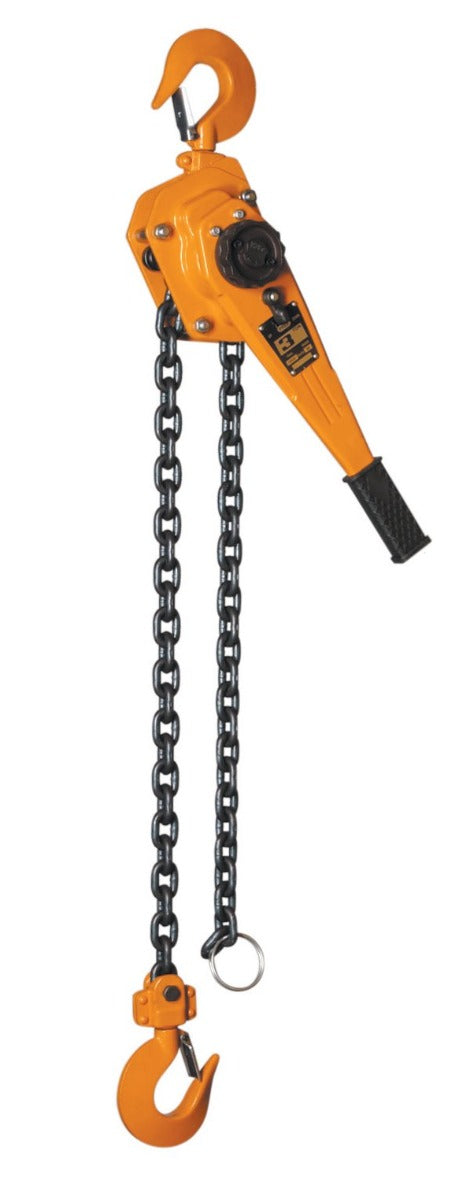

MAGNA Lifting Products 3 Ton Lever Hoist, 20 ft. Lift LH30020

The MAGNA LH30020 offers a substantial 3 Ton (6,600 lbs) lifting capacity with a long 20-foot reach. This heavy-duty lever hoist utilizes a single fall of 9.0mm Grade 100 alloy chain, providing maximum strength for rigging and pulling applications. Its rugged steel housing is designed to withstand harsh industrial environments while allowing for easy maintenance.

The hoist is pre-lubricated with low-temperature grease, ensuring reliable operation in arctic conditions down to -45°C (-49°F). It features a Weston-style load brake for secure holding and a free-chaining mechanism for quick adjustments. Fully repairable and tested to 150% of its rated capacity, the LH30020 is a trusted tool for heavy infrastructure and maintenance projects.

Features & Benefits

• High Capacity: Lifts 6,600 lbs with a single Grade 100 chain fall.
• Long Reach: 20-foot lift capability for versatile heavy rigging.
• Service Friendly: Completely repairable design with accessible components.
• Cold Capable: Works effectively in temperatures as low as -45°C (-49°F).
• Safety Certified: Factory load tested to 150% of capacity.
• Robust Braking: Mechanical brake ensures positive load control.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR300 (3 Ton Plain Trolley), GTR300 (3 Ton Geared Trolley), BC300P/BC300RE (3 Ton Beam Clamp), ULBC300F/S (3 Ton Universal Clamp)

Specifications

• Model Number: LH30020
• Working Load Limit (WLL): 3 Ton (6,600 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 1
• Pull to Lift Full Load: 81 lbs
• Headroom (Dimension C): 17.72 in.
• Handle Length (Dimension D): 15.35 in.
• Hook Throat Opening (Dimension G): 1.53 in.
• Net Weight: 54.1 lbs
