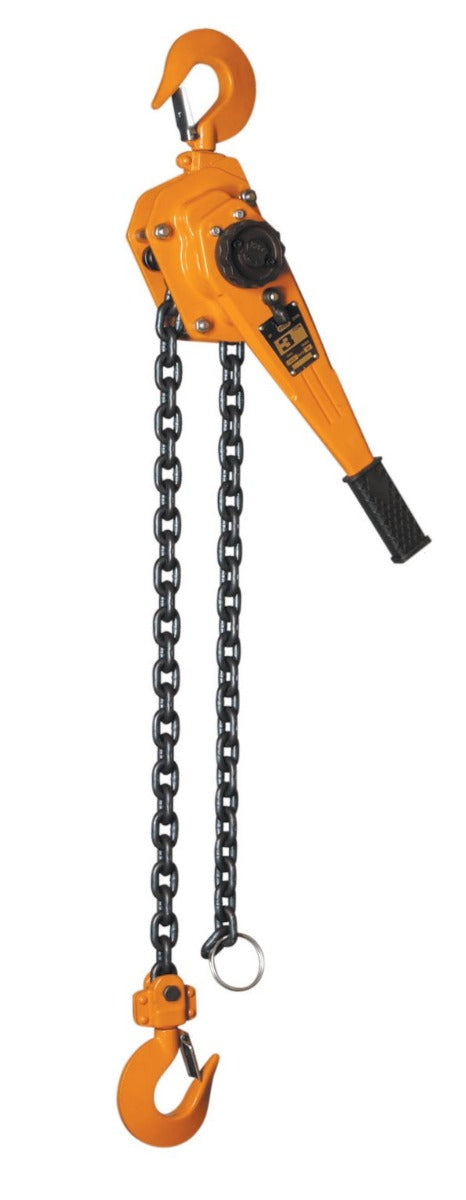

MAGNA Lifting Products 3 Ton Lever Hoist, 15 ft. Lift LH30015

The MAGNA LH30015 delivers substantial lifting power with a 3 Ton (6,600 lbs) working load limit and a 15-foot reach. Uniquely, this model utilizes a single fall of heavy-duty 9.0mm Grade 100 alloy chain. This single-fall design eliminates the risk of chain twisting common in multi-fall hoists and allows for faster operation. It is an essential tool for heavy equipment repair, mining, and industrial rigging.

Designed for longevity, the hoist features a rugged steel body that is completely repairable. It includes a Weston-style load brake for secure holding and a free-chaining mode for quick adjustments. Like all Magna LH series hoists, it is load tested to 150% of its capacity (9,900 lbs) and is lubricated with low-temperature grease, making it suitable for outdoor use in climates ranging from temperate to arctic (-45°C / -49°F).

Features & Benefits

• Single Fall Design: 3-ton capacity on a single chain reduces complexity and friction.
• Grade 100 Chain: Uses high-tensile 9.0mm alloy chain for maximum durability.
• Serviceable Design: Fully repairable architecture extends equipment life.
• Cold Weather Grease: Rated for functionality down to -45°C (-49°F).
• Rigorous Testing: Factory tested to 150% of WLL for safety assurance.
• Secure Braking: Reliable Weston-style brake mechanism prevents load slip.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR300 (3 Ton Plain Trolley), GTR300 (3 Ton Geared Trolley), BC300P/BC300RE (3 Ton Beam Clamp), ULBC300F/S (3 Ton Universal Clamp)

Specifications

• Model Number: LH30015
• Working Load Limit (WLL): 3 Ton (6,600 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 1
• Pull to Lift Full Load: 81 lbs
• Headroom (Dimension C): 17.72 in.
• Handle Length (Dimension D): 15.35 in.
• Hook Throat Opening (Dimension G): 1.53 in.
• Net Weight: 48.1 lbs
