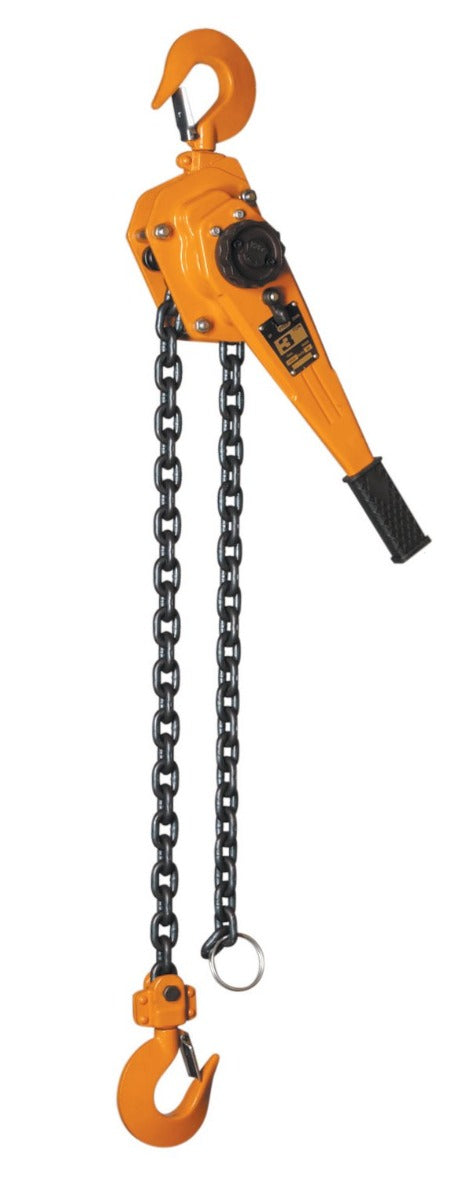

MAGNA Lifting Products 3 Ton Lever Hoist, 10 ft. Lift LH30010

The MAGNA LH30010 3 Ton Lever Hoist is engineered for heavy lifting applications where a 10-foot reach is required. Utilizing a single fall of 9.0mm Grade 100 chain, this hoist eliminates the weight and snagging issues associated with double-chain 3-ton units. This makes it easier to rig and operate, especially in elevated or difficult-to-access locations. With a 6,600 lb capacity, it is a go-to tool for bridge maintenance, heavy equipment repair, and industrial construction.

The hoist features a rugged steel body designed to withstand impact and rough handling. Its Weston-style brake ensures positive load holding, while the free-chaining mechanism allows for quick adjustment. The LH30010 is individually load tested to 150% of capacity (9,900 lbs) and is rated for operation in temperatures as low as -45°C, making it a reliable choice for any jobsite condition.

Features & Benefits

• Single Fall Design: 3-ton capacity on one chain for easy rigging.
• 10-Foot Lift: Ideal for long-reach heavy lifting.
• Grade 100 Chain: Premium alloy chain reduces weight.
• 150% Proof Test: Tested to 9,900 lbs.
• Rugged Build: Steel housing protects internal components.
• Cold Weather Spec: Grease rated for -45°C operation.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR300 (3 Ton Plain Trolley), GTR300 (3 Ton Geared Trolley), BC300P/BC300RE (3 Ton Beam Clamp), ULBC300F/S (3 Ton Universal Clamp)

Specifications

• Model Number: LH30010
• Working Load Limit (WLL): 3 Ton (6,600 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 81 lbs
• Headroom (Dimension C): 17.7 in.
• Handle Length (Dimension D): 15.4 in.
• Hook Throat Opening (Dimension G): 1.53 in.
• Net Weight: 43.5 lbs
