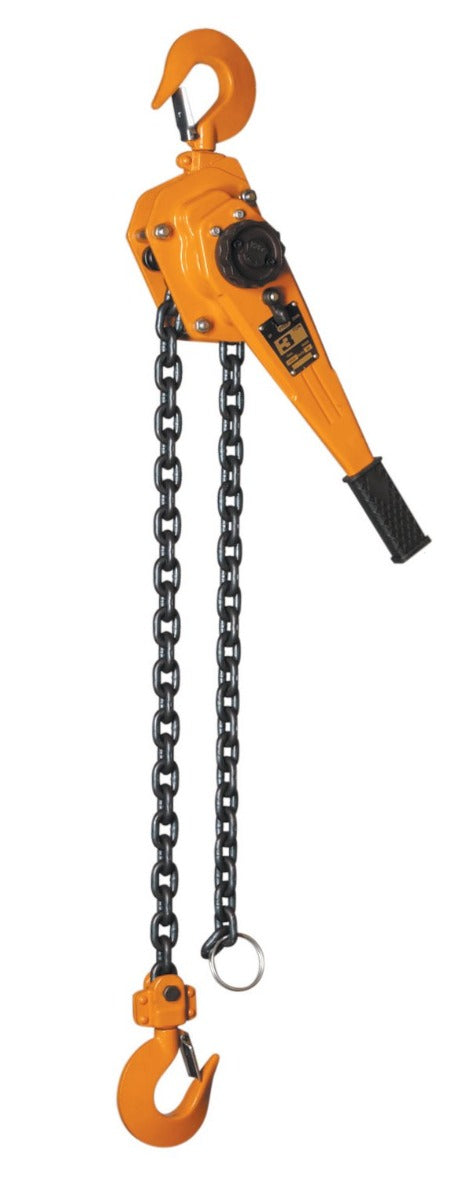

MAGNA Lifting Products 3 Ton Lever Hoist, 5 ft. Lift LH30005

The MAGNA LH30005 3 Ton Lever Hoist is designed for heavy-duty structural and mechanical lifting, offering a substantial 6,600 lb working load limit. A defining feature of this model is its "single fall" design; utilizing a robust 9.0mm Grade 100 alloy chain, it achieves its 3-ton capacity on a single strand. This eliminates the complexity, weight, and potential for chain twisting associated with double-fall competitors. The result is a hoist that is lighter (approx. 37 lbs), smoother to operate, and easier to rig in difficult positions. The body is constructed from heavy-gauge steel, capable of withstanding the rough handling typical of mining, shipyard, and bridge construction sites.

Operators benefit from the smooth action of the machined gear train, which keeps the handle pull force at a reasonable 81 lbs despite the high load. The hooks are forged from alloy steel and feature wide 1.53-inch throat openings to accommodate larger slings and shackles. As with all MAGNA LH hoists, it is load tested to 150% of capacity (9,900 lbs) and is factory-lubricated for operation down to -45°C. Fully serviceable and supported by replacement parts, the LH30005 is a long-term investment in rigging safety.

Features & Benefits

• Single Fall Design: 3-ton capacity on a single chain strand prevents twisting and reduces overall weight.
• Grade 100 Chain: Premium 9mm alloy chain provides superior strength-to-weight performance.
• Heavy-Duty Brake: Weston-style brake with dual pawls ensures secure load holding under max tension.
• 150% Proof Test: Individually tested to 9,900 lbs before shipping for verified safety.
• Cold Weather Ready: Specialized grease ensures reliable operation in temperatures down to -45°C.
• Repairable: Easy access to internal components allows for inspection and maintenance.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR300 (3 Ton Plain Trolley), GTR300 (3 Ton Geared Trolley), BC300P/BC300RE (3 Ton Beam Clamp), ULBC300F/S (3 Ton Universal Clamp)

Specifications

• Model Number: LH30005
• Working Load Limit (WLL): 3 Ton (6,600 lbs)
• Standard Lift: 5 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 81 lbs
• Headroom (Dimension C): 17.7 in.
• Handle Length (Dimension D): 15.4 in.
• Hook Throat Opening (Dimension G): 1.53 in.
• Net Weight: 37.5 lbs
