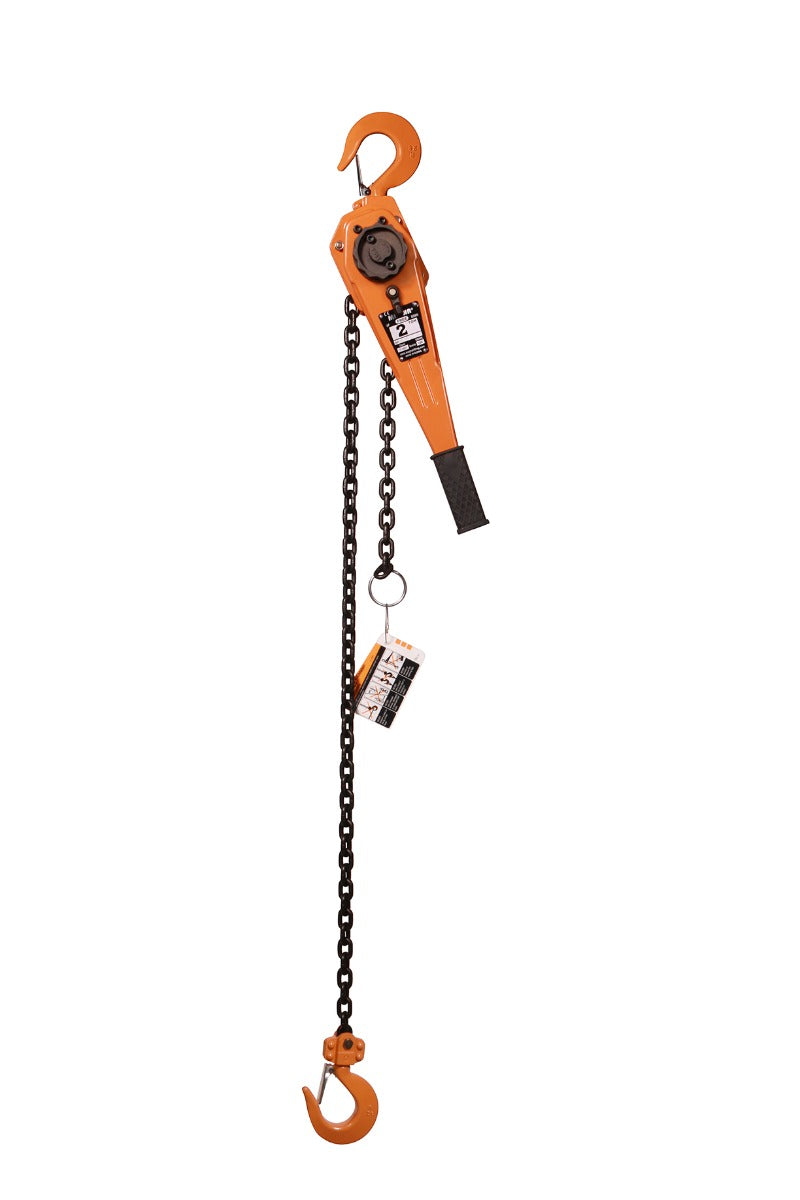

MAGNA Lifting Products 2 Ton Lever Hoist, 20 ft. Lift LH20020

The MAGNA LH20020 provides a robust 2 Ton (4,400 lbs) capacity with an extended 20-foot lift, making it ideal for heavy construction and structural steel work. This model utilizes premium Grade 100 alloy steel load chain, which offers exceptional strength while keeping the unit weight manageable. The hoist is built with a durable, impact-resistant steel frame.

Designed for easy maintenance, the LH20020 is completely repairable with readily available parts. It features a Weston-style mechanical load brake for precise control and is factory lubricated with low-temperature grease for operation down to -45°C (-49°F). Load tested to 150% of its rated capacity, this hoist ensures safety and reliability in the toughest working conditions.

Features & Benefits

• Grade 100 Chain: High-tensile alloy chain provides superior strength-to-weight ratio.
• Extended Lift: 20-foot reach allows for deep or high lifting applications.
• Field Repairable: Bolted construction permits full servicing and repair.
• All-Weather: Functional in extreme cold temperatures down to -45°C (-49°F).
• Safety Assured: Proof tested to 150% of WLL (6,600 lbs).
• Secure Braking: Mechanical load brake holds heavy loads safely.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)

Specifications

• Model Number: LH20020
• Working Load Limit (WLL): 2 Ton (4,400 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 1
• Pull to Lift Full Load: 63 lbs
• Headroom (Dimension C): 13.00 in.
• Handle Length (Dimension D): 15.35 in.
• Hook Throat Opening (Dimension G): 1.30 in.
• Net Weight: 34.1 lbs
