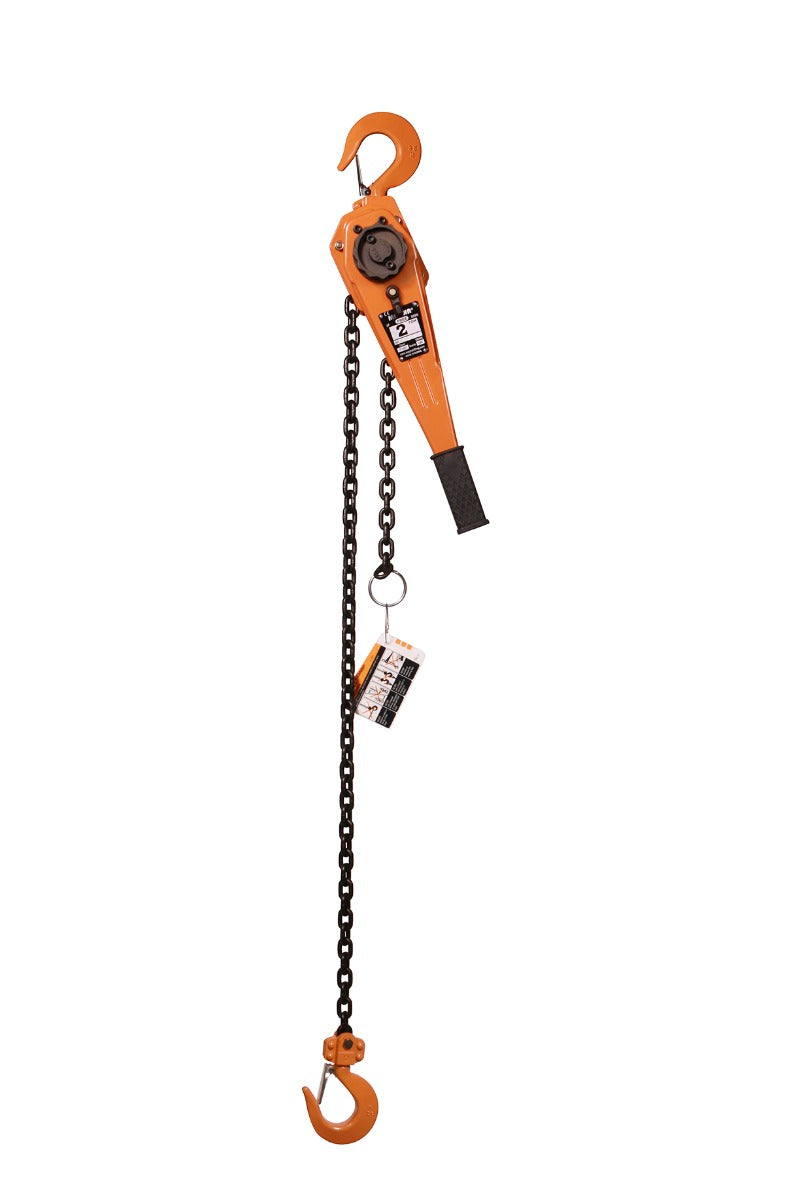

MAGNA Lifting Products 2 Ton Lever Hoist, 10 ft. Lift LH20010

The MAGNA LH20010 2 Ton Lever Hoist is an advanced rigging tool that leverages Grade 100 alloy chain to deliver 4,400 lbs of lifting capacity in a lightweight package. With 10 feet of lift, this hoist is perfectly suited for securing loads on transport vehicles, installing heavy machinery, and structural steel alignment. The use of Grade 100 chain allows the unit to remain compact and light (under 28 lbs) while offering superior strength compared to older Grade 80 designs.

The LH20010 features a full-length ergonomic handle that requires only 63 lbs of pull force to lift the max load. Its Weston-style brake employs dual pawls for redundant safety, ensuring the load is held securely during operation. Tested to 150% of its rated capacity (6,600 lbs) and designed for extreme cold (-45°C), this hoist provides the reliability and performance demanded by professional riggers.

Features & Benefits

• Grade 100 Chain: High-strength alloy for superior performance and reduced weight.
• 10-Foot Lift: Extended reach for varied applications.
• Lightweight: High capacity with low carry weight (~28 lbs).
• 150% Proof Test: Tested to 6,600 lbs for safety.
• Dual Pawl Brake: Redundant locking mechanism for security.
• Cold Weather Ready: Operates in temperatures down to -45°C.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)

Specifications

• Model Number: LH20010
• Working Load Limit (WLL): 2 Ton (4,400 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 100 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 63 lbs
• Headroom (Dimension C): 13.0 in.
• Handle Length (Dimension D): 15.4 in.
• Hook Throat Opening (Dimension G): 1.3 in.
• Net Weight: 27.7 lbs
