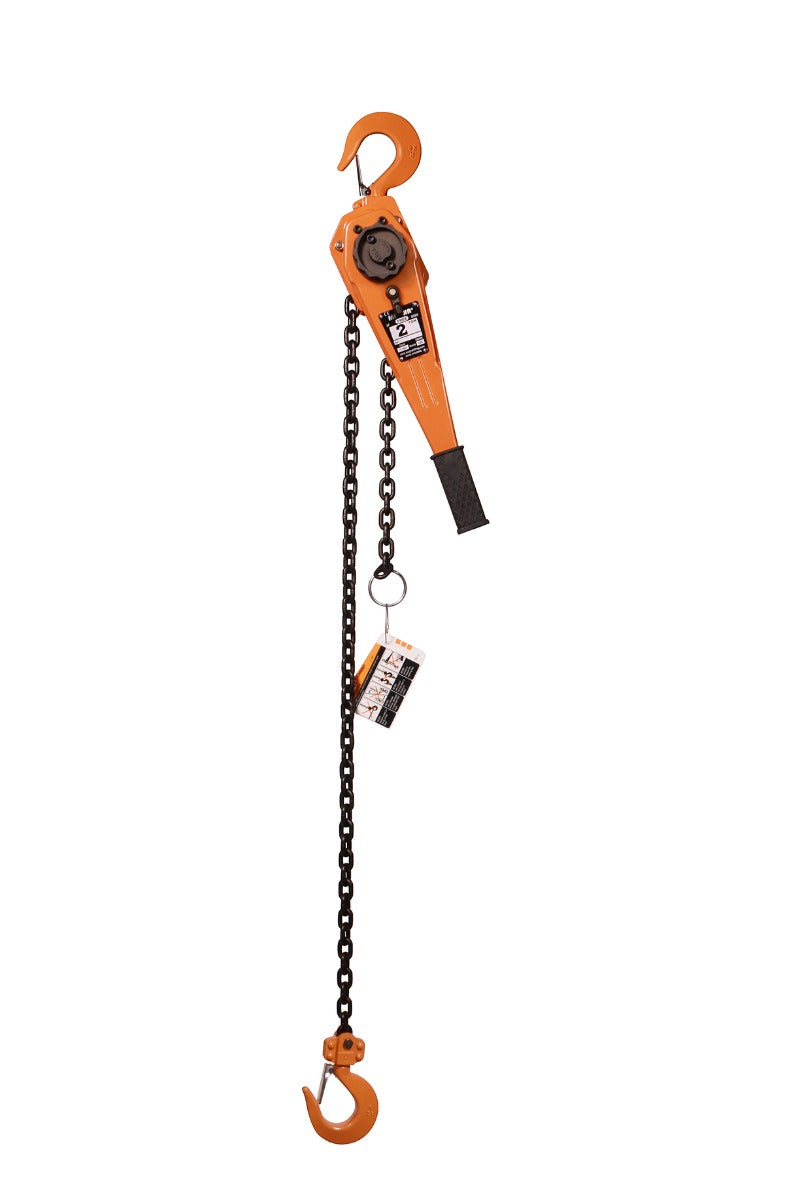

MAGNA Lifting Products 2 Ton Lever Hoist, 5 ft. Lift LH20005

The MAGNA LH20005 2 Ton Lever Hoist marks the transition into MAGNA's heavy-duty industrial line, distinguished by its use of premium Grade 100 alloy chain. By upgrading to Grade 100, MAGNA achieves a 2-ton (4,400 lb) capacity using the same 7.1mm chain diameter found on the 1.5-ton model. This engineering choice maintains a low unit weight (approximately 24 lbs) while providing a 33% increase in lifting capability. This high strength-to-weight ratio makes the LH20005 an exceptional tool for riggers who need to maximize lifting potential without hauling excessive equipment weight.

The hoist features a full-length 15.4-inch ergonomic handle with a non-slip rubber grip, allowing operators to lift the full 2-ton load with only 63 lbs of handle force. It is equipped with a dual-pawl Weston brake system for redundant safety and precise load control. The all-steel body is designed to withstand the harsh conditions of heavy construction and manufacturing. Tested to 150% of its rated capacity (6,600 lbs) and operational in extreme cold (-45°C), the LH20005 provides the reliability required for critical lifts.

Features & Benefits

• Grade 100 Chain Technology: High-tensile alloy allows for 2-ton capacity without increasing chain size or weight.
• Lightweight Powerhouse: Weighs only ~24 lbs while lifting 4,400 lbs, ideal for mobile crews.
• Redundant Safety: Dual-pawl Weston brake system ensures positive load holding at all times.
• 150% Proof Test: Individually tested to 6,600 lbs for a massive safety margin.
• Ergonomic Operation: Rubber grip handle and efficient gearing reduce operator fatigue (63 lbs pull).
• Durability: Impact-resistant steel housing and zinc-plated fasteners resist corrosion and damage.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)

Specifications

• Model Number: LH20005
• Working Load Limit (WLL): 2 Ton (4,400 lbs)
• Standard Lift: 5 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 100 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 63 lbs
• Headroom (Dimension C): 13.0 in.
• Handle Length (Dimension D): 15.4 in.
• Hook Throat Opening (Dimension G): 1.3 in.
• Net Weight: 24.0 lbs
