MAGNA Lifting Products 1.5 Ton Compact Lever Hoist, 20 ft. Lift LH15020C

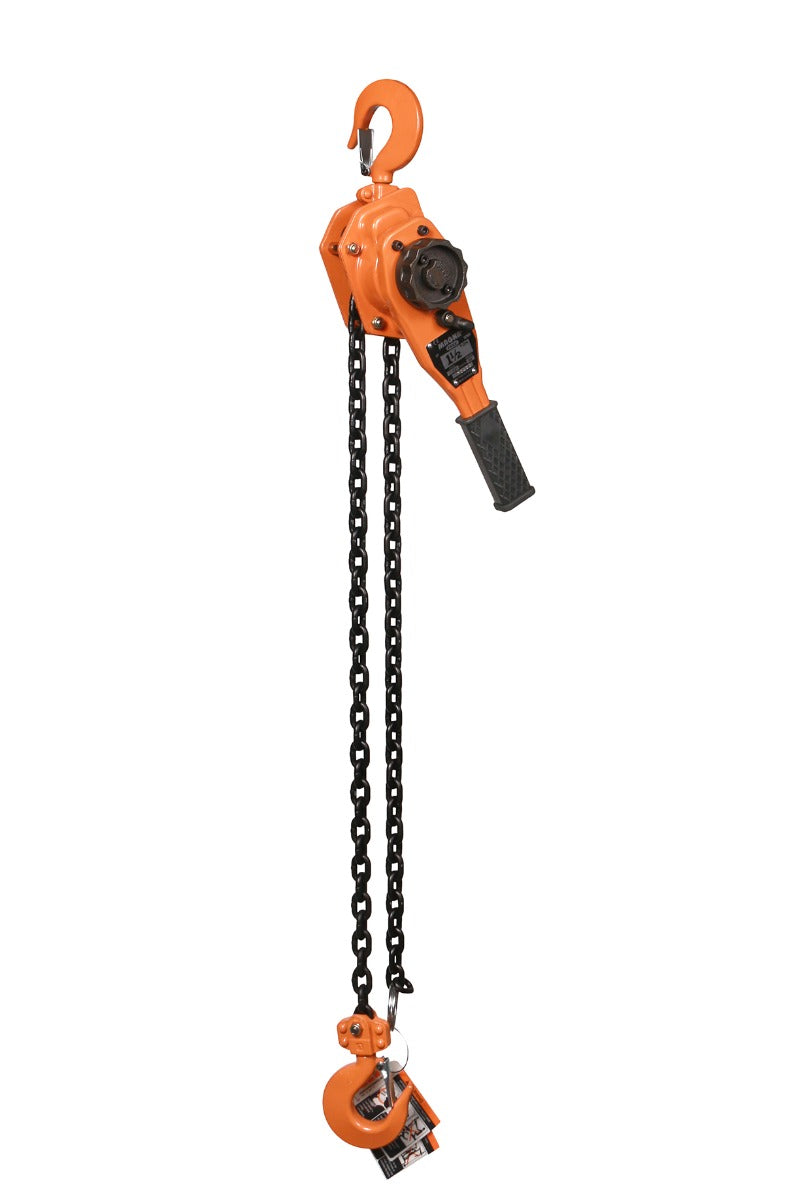

The MAGNA LH15020C "Compact" lever hoist provides 1.5 Ton (3,300 lbs) of lifting power with an extended 20-foot reach, all within a space-saving design. It features a significantly shorter handle (11.02 inches) compared to the standard model, making it ideal for use in tight quarters where leverage is limited. The hoist maintains the high durability standards of the LH series with a robust steel housing.

Equipped with Grade 80 load chain, this compact unit is fully repairable and easy to maintain. It is lubricated with low-temperature grease for operation down to -45°C (-49°F) and includes a reliable Weston-style load brake. Like all Magna hoists, it is load tested to 150% of its capacity, offering a safe and efficient solution for restricted-access lifting.

Features & Benefits

• Compact Handle: Short lever allows operation in tight, confined spaces.
• Long Reach: 20-foot lift capability for extended rigging needs.
• Full Capacity: Delivers same 1.5 Ton strength as larger models.
• Cold Resistant: Operates efficiently in temperatures as low as -45°C (-49°F).
• Repairable: Easy maintenance design extends tool life.
• Safety Verified: Factory tested to 150% of rated capacity.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)

Specifications

• Model Number: LH15020C
• Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 84 lbs
• Headroom (Dimension C): 13.00 in.
• Handle Length (Dimension D): 11.02 in.
• Hook Throat Opening (Dimension G): 1.30 in.
• Net Weight: 32.1 lbs
