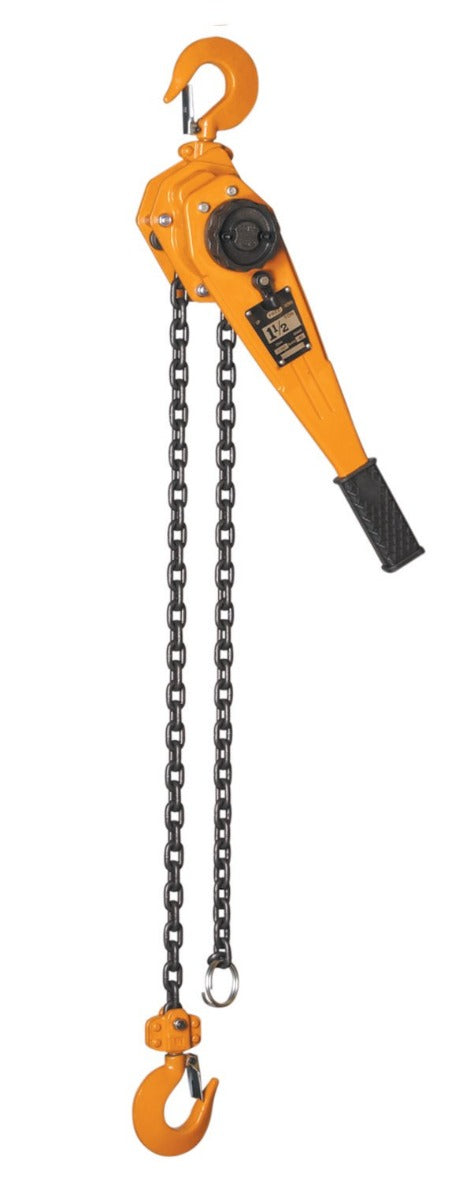

MAGNA Lifting Products 1.5 Ton Lever Hoist, 20 ft. Lift LH15020

The MAGNA LH15020 offers a versatile 1.5 Ton (3,300 lbs) capacity combined with a long 20-foot lift, perfect for general rigging and construction tasks. It features a rugged steel body and uses a single fall of Grade 80 alloy load chain for smooth operation. The hoist is designed to be fully repairable, ensuring that maintenance is straightforward and cost-effective.

This unit is ready for extreme environments, pre-lubricated with grease that functions down to -45°C (-49°F). It includes a Weston-style load brake for positive load control and a free-chaining function for rapid slack removal. Tested to 150% of its rated capacity, the LH15020 provides a high safety margin and reliable performance for heavy-duty lifting requirements.

Features & Benefits

• Extended Lift: 20-foot chain allows for operation in high or deep work zones.
• Repairable Design: Complete access to internal parts for easy servicing.
• Cold Weather Use: Grease rated for -45°C (-49°F) ensures reliability in winter.
• Certified Safety: Proof loaded to 150% of capacity (4,950 lbs).
• Durable Build: Steel housing and Grade 80 chain resist impact and wear.
• Secure Braking: Mechanical load brake holds loads firmly in place.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)

Specifications

• Model Number: LH15020
• Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 63 lbs
• Headroom (Dimension C): 13.00 in.
• Handle Length (Dimension D): 15.35 in.
• Hook Throat Opening (Dimension G): 1.30 in.
• Net Weight: 33.1 lbs
