MAGNA Lifting Products 1.5 Ton Compact Lever Hoist, 15 ft. Lift LH15015C
MAGNA Lifting Products 1.5 Ton Compact Lever Hoist, 15 ft. Lift LH15015C

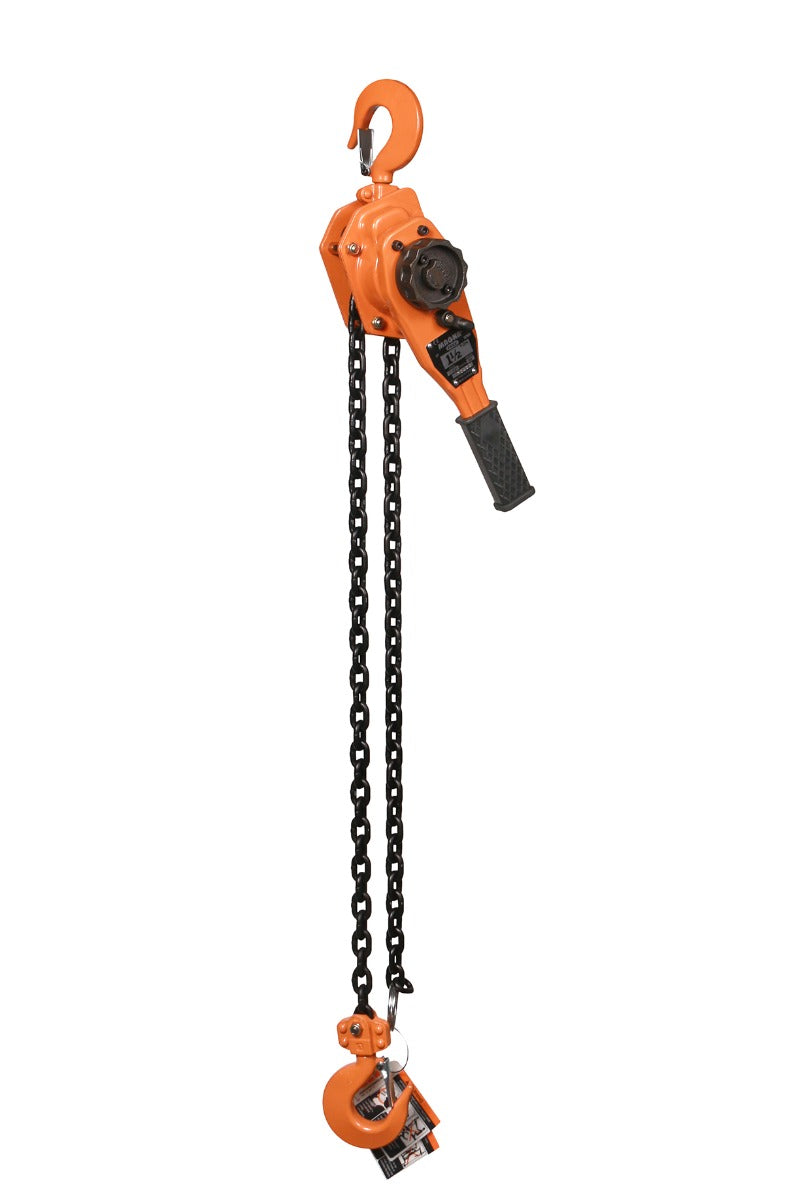

MAGNA 1.5 Ton Compact Lever Hoist, 15 ft. Lift LH15015C
The MAGNA LH15015C "Compact" Lever Hoist is a specialized tool engineered for confined space rigging. It delivers the same 1.5 Ton (3,300 lbs) lifting capacity as the standard model but features a significantly shorter handle (11.02 inches). This design modification allows the operator to rotate the handle fully in cramped environments, such as ship compartments, crawl spaces, or between close-set machinery, where a standard handle would be obstructed.
Despite its reduced profile, the LH15015C makes no compromises on durability or safety. It utilizes the same rugged steel housing and Grade 80 load chain as the standard version. It is fully repairable, load tested to 150% of capacity, and lubricated with low-temperature grease for operation down to -45°C (-49°F). This hoist provides a critical solution for riggers who need heavy lifting power in places with limited clearance.
Features & Benefits
- Compact Handle: Short 11.02-inch lever enables operation in restricted spaces.
- Full Capacity: Delivers 3,300 lbs of lift despite the smaller footprint.
- All-Weather: Grease rated for -45°C (-49°F) ensures reliability in extreme cold.
- Field Serviceable: Easy access design allows for onsite maintenance and repair.
- Safety Certified: Meets ANSI/ASME standards and is factory proof tested to 150%.
- Durable Build: All-steel construction resists impact and wear in industrial settings.
Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)
Specifications
- Model Number: LH15015C
- Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
- Standard Lift: 15 ft.
- Load Chain Dimensions: 7.1 x 21.0 mm
- Load Chain Grade: Grade 80
- Number of Falls: 1
- Pull to Lift Full Load: 84 lbs
- Headroom (Dimension C): 13.00 in.
- Handle Length (Dimension D): 11.02 in.
- Hook Throat Opening (Dimension G): 1.30 in.
- Net Weight: 28.4 lbs
